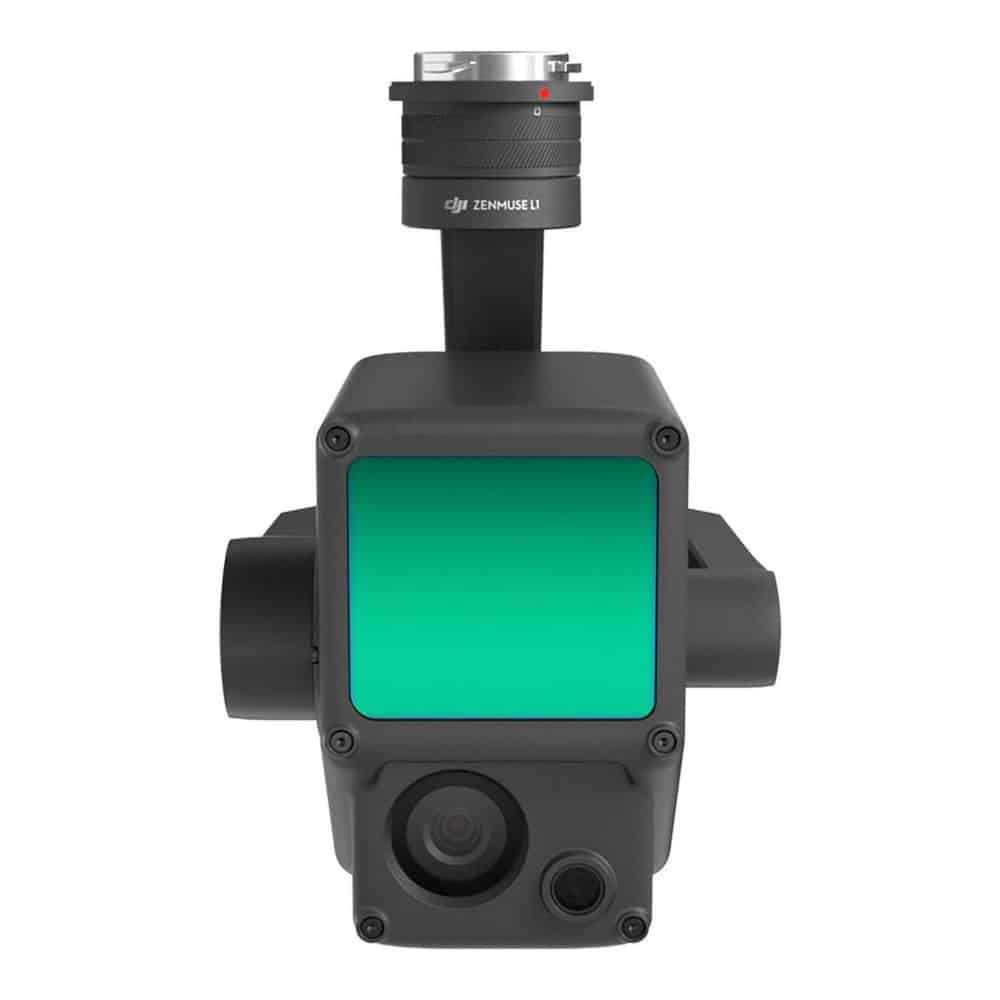

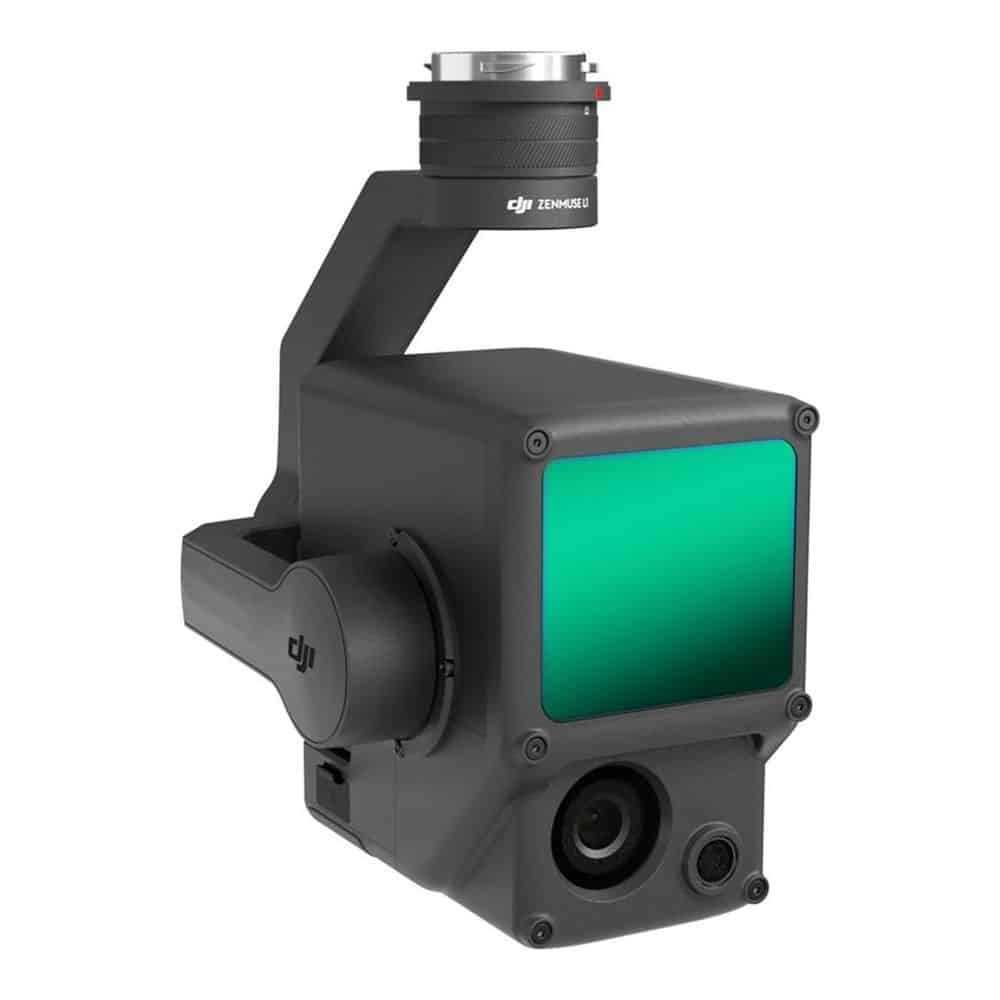

DJI Zenmuse L1 Lidar and RGB Module, 20MP,f/2.8 - f/11, 1 In. Sensor, IP54 is a product engineered with precision, delivering exceptional performance
with features like integrates a Lidar module an RGB camera and a highaccuracy IMU, generate truecolor point cloud models in realtime or acquire 2 sqkm of point cloud data in a single flight using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1inch sensor and render centimeteraccurate reconstructions thanks to the highaccuracy IMU a vision sensor for positioning accuracy and the incorporation of GNSS data.
Maintive brings to you 100% genuine Drones Cameras And Accessories from DJI at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order Zenmuse L1 Lidar and RGB Module, 20MP,f/2.8 - f/11, 1 In. Sensor, IP54 today at the best price only from Maintive.
Features
Integrates a Lidar module, an RGB camera, and a high-accuracy IMU
Generate true-color point cloud models in real-time, or acquire 2 sq.km of point cloud data in a single flight using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor
Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.
The IP54 rating allows the L1 to be operated in rainy or foggy environments.
The Lidar module’s active scanning method enables you to fly at night.
Items Included
1x Gimbal and Camera
1x MicroSD card (64GB)
1x Storage Case
1x Lens Cleaning Cloth
1x DJI Terra Activation Code
Specifications
Detection Range (0 klx)450 m @ 80% reflectivity
Detection Range (100 klx)190 m @ 10% reflectivity
Single return Point Rate240,000 pts/s
Multiple return Point Rate480,000 pts/s
Lidar Ranging Accuracy3 cm @ 100 m
Lidar Maximum Returns3
Lidar FOV70.4°x77.2°
RGB Mapping Sensor Size1 In
RGB Mapping Sensor Pixels20 MP
Focal Length8.8 mm / 24 mm
Aperture Rangef/2.8 - f/11
Mechanical Shutter Speed1/2000 - 8s
Warranty1 year manufacturer's warranty
Detection Range (0 klx)450 m @ 80% reflectivity
Detection Range (100 klx)190 m @ 10% reflectivity
Single return Point Rate240,000 pts/s
Multiple return Point Rate480,000 pts/s
Lidar Ranging Accuracy3 cm @ 100 m
Lidar Maximum Returns3
Lidar FOV70.4°x77.2°
RGB Mapping Sensor Size1 In
RGB Mapping Sensor Pixels20 MP
Focal Length8.8 mm / 24 mm
Aperture Rangef/2.8 - f/11
Mechanical Shutter Speed1/2000 - 8s
Warranty1 year manufacturer's warranty
