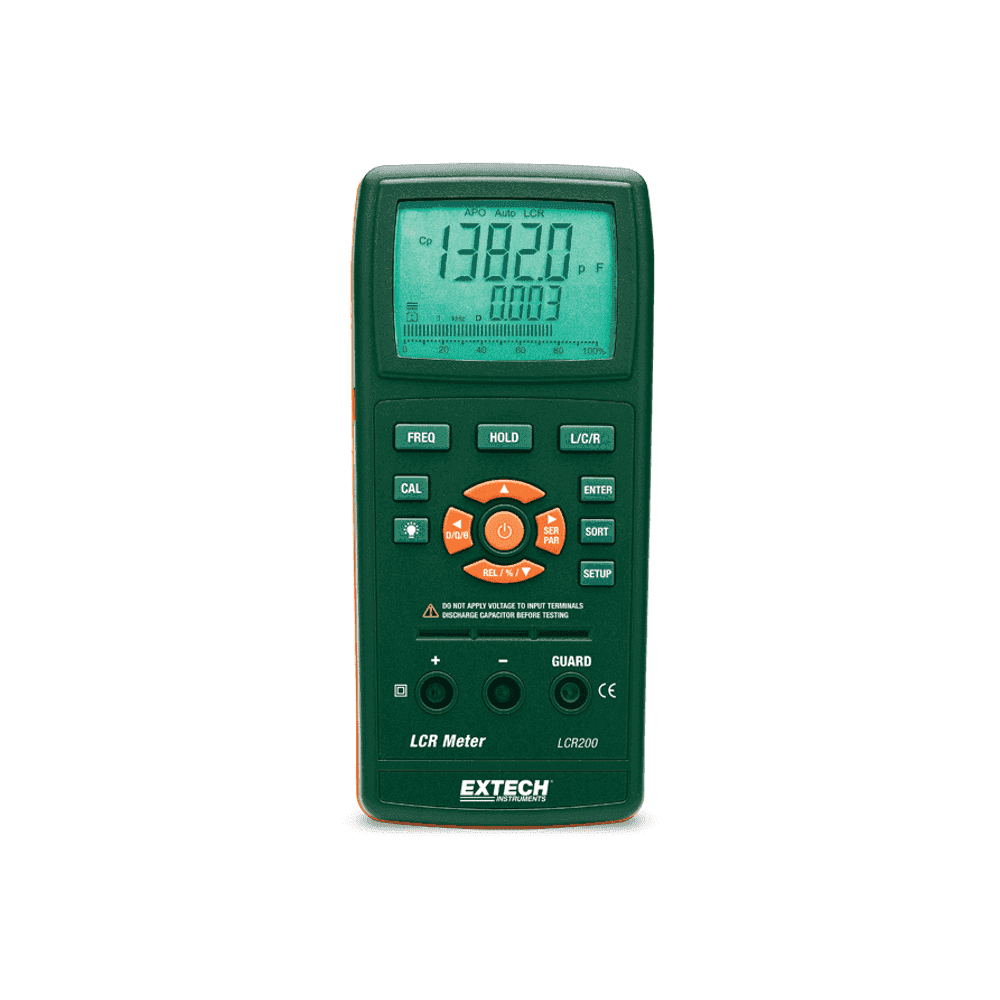

Extech LCR200 Passive Component LCR Meter - 100Hz to 100KHz is a product engineered with precision, delivering exceptional performance
with features like simultaneous 200002000 count backlit display of the primary parameter L C or R with the secondary parameter of Q quality D dissipation R resistance θphase or ESR equivalent series resistance, auto Select measurement function with 1kHz default test frequency and five test frequencies.
Maintive brings to you 100% genuine LCR Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order LCR200 Passive Component LCR Meter - 100Hz to 100KHz today at the best price only from Maintive.
Features
Simultaneous 20,000/2,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter of Q (quality), D (dissipation) R (resistance), θ(phase), or ESR (equivalent series resistance)
Auto Select measurement function with 1kHz default test frequency
Five test frequencies
Set Hi/Lo limits using absolute values or percentage limits
Relative mode function
Parallel or Series equivalent circuit
Auto power off with disable
Low battery and overrange indicators
Built-in test fixture or use external test leads
Open and Short calibration removes unwanted stray impedances from the measurement
