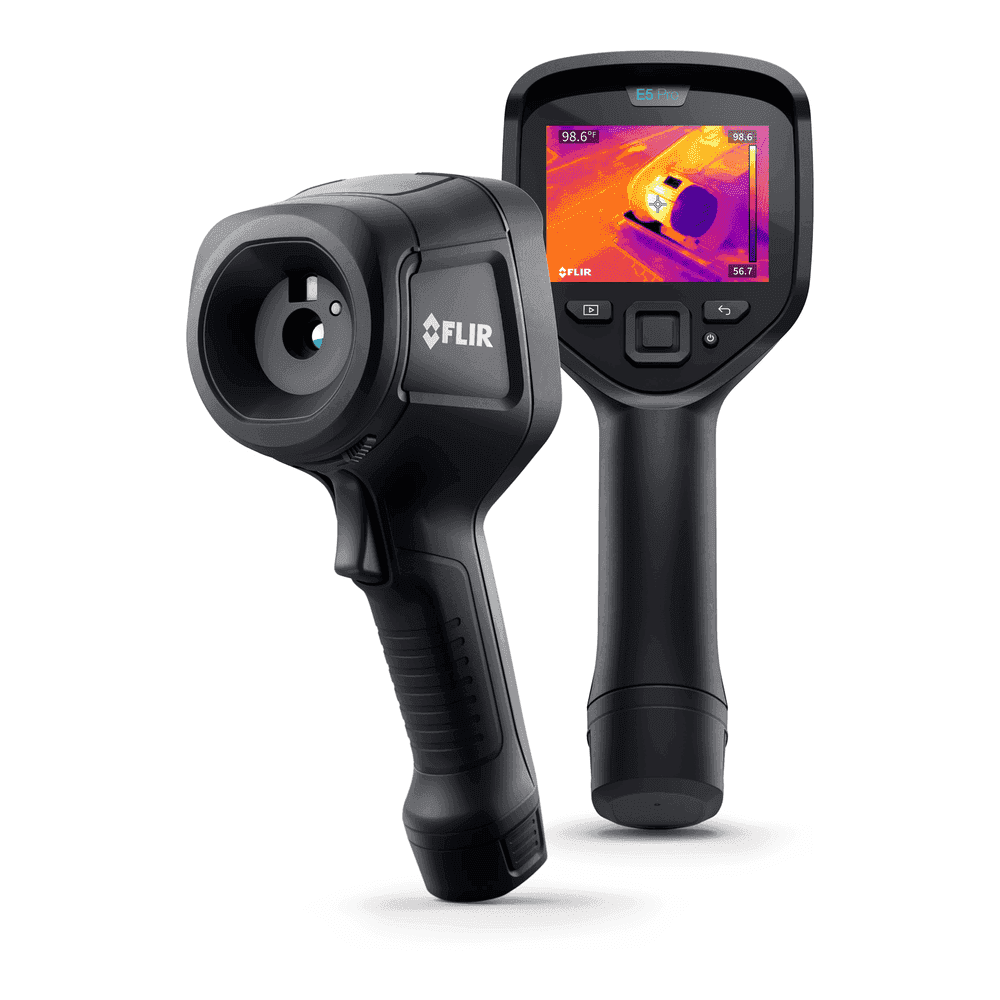

Flir 13301-0101 E5 Pro 9 Hz Thermal Imaging Camera, 160 x 120p IR, -20 to 400°C is a product engineered with precision, delivering exceptional performance
with features like rugged Reliable Compact Take the pocketportable C5 with you to every job it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop, identify Problems Fast FLIRpatented MSX® MultiSpectral Dynamic Imaging enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located and hassleFree Sharing And Reporting Share images instantly and create quick reports in FLIR Ignite or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.
Maintive brings to you 100% genuine Thermal Cameras from Flir at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 13301-0101 E5 Pro 9 Hz Thermal Imaging Camera, 160 x 120p IR, -20 to 400°C today at the best price only from Maintive.
Features
Rugged, Reliable, Compact - Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
Identify Problems Fast - FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
Hassle-Free Sharing And Reporting - Share images instantly and create quick reports in FLIR Ignite, or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.

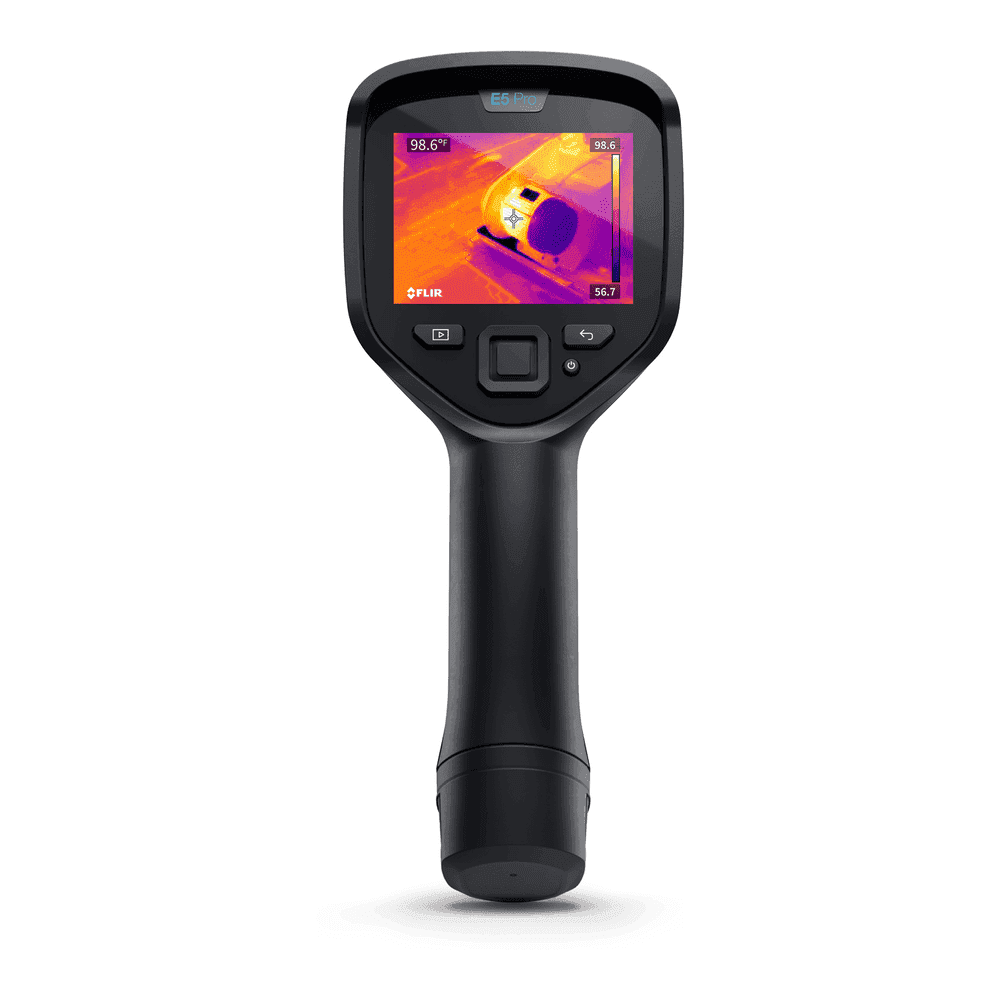

Featuring a 3.5-inch, 640 × 480 touchscreen, the E5 Pro simplifies your workflow.
You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device.
Specifications
IR Resolution160 × 120 (19,200 pixels)
Thermal Sensitivity/NETD<0.06°C (0.11°F) / <60 mK at 30°C (86°F)
Accuracy±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)33° × 25°
Digital Camera5 MP
Image ModesThermal MSX, Thermal, Picture-in-Picture, Digital camera
Object Temperature Range-20°C to 400°C (-4°F to 752°F) in two ranges
Spot MeterCenter spot; box with min./max.
TextText annotation on image using onscreen keyboard
TouchscreenCapacitive touch
Battery operating time4 hours
Battery typeRechargeable Lithium ion battery
Charging systemBattery is charged inside the camera or in specific charger.
Charging Time2 hours
Power ManagementAutomatic shut-down
CertificationsUL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
Drop test2 m (6.6 ft)
EMCEN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
EncapsulationIP54 (IEC 60529)
Humidity (Operating and Storage)IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range-15°C to 50°C (5°F to 122°F)
Shock25 g (IEC 60068-2-27)
Storage Temperature Range-40°C to 70°C (-40°F to 158°F)
Vibration2 g (IEC 60068-2-6)
FlashlightBright LED
List of ContentsInfrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation
Warranty1 year manufacturer's warranty
IR Resolution160 × 120 (19,200 pixels)
Thermal Sensitivity/NETD<0.06°C (0.11°F) / <60 mK at 30°C (86°F)
Accuracy±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view (FOV)33° × 25°
Digital Camera5 MP
Image ModesThermal MSX, Thermal, Picture-in-Picture, Digital camera
Object Temperature Range-20°C to 400°C (-4°F to 752°F) in two ranges
Spot MeterCenter spot; box with min./max.
TextText annotation on image using onscreen keyboard
TouchscreenCapacitive touch
Battery operating time4 hours
Battery typeRechargeable Lithium ion battery
Charging systemBattery is charged inside the camera or in specific charger.
Charging Time2 hours
Power ManagementAutomatic shut-down
CertificationsUL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
Drop test2 m (6.6 ft)
EMCEN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
EncapsulationIP54 (IEC 60529)
Humidity (Operating and Storage)IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range-15°C to 50°C (5°F to 122°F)
Shock25 g (IEC 60068-2-27)
Storage Temperature Range-40°C to 70°C (-40°F to 158°F)
Vibration2 g (IEC 60068-2-6)
FlashlightBright LED
List of ContentsInfrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation
Warranty1 year manufacturer's warranty
