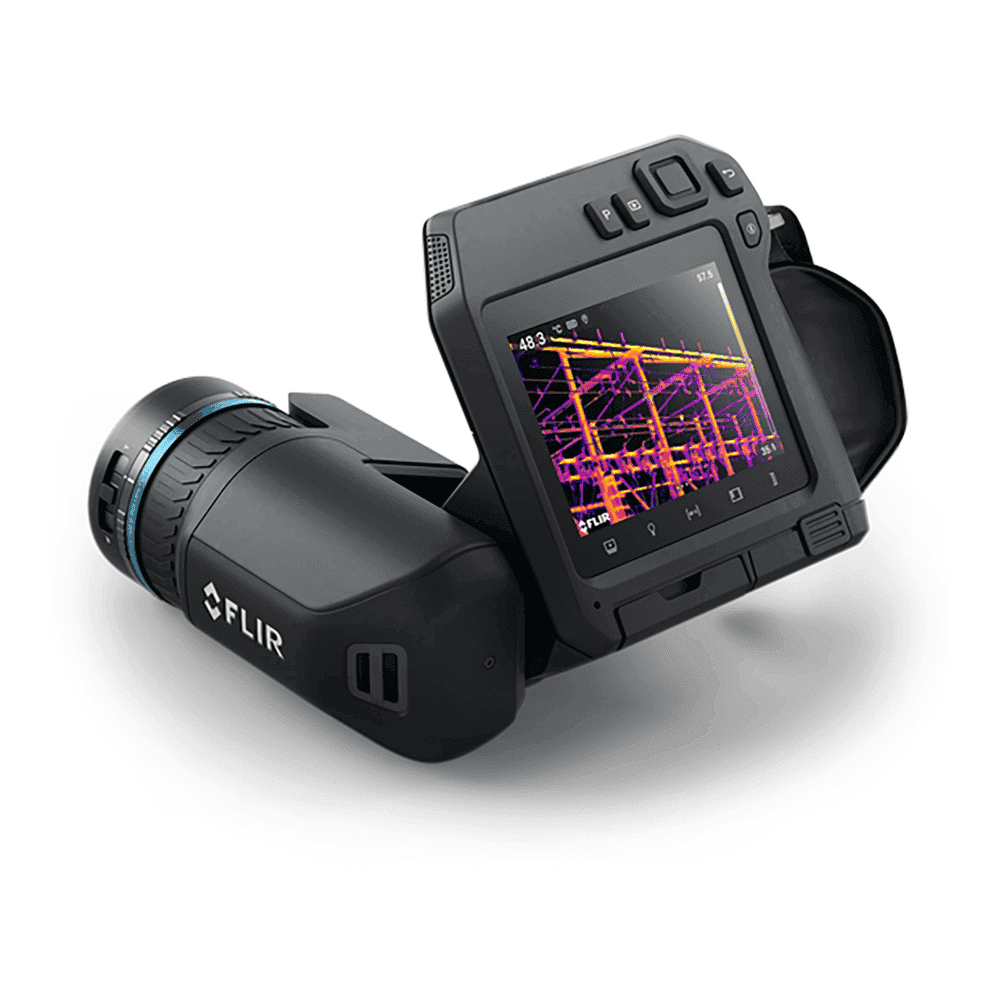

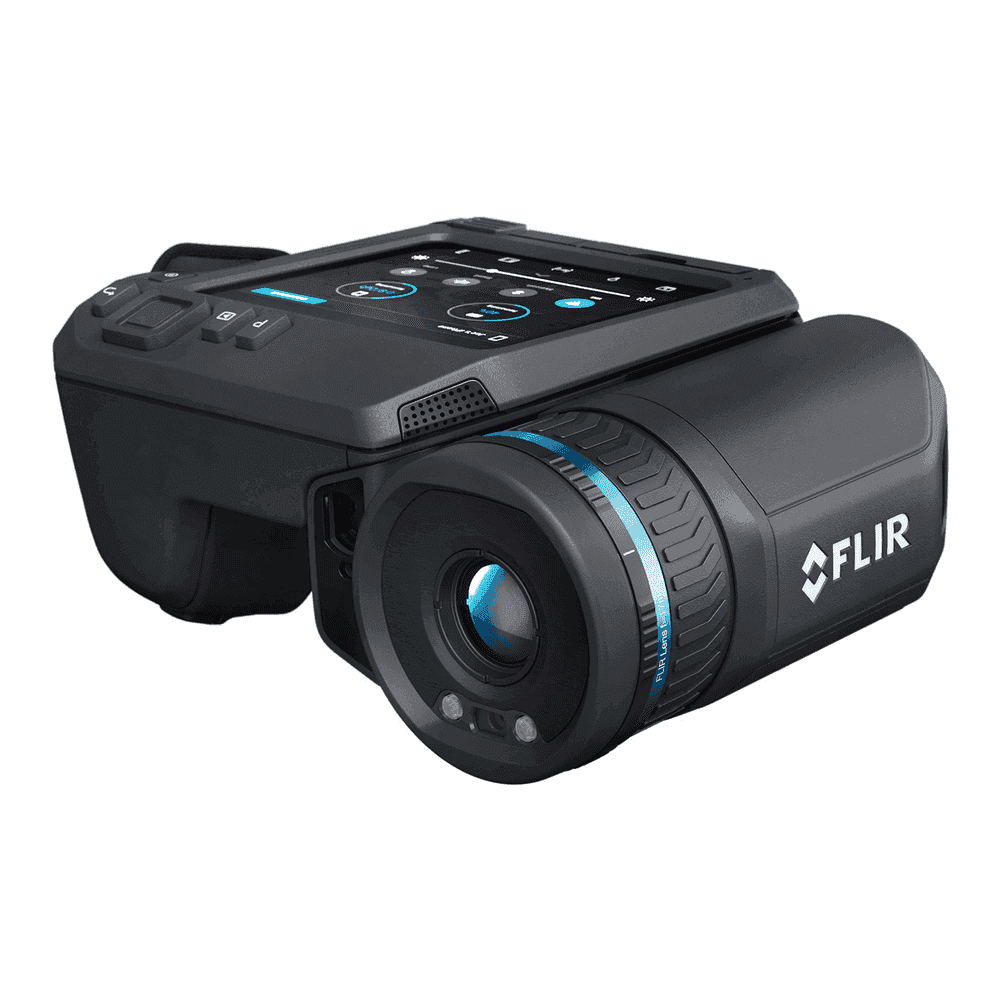

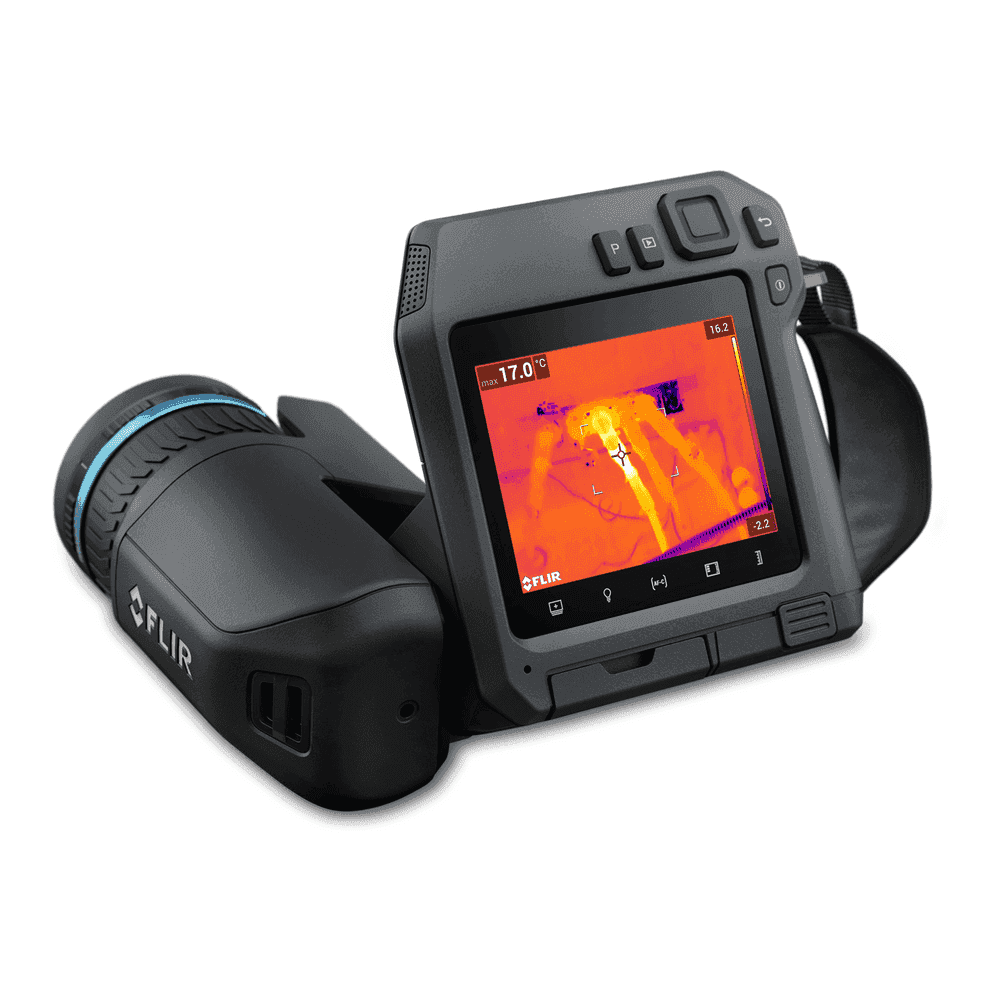

T540 30 Hz Thermal Imaging Camera with 24° and 42° FOV Lenses, 464 x 348p IR, -20 to 120°C / 0 to 650°C / 0 to 1500°C
Model # 79305-0201AED 77,696.00Incl. of VAT
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25
Key Features
- Brand: Flir
- Model: 79305-0201
- Warranty: 1 year manufacturer's warranty
This item is eligible for return.
Orders over AED 99 ship free in the UAE.
Want to know when it's back in stock?
COD![Visa]()
![Mastercard]()
You may also like...
Product Information
Flir 79305-0201 T540 30 Hz Thermal Imaging Camera with 24° and 42° FOV Lenses, 464 x 348p IR, -20 to 120°C / 0 to 650°C / 0 to 1500°C is a product engineered with precision, delivering exceptional performance
with features like make Critical Decisions Quickly Laserassisted autofocus guarantees you’ll get tacksharp focus for accurate temperature readings that lead to quick but solid decisions, flexible And Ergonomic The T540's optical block rotates 180° so you can image targets at any angle—comfortably—all day long and intuitive User Interface The capacitive touchscreen with intuitive menu is easy to navigate plus you can customize with two programmable buttons.
Maintive brings to you 100% genuine Thermal Cameras from Flir at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 79305-0201 T540 30 Hz Thermal Imaging Camera with 24° and 42° FOV Lenses, 464 x 348p IR, -20 to 120°C / 0 to 650°C / 0 to 1500°C today at the best price only from Maintive.Features
- Make Critical Decisions Quickly - Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.
- Flexible And Ergonomic - The T540's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.
- Intuitive User Interface - The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.
- This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus
- Perfect non-contact diagnostic tool for condition monitoring and research applications.
Specifications
- IR Resolution464 × 348 pixels
- Thermal Sensitivity/NETD<30 mK, 42° @ +30°C (+86°F), <40 mK, 24° @ +30°C (+86°F)
- Accuracy±2°C (±3.6°F) or ±2% of reading
- Digital Camera5 MP, with built-in LED photo/video lamp
- Display4", 640 x 480 pixel touchscreen LCD with auto-rotation
- Storage MediaRemovable SD card
- Camera software updateUsing USB cable or SD card
- ColorBlack
- Color PalettesIron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Resolution464 x 348
- Detector Type and PitchUncooled microbolometer, 17 µm
- Digital Camera FOV53° × 41°
- Digital Zoom1-6x continuous
- Field of View42° × 32°, 24° × 18°
- f-number1.1, 42°, 1.3, 24°
- Focal Length10 mm (0.39 in.), 42°, 17 mm (0.67 in.), 24°
- FocusContinuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
- Frame Rate [Full Window]30 Hz
- GalleryYes
- Image Frequency30 Hz
- Laser AlignmentPosition is automatically displayed on the infrared image
- Lens24° + 42°
- Lens IdentificationAutomatic
- Minimum Focus Distance0.15 m (0.49 ft.), 42°, 0.15 m (0.49 ft.), 24°
- Minimum Focus Distance with MSX0.65 m (2.13 ft.), 42°, 0.5 m (1.64 ft.), 24°
- NETD<40mK
- Non-radiometric IR video streamingH.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-PictureResizable and movable
- Radiometric IR video recordingReal-time radiometric recording (.csq)
- Radiometric IR video streamingOver UVC
- Resolution464 × 348 pixels (VGA)
- Spatial resolution (IFOV)1.66 mrad/pixel, 42°, 0.90 mrad/pixel, 24°
- Spectral Range7.5 - 14 µm
- UltraMaxQuadruples pixel count; activated in menu and processed in FLIR Tools
- Video LampBuilt-in LED light
- ViewfinderNo
- Visual ImageYes
- Visual Video RecordingH.264 to memory card
- Visual Video StreamingYes
- Automatic hot & cold detectionAutomatic maximum/minimum markers within area
- Color Alarm (Isotherm)Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
- Difference TemperatureYes
- Emissivity CorrectionYes, variable from 0.01 to 1.0 or selected from materials list
- Measurement CorrectionsYes
- Measurement Function AlarmAudible/visual alarms (above/below) on any selected measurement function
- Measurement PresetsNo measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
- Object Temperature Range-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) There are no optional ranges
- Reference TemperatureYes
- Display TechnologyIPS
- Languages21
- TextPredefined list or touchscreen keyboard
- Touch ScreenOptically bonded PCAP
- Voice60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Battery operating timeApprox. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery typeLi-ion battery, charged in camera or on separate charger
- Battery voltage3.6 V
- Battery weight195 g (6.89 oz.)
- Charging systemIn camera (AC adapter or 12 V from a vehicle) or two-bay charger
- Charging Temperature0°C to 45°C (32°F to 113°F)
- External Power OperationAC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
- Power ManagementAutomatic shut-down and sleep mode
- EMCETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission)
- Humidity (Operating and Storage)IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
- Operating Temperature Range–15°C to 50°C (5°F to 122°F)
- Radio SpectrumETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2
- SafetyEN/UL/CSA/PSE 60950-1
- Storage Temperature Range–40°C to 70°C (-40°F to 158°F)
- Tripod MountingUNC 1/4"-20
- Compatible with FLIR softwareFLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
- Housing materialPCABS with TPE, magnesium
- Laser PointerClass 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
- Size (L x W x H)Lens horizontal- 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
- Warranty1 year manufacturer's warranty
