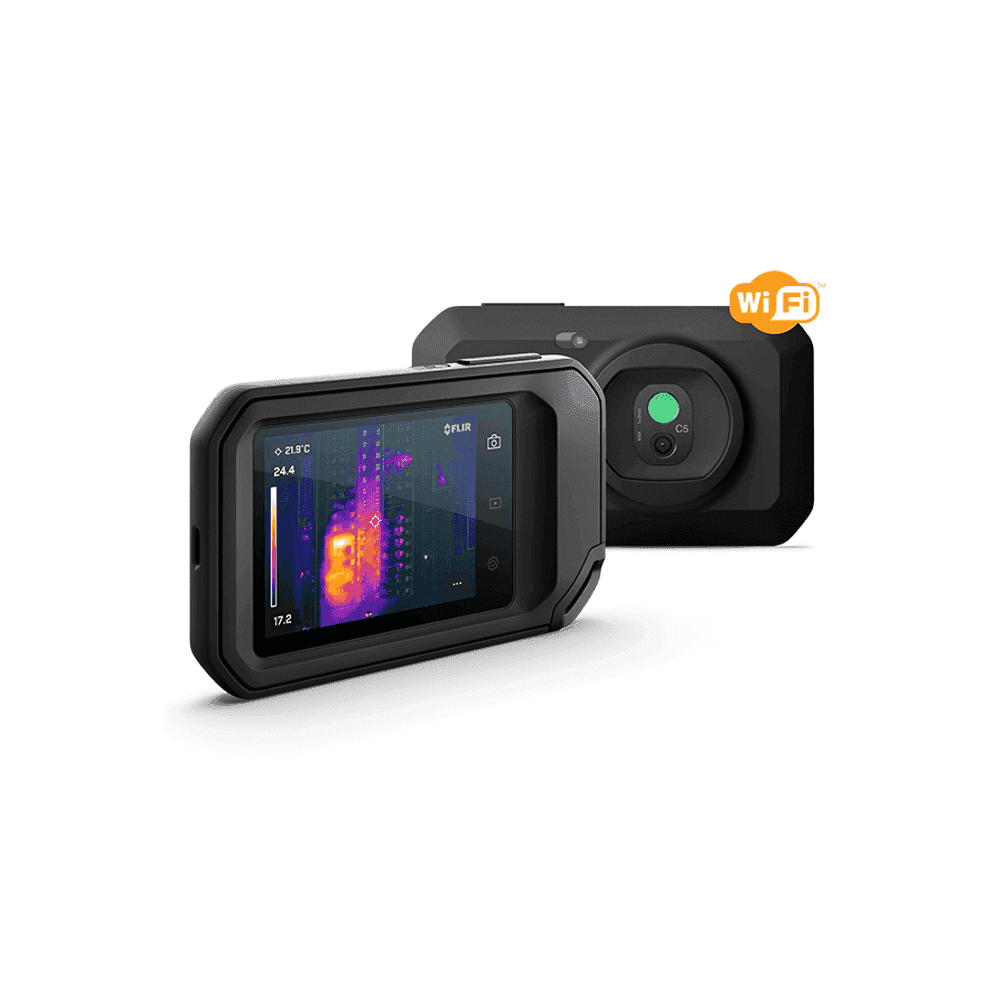

Flir 89401-0202 C5 8.7 Hz Pocket Thermal Camera, 160 x 120p IR, -20 to 400°C is a product engineered with precision, delivering exceptional performance
with features like find And Troubleshoot Quickly find hidden faults and reduce diagnostic time thanks to MSX 160 × 120 true thermal imaging and 1Touch LevelSpan, document And Share Directly upload images using FLIR Ignite cloud connectivity then create professional reports and email them to customers and rugged Reliable Compact Take the pocketportable C5 with you to every job it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop.
Maintive brings to you 100% genuine Thermal Cameras from Flir at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 89401-0202 C5 8.7 Hz Pocket Thermal Camera, 160 x 120p IR, -20 to 400°C today at the best price only from Maintive.
Features
Find And Troubleshoot - Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
Document And Share - Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
Rugged, Reliable, Compact - Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
Specifications
AccuracyAt ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F)- ±3°C (±5.5°F), 100 to 400°C (212 to 752°F)- ±3%
Digital Camera5 MP
Image ModesInfrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Object Temperature Range-20 to 400°C (-4 to 752°F)
Thermal Sensitivity<70 mK
TouchscreenCapacitive touch
Battery operating time4 hours
Battery typeRechargeable built-in Lithium ion battery
Charging systemUSB-C (1 A)
Charging Time2 hours
External Power Operation5 V, USB-C
Drop test2 m (6.6 ft)
EncapsulationCamera housing and lens- IP54 (IEC 60529)
Operating Temperature Range-10 to 50°C (14 to 122°F)
Storage Temperature Range-40 to 70°C (-40 to 158°F)
Tripod MountingUNC ¼"-20 (built-in)
Warranty1 year manufacturer's warranty
