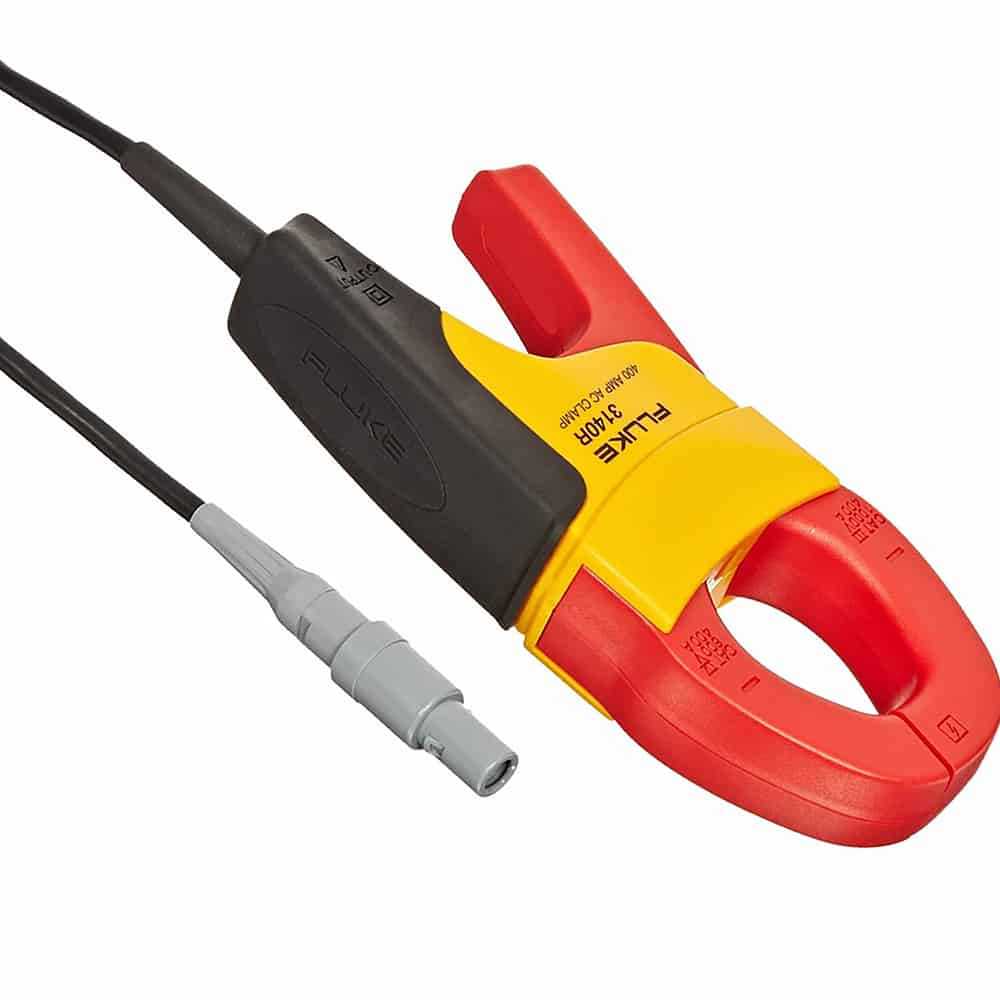

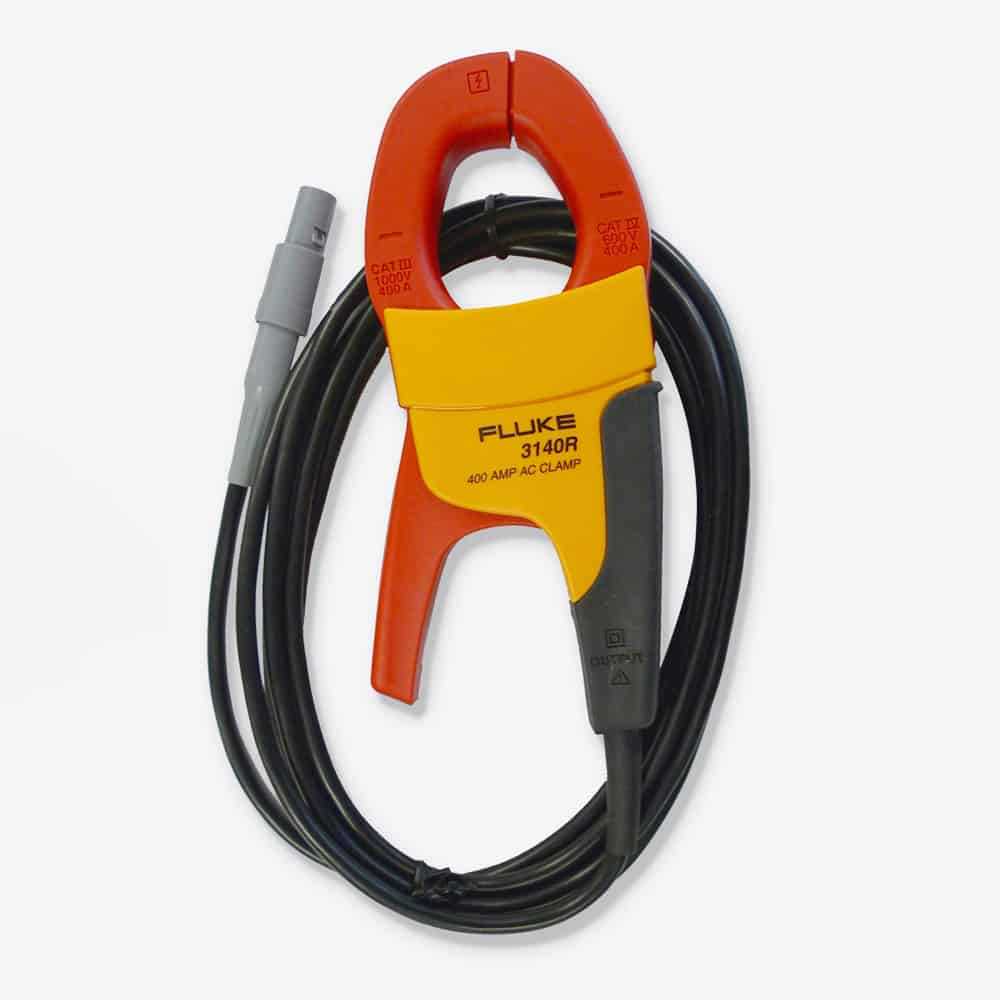

Fluke 3140R Clip-On Current Transformer, 2 to 400A, for 1750 Power Quality Logger is a product engineered with precision, delivering exceptional performance
with features like cT Type – Clamp On, current Range – 2 to 400Amps and accuracy – 2 percent RDG + 004 Amps.
Maintive brings to you 100% genuine Power Quality Tools Accessories from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 3140R Clip-On Current Transformer, 2 to 400A, for 1750 Power Quality Logger today at the best price only from Maintive.
Features
CT Type – Clamp On
Current Range – 2 to 400Amps
Accuracy – 2 percent RDG +/- 0.04 Amps
Frequency Response – 20 KiloHertz
Items Included
Clip-On Current Transformer, 2 to 400A, for 1750 Power Quality Logger
Specifications
Typical Bandwidth5 to 20 kHz
Working Voltage1000 V AC RMS, in compliance with EN61010
Common Mode Voltage1000 V AC RMS from earth ground, in compliance with EN61010
Input Load Impedance (of Host Instrument)>1 M Ω in parallel with up to 47 pF
Maximum Non-destructive Current1000 A
Duty Cycle2 to 400 A continuous
Influence of Adjacent Conductor<9.0 mA/A
Influence of Conductor Position in Jaw Opening±1.0% of reading + 0.05 A
Maximum Conductor Size1.26" (32 mm)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Temperature32 to 122°F (0 to 50°C)
Warranty1 year manufacturer's warranty
Typical Bandwidth5 to 20 kHz
Working Voltage1000 V AC RMS, in compliance with EN61010
Common Mode Voltage1000 V AC RMS from earth ground, in compliance with EN61010
Input Load Impedance (of Host Instrument)>1 M Ω in parallel with up to 47 pF
Maximum Non-destructive Current1000 A
Duty Cycle2 to 400 A continuous
Influence of Adjacent Conductor<9.0 mA/A
Influence of Conductor Position in Jaw Opening±1.0% of reading + 0.05 A
Maximum Conductor Size1.26" (32 mm)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Temperature32 to 122°F (0 to 50°C)
Warranty1 year manufacturer's warranty
