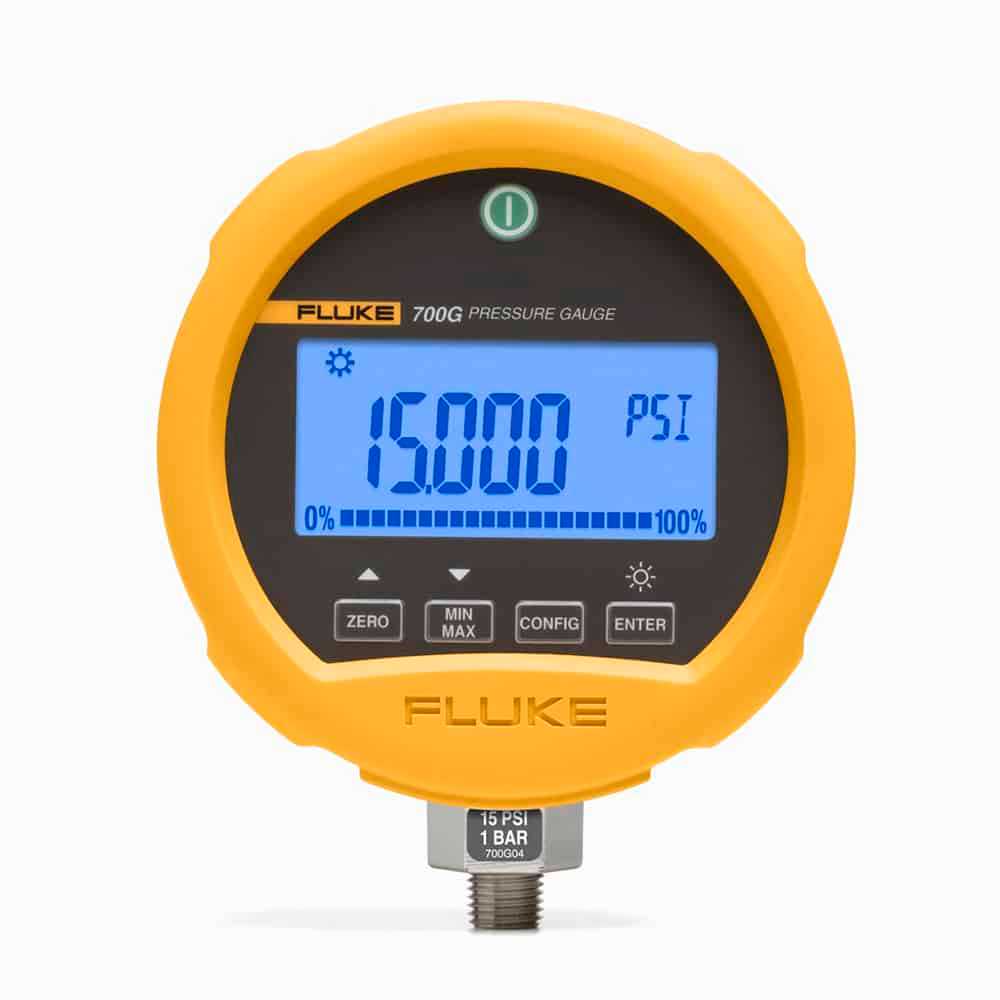

Fluke 700G01 Pressure Test Gauge, -10 to +10 inH2O, -20 to 20 mBar is a product engineered with precision, delivering exceptional performance
with features like rugged highquality pressure gauge calibrator for fast accurate test results ±10in H2O wc 04 PSIG, aTEX rating II 3 G Ex nA IIB T6 and 5½ digit 065" 165 mm high display with 20segment bar graph 0 to 100 and backlight.
Maintive brings to you 100% genuine Pressure Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 700G01 Pressure Test Gauge, -10 to +10 inH2O, -20 to 20 mBar today at the best price only from Maintive.
Features
Rugged high-quality pressure gauge calibrator for fast accurate test results. ±10in H2O w.c. (0.4 PSIG).
ATEX: rating II 3 G Ex nA IIB T6
5½ digit, 0.65" (16.5 mm) high display with 20-segment bar graph 0 to 100% and backlight
Displays measured pressure in 18 different engineering units ranging from psi to bar, kPa and many others, allowing you to customize the gauge to measure your individual or localized measurement needs and requirements
Ability to easily connect to existing pumps
Log over 8000 pressure measurements when paired with 700G/TRACK software
Combine with a pneumatic or hydraulic hand pump for a complete pressure measurement and testing kit
Items Included
Manual on CD-ROM in 14 languages Traceable certificate of calibration 1/4" NPT to 1/4" ISO adapter
Specifications
Range-10 to +10 inH2O -20 mbar to 20 mbar
Resolution0.001 inH20 0.001 mbar
AccuracyAccuracy Burst pressure Fluke-700G01 -10 to +10 inH2O -20 mbar to 20 mbar 0.001 inH20 0.001 mbar Positive pressure ± 0.1 % of range, Vacuum ± 0.1 % of range
Burst Pressure3 psi 210 mbar
Dimensions (H x W x D)12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
Pressure connection¼ in NPT Male
Weight0.56 kg (1.22 lb) with holster
Display5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
PowerThree (3) AA alkaline batteries
Battery life1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
Warranty3 years manufacturer's warranty
Range-10 to +10 inH2O -20 mbar to 20 mbar
Resolution0.001 inH20 0.001 mbar
AccuracyAccuracy Burst pressure Fluke-700G01 -10 to +10 inH2O -20 mbar to 20 mbar 0.001 inH20 0.001 mbar Positive pressure ± 0.1 % of range, Vacuum ± 0.1 % of range
Burst Pressure3 psi 210 mbar
Dimensions (H x W x D)12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
Pressure connection¼ in NPT Male
Weight0.56 kg (1.22 lb) with holster
Display5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
PowerThree (3) AA alkaline batteries
Battery life1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
Warranty3 years manufacturer's warranty
