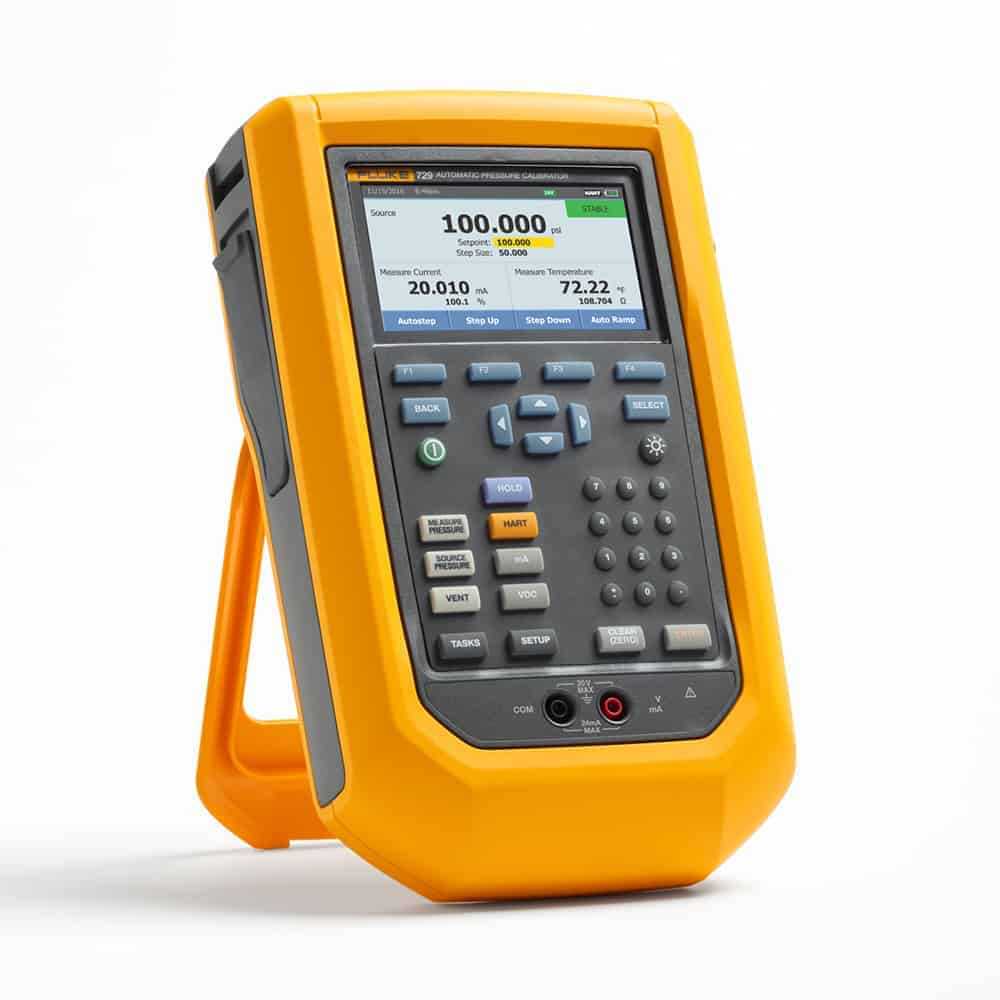

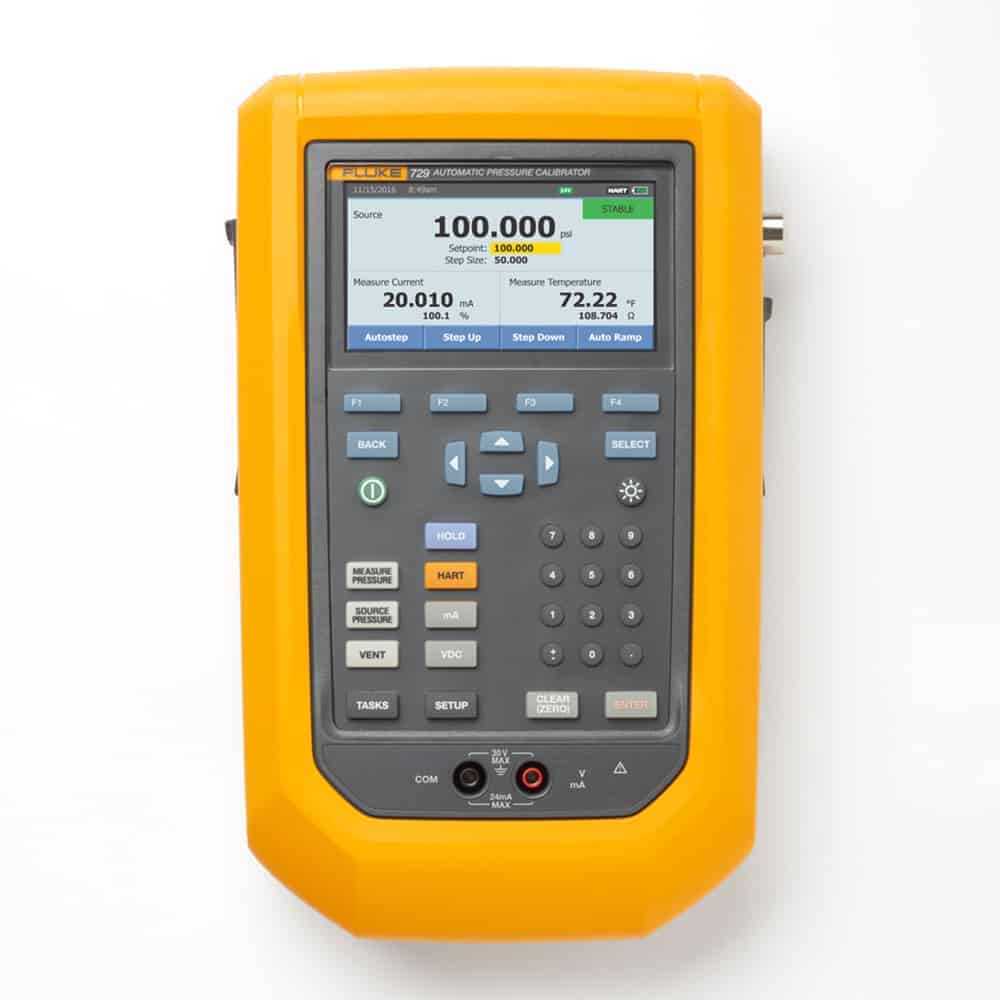

Fluke 729 30G FC Electric Pressure Calibrator, 30 PSI, 2 Bar, 0 to 24 mA is a product engineered with precision, delivering exceptional performance
with features like automatic pressure generation and regulation to 300 psi, easily document the process using onboard test templates and automatic internal finepressure adjustment.
Maintive brings to you 100% genuine Pressure Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 729 30G FC Electric Pressure Calibrator, 30 PSI, 2 Bar, 0 to 24 mA today at the best price only from Maintive.
Features
Automatic pressure generation and regulation to 300 psi
Easily document the process using onboard test templates
Automatic internal fine-pressure adjustment
Measure, source and simulate 4 to 20 mA signals
Troubleshoot and calibrate HART smart transmitters
Items Included
Calibrator with Wireless Communication Soft Case Stackable Test Leads AC280 Hook Clips Alligator Clips Test Probes Magnetic Hanger Kit Carrying Strap Wireless Adapter Quick Start Guide Safety Sheet Power Supply Rechargeable Battery (installed) Hose Kit with PUsh Fit Adapters Hanging Clip USB Cable 1/8 in FNPT to 1/4 in FNPT Adapter 1/8 in FNPT to F-M20 Adapter 1/8 in FNPT to 1/4 in FBSP Adapter PTFE Tape 2x Sintered Filters Water Trap Drain Valve Tuning Hoses
Specifications
PSI range, resolution-12.000 to 30.000 psi
Bar range, resolution-0.8273 to 2.06843 bar
kPa range, resolution-82.73 to 206.843 kPa
Current Measurement0 to 24mA
Voltage Measurement0 to 30V
Accuracy0.01% ±2 LSD all ranges (at 23 °C ±5 °C)
Loop compliance voltage24 V dc @ 20 mA
Temperature measurement only/100 Ω Pt(385) RTD-50 °C to 150 °C (-58 °F to 302 °F)
Drive capability1200 Ω without HART resistor, 950 Ω with internal HART resistor
Size (HxWxL)7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)
Warranty3 years manufacturer's warranty
PSI range, resolution-12.000 to 30.000 psi
Bar range, resolution-0.8273 to 2.06843 bar
kPa range, resolution-82.73 to 206.843 kPa
Current Measurement0 to 24mA
Voltage Measurement0 to 30V
Accuracy0.01% ±2 LSD all ranges (at 23 °C ±5 °C)
Loop compliance voltage24 V dc @ 20 mA
Temperature measurement only/100 Ω Pt(385) RTD-50 °C to 150 °C (-58 °F to 302 °F)
Drive capability1200 Ω without HART resistor, 950 Ω with internal HART resistor
Size (HxWxL)7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)
