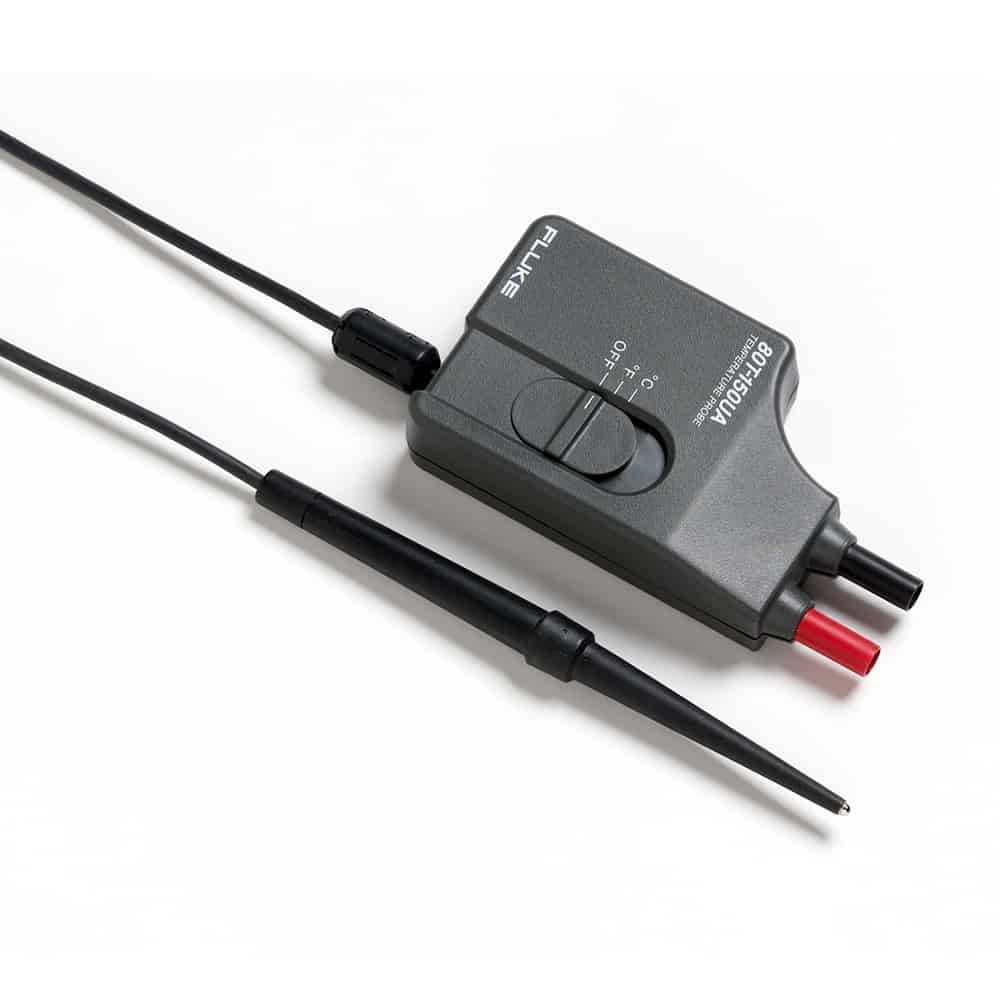

Fluke 80T-150UA Universal Temperature Probe (For DMMS) is a product engineered with precision, delivering exceptional performance
with features like compatible with Fluke DMMs, high accuracy and fast reading for low voltage below 24 V AC 60 V DC applications and measurement range 50 to 150¡C.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 80T-150UA Universal Temperature Probe (For DMMS) today at the best price only from Maintive.
Features
Compatible with Fluke DMMs
High accuracy and fast reading for low voltage (below 24 V AC; 60 V DC) applications
Measurement range: -50 to 150¡C
Output: 1 mV/¡C or 1 mV/¡F (switchable)
Items Included
Fluke 80T-150U Universal Temperature Probe
Specifications
Measurement Range -58 to 302°F (-50 to 150°C)
Accuracy 59 to 95°F: ±1.8°F from 32 to 212°F, decreasing linearly to ±5.4°F at -58 and 302°F
Sensitivity 1 mV dc/°C or °F
Voltage Standoff 60 V dc or 30 V ac rms (42.4 V peak)
Settling Time 9.5 seconds to settle within 2° for a 50° change
Ambient Operating Range for Temperature Module 32 to 122°F (0 to 50°C)
Maximum Temperature Probe Body and Cable 160°F (70°C)
Storage Temperature for Unit -40 to 160°F (-40 to 70°C)
Humidity 0 to 90% (32 to 95°F [0 to 35°C])
Overall Length 53.8" (1.36 m)
Warranty1 year manufacturer's warranty
Measurement Range -58 to 302°F (-50 to 150°C)
Accuracy 59 to 95°F: ±1.8°F from 32 to 212°F, decreasing linearly to ±5.4°F at -58 and 302°F
Sensitivity 1 mV dc/°C or °F
Voltage Standoff 60 V dc or 30 V ac rms (42.4 V peak)
Settling Time 9.5 seconds to settle within 2° for a 50° change
Ambient Operating Range for Temperature Module 32 to 122°F (0 to 50°C)
Maximum Temperature Probe Body and Cable 160°F (70°C)
Storage Temperature for Unit -40 to 160°F (-40 to 70°C)
Humidity 0 to 90% (32 to 95°F [0 to 35°C])
Overall Length 53.8" (1.36 m)
Warranty1 year manufacturer's warranty
