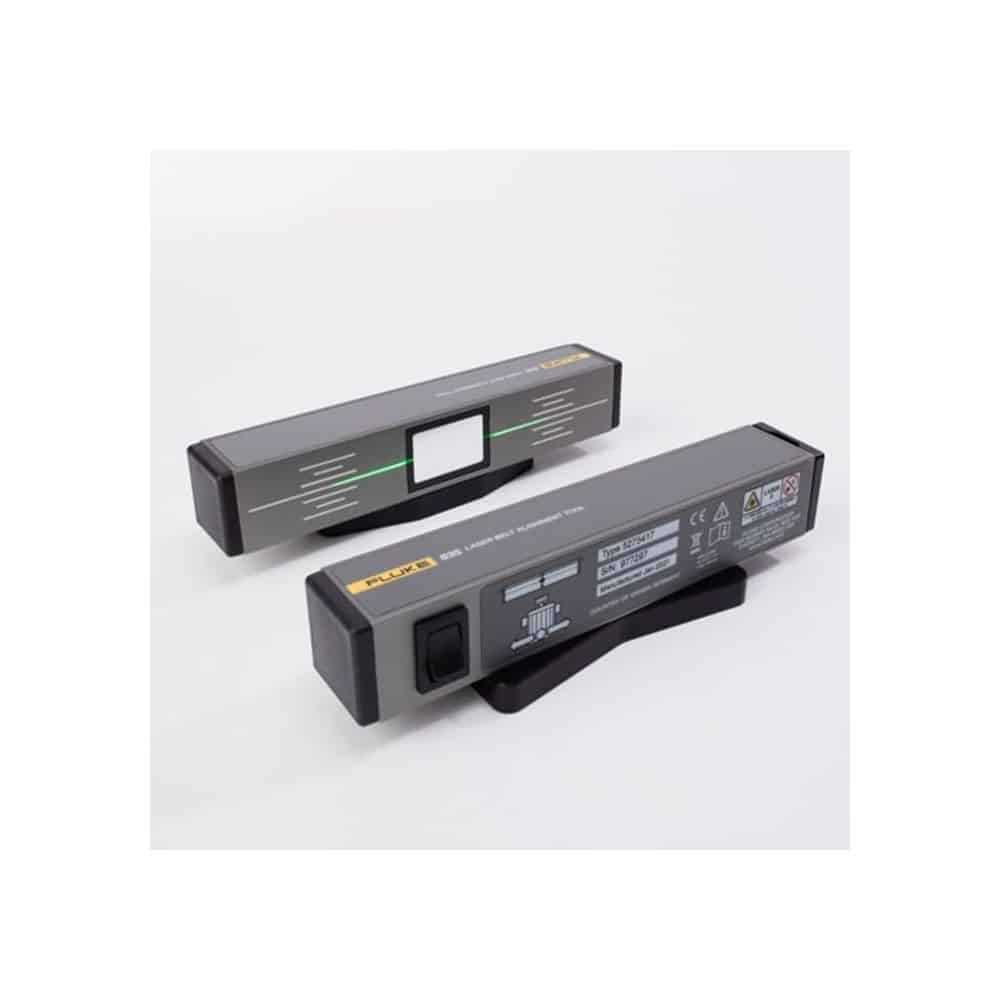

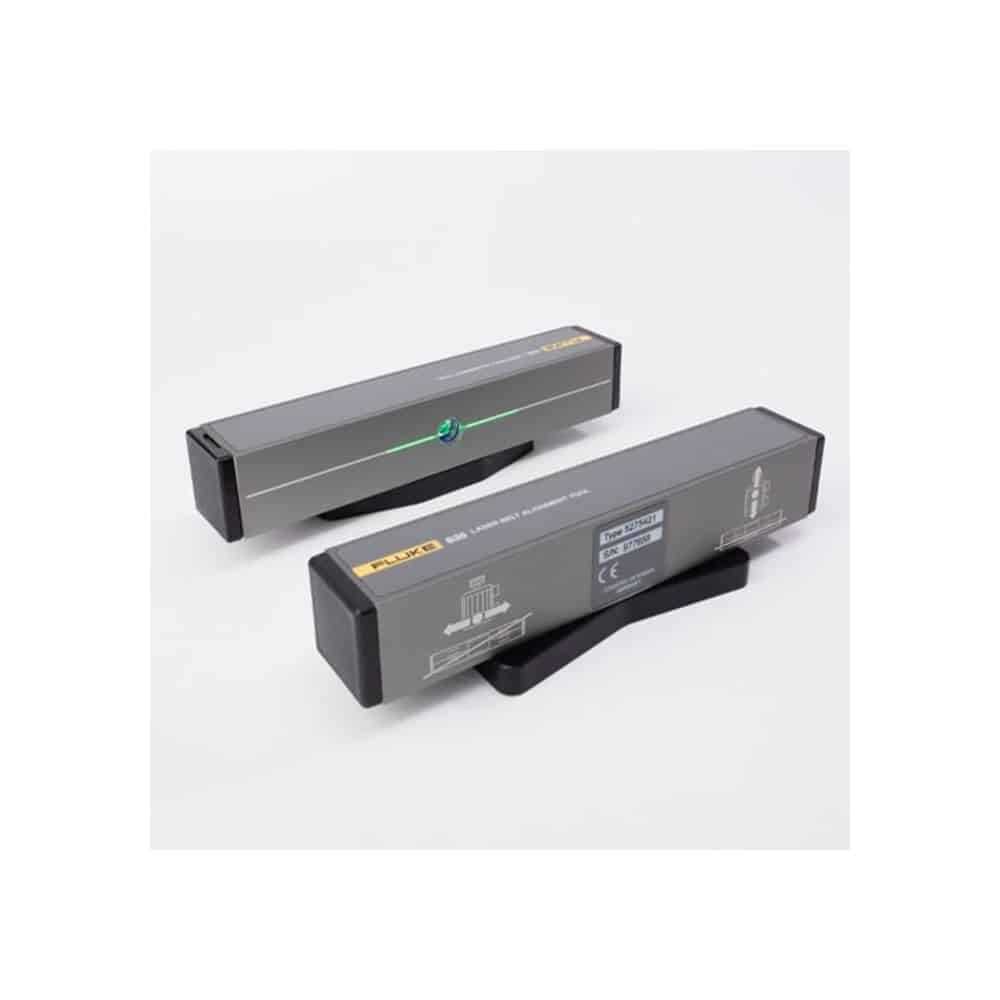

Fluke 835 Laser Belt Alignment Tool, Green Laser, upto 10m, with Reflector is a product engineered with precision, delivering exceptional performance
with features like timesaving pulley alignment method requires no crosscheck, shows offset vertical and horizontal angles simultaneously and live corrections validate when precision alignment is achieved.
Maintive brings to you 100% genuine Shaft Alignment Tools from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 835 Laser Belt Alignment Tool, Green Laser, upto 10m, with Reflector today at the best price only from Maintive.
Features
Time-saving pulley alignment method requires no cross-check
Shows offset, vertical, and horizontal angles simultaneously
Live corrections validate when precision alignment is achieved
Strong magnets mount onto virtually any pulley face
Efficient, accurate one-person operation with no training needed
Specifications
Accuracy0.2˚
Laser wavelength505 - 535 nm (green – more visible)
Output power< 1.0 mW
Classification class2
Measuring distance10 m between units
Laser line length7 m at 5 m distance
ControlsLaser ON/OFF rocker switch
Battery type4 AAA alkaline batteries
Operating time6 hours
Operating temp-5˚C to 40˚C
Storage temp-10˚C to 70˚C
Mounting methodStrong magnets
Weight0.3 kg
Dimensions37 x 40 x 170 mm
HousingGray anodized aluminum
Reflector Accuracy0.2˚
Reflector Size21 x 32 mm
Reflector Mounting methodStrong magnets
Reflector Weight0.27 kg
Reflector Dimensions37 x 40 x 170 mm
Reflector HousingGray anodized aluminum
Warranty1 year manufacturer's warranty
Accuracy0.2˚
Laser wavelength505 - 535 nm (green – more visible)
