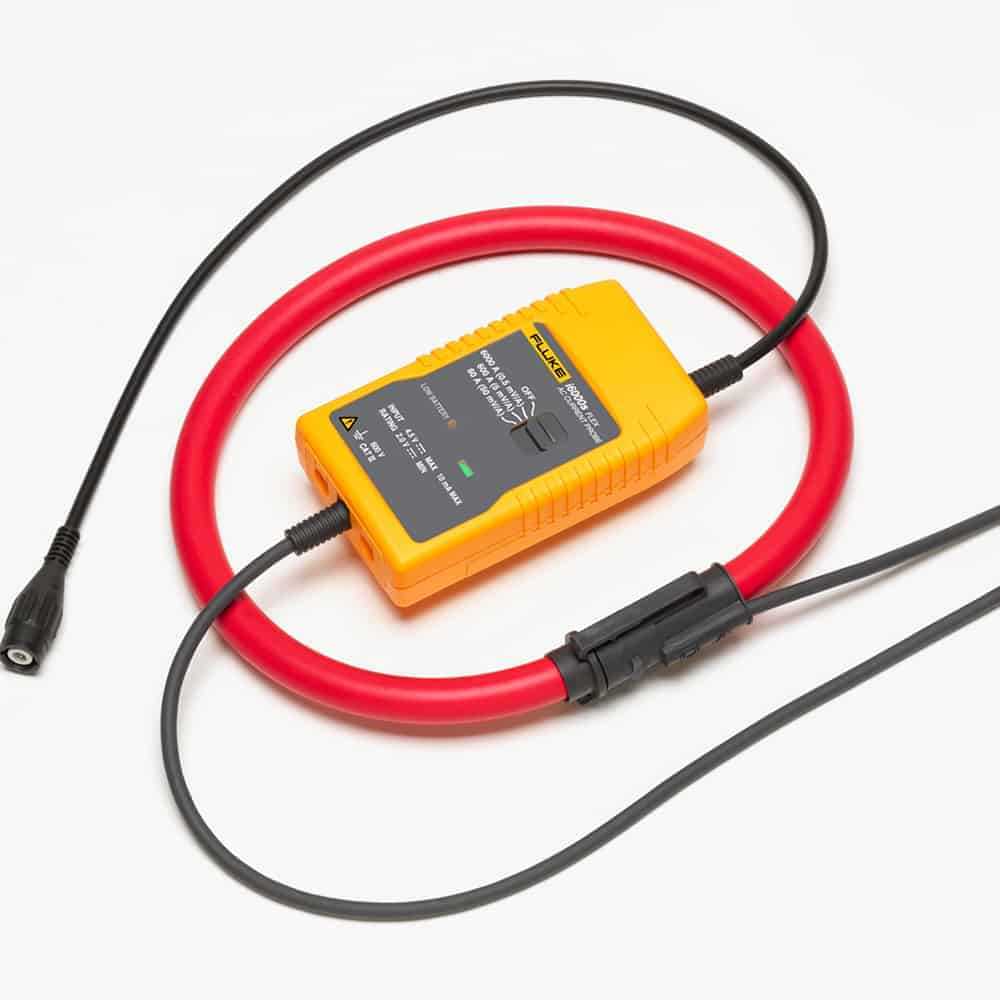

Fluke i6000s flex-24 Flex-24 AC Current Probe (6000 A) is a product engineered with precision, delivering exceptional performance. Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i6000s flex-24 Flex-24 AC Current Probe (6000 A) today at the best price only from Maintive.
Features

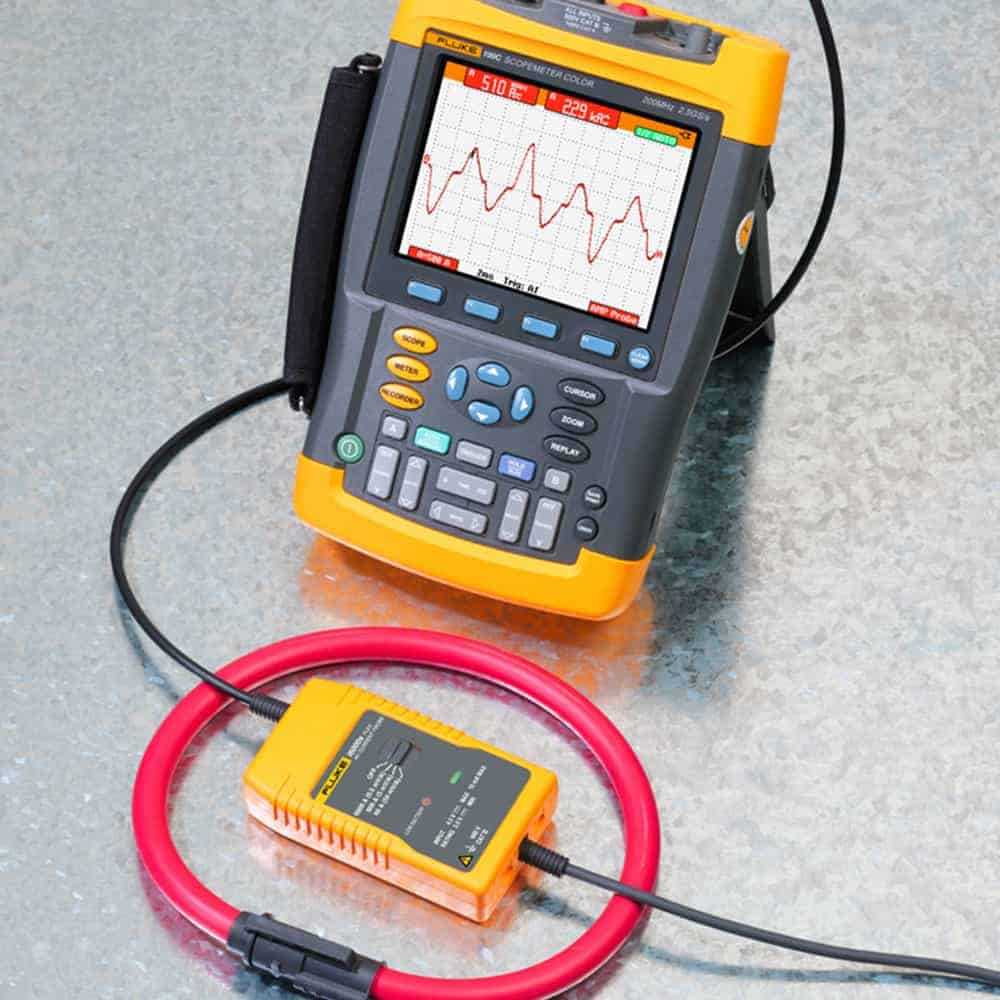

The i6000sflex is an AC current probe utilising the Rogowski principle. It can be used to measure currents up to 6000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.
Items Included
Fluke i6000s Flex-24 AC Current Probe
Specifications
Current Ranges 60 A / 600 A / 6000 A AC rms
Output Sensitivity (AC coupled) 50 mV /5 mV / 0.5 mV per A
Load Impedance 100 kOhm minimum
Accuracy (at +25°C) ±1% of range (45 - 65 Hz)
Linearity (10% to 100% of range) ±0.2% of reading
Noise 8mV ACRMS (60 A) 2 mV ACRMS (600/6000A)
Frequency Range 10 Hz to 50 kHz (- 3 dB)
Phase Error < ±1° (45 - 65Hz), ±10° (at 20 kHz)
Temperature Coefficient ±0.08% of reading per °C
Head Cable Diameter 14.3 mm
Head Bend Radius 38.1 mm
Warranty1 year manufacturer's warranty
Current Ranges 60 A / 600 A / 6000 A AC rms
Output Sensitivity (AC coupled) 50 mV /5 mV / 0.5 mV per A
Load Impedance 100 kOhm minimum
Accuracy (at +25°C) ±1% of range (45 - 65 Hz)
Linearity (10% to 100% of range) ±0.2% of reading
Noise 8mV ACRMS (60 A) 2 mV ACRMS (600/6000A)
Frequency Range 10 Hz to 50 kHz (- 3 dB)
Phase Error < ±1° (45 - 65Hz), ±10° (at 20 kHz)
Temperature Coefficient ±0.08% of reading per °C
Head Cable Diameter 14.3 mm
Head Bend Radius 38.1 mm
Warranty1 year manufacturer's warranty
