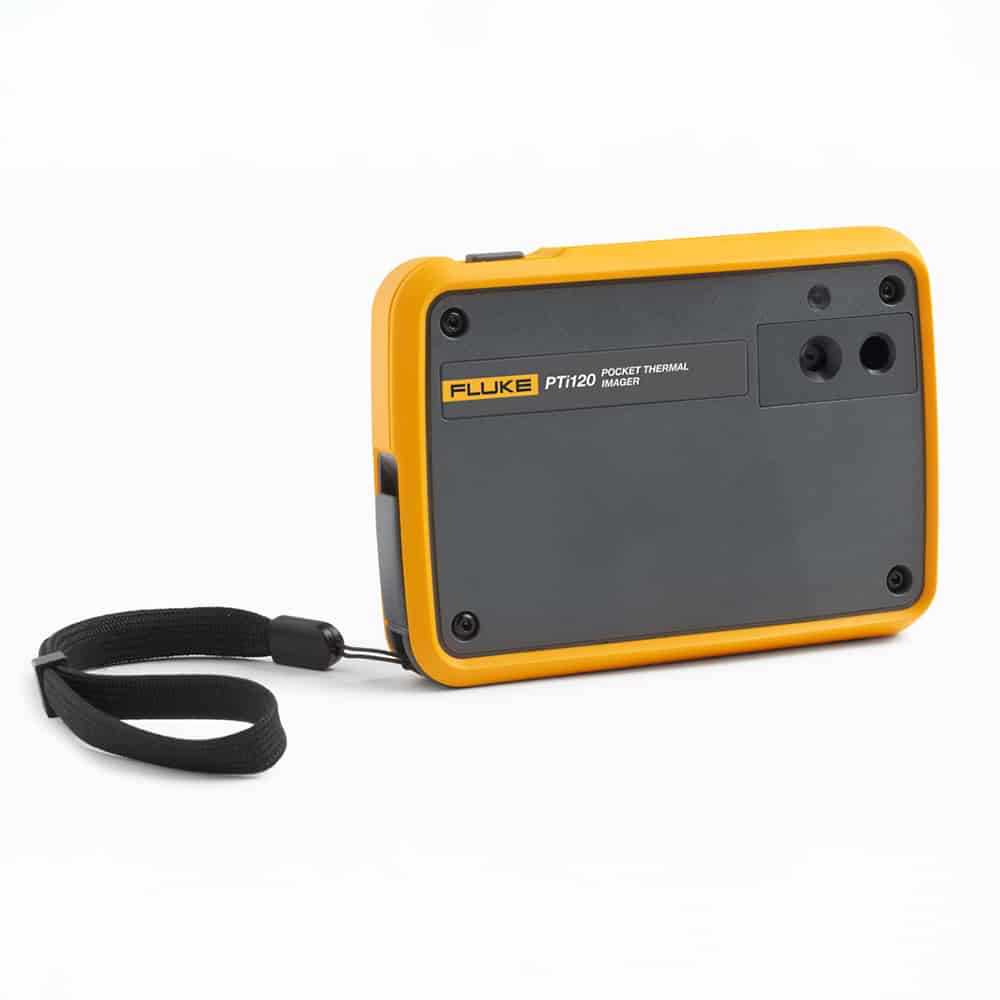

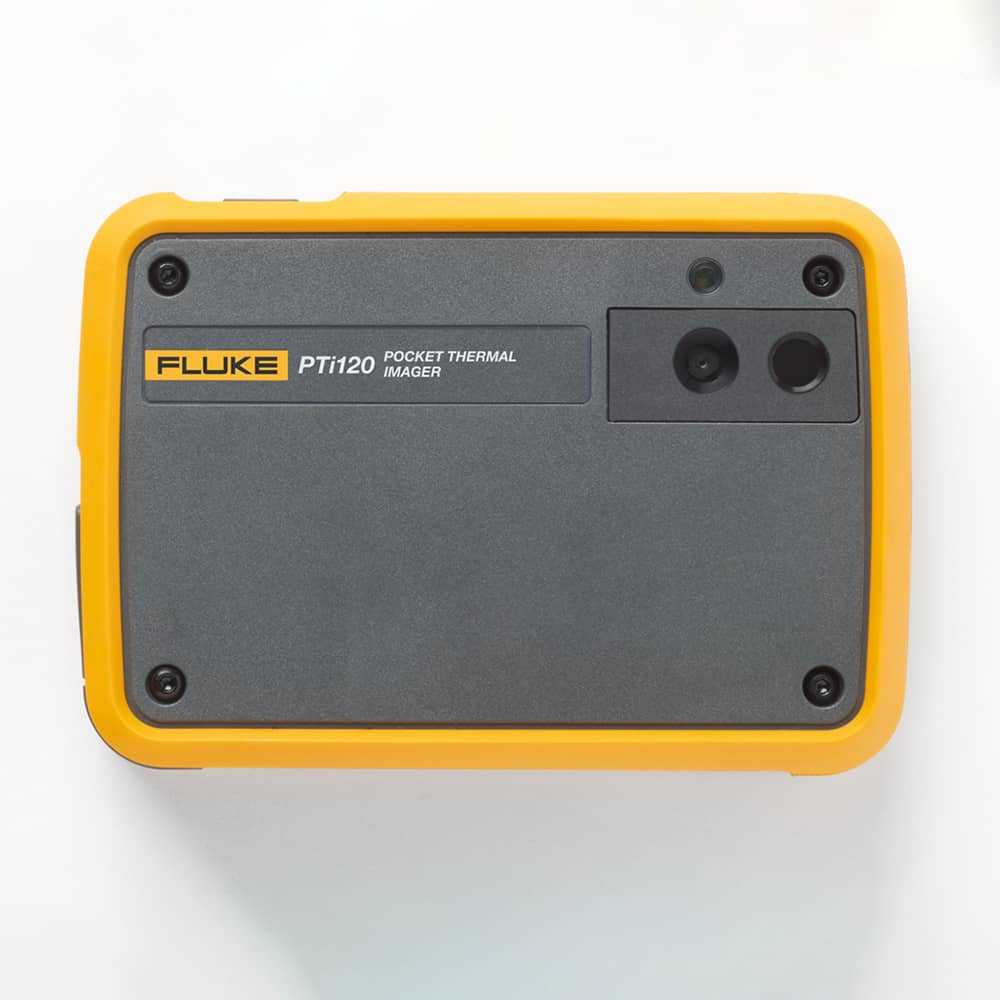

Fluke Pti120 Pocket Thermal Imaging Camera, 120x90, 9Hz, -20 to 400°C is a product engineered with precision, delivering exceptional performance
with features like 35” LCD touchscreen display for easy troubleshooting, 20 °C to +150 °C temperature measurement range and six color palettes.
Maintive brings to you 100% genuine Thermal Cameras from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order Pti120 Pocket Thermal Imaging Camera, 120x90, 9Hz, -20 to 400°C today at the best price only from Maintive.
Features

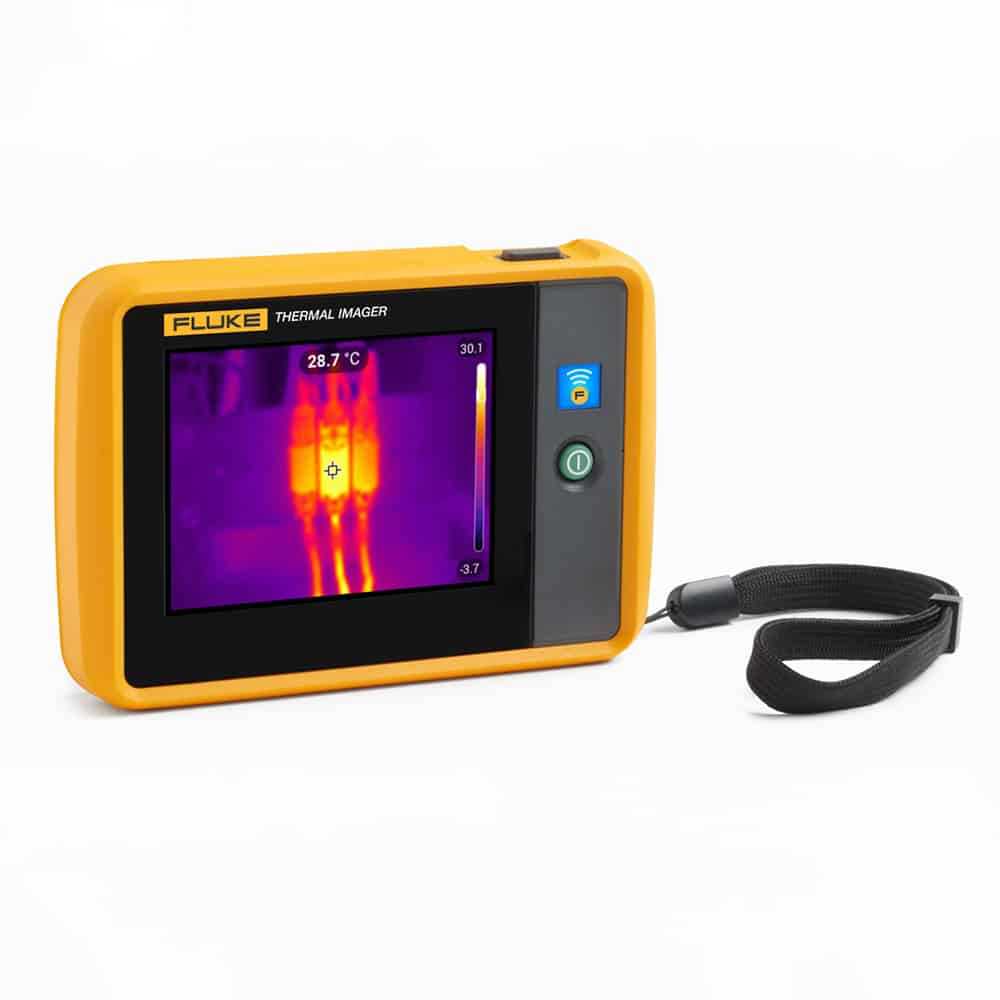

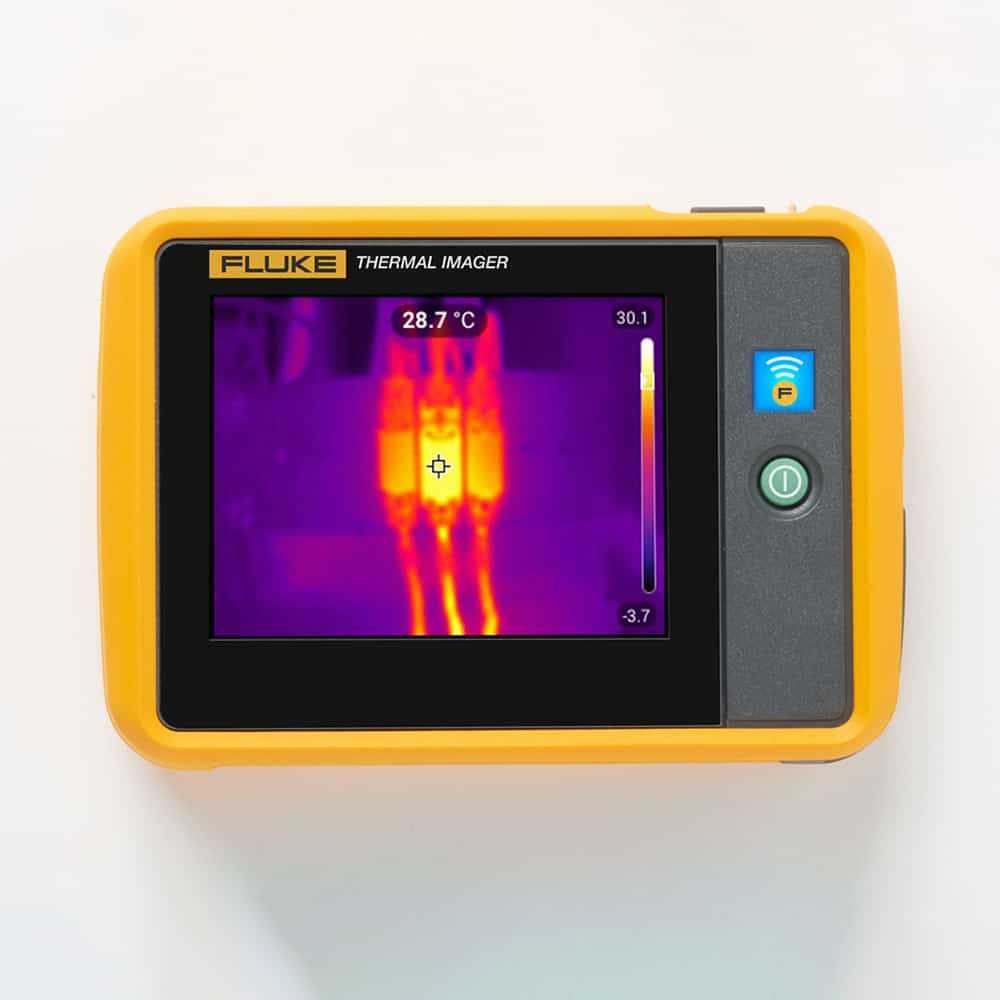

3.5” LCD touchscreen display for easy troubleshooting
-20 °C to +150 °C temperature measurement range
Six color palettes
Automatically organize and file thermal images with Fluke Connect Asset Tagging
Can withstand drop up to 1 meter
IP 54 enclosure rating
Subject to Export Control
Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)

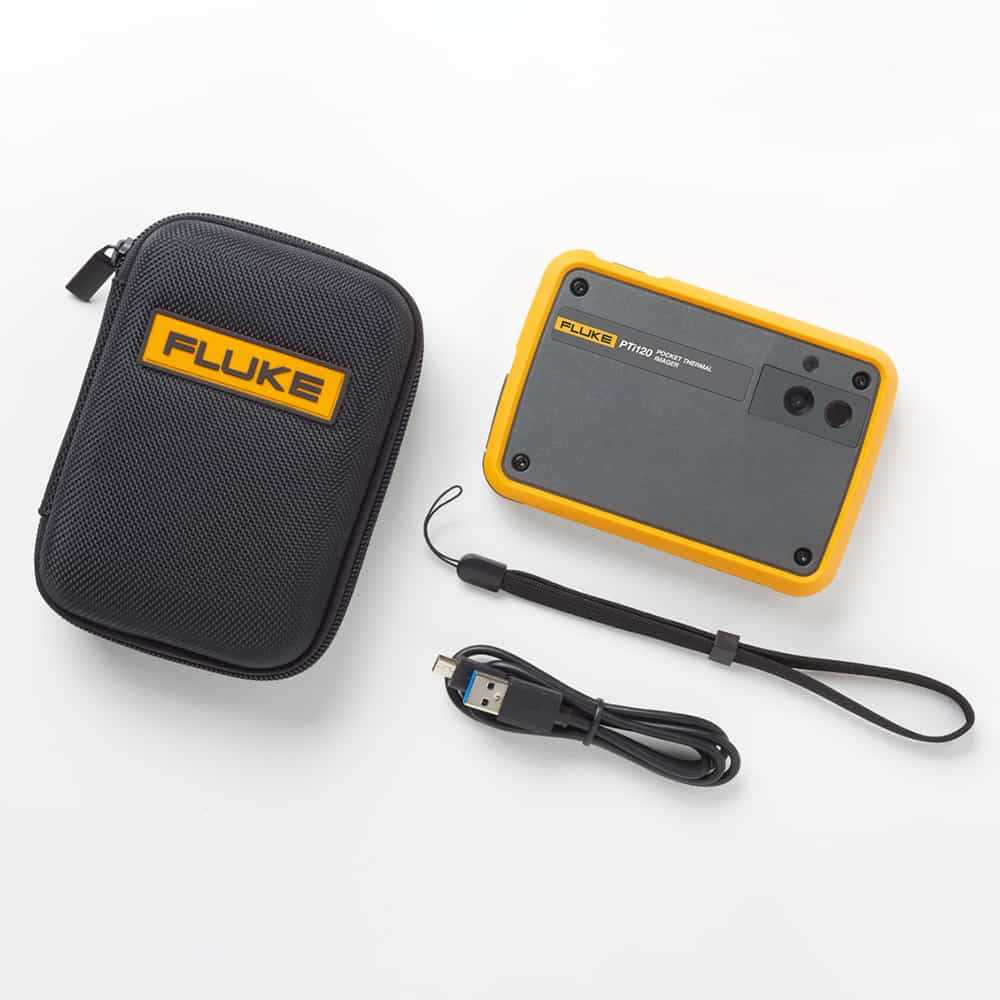

Items Included
Thermal imager
Soft case
Lanyard
USB cable
Specifications
IFOV (spatial resolution)7.6 mRad
Infrared resolution120 x 90 (10,800 pixels)
Field of view50° H x 38° V
Distance to spot130:1
Temperature-20 °C to 400 °C
Focus systemFixed focus, minimum focus distance 22.8 cm
Thermal sensitivity (NETD)60 mK
Frame rate9 Hz
Infrared spectral band8 μm to 14 μm (long wave)
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Relative humidity95% non-condensing
Size (H x W x L)8.9 cm x 12.7 cm x 2.5 cm (3.5 inches x 5.0 in x 1.0 inches)
Warranty2 years manufacturer's warranty
IFOV (spatial resolution)7.6 mRad
Infrared resolution120 x 90 (10,800 pixels)
Field of view50° H x 38° V
Distance to spot130:1
Temperature-20 °C to 400 °C
Focus systemFixed focus, minimum focus distance 22.8 cm
Thermal sensitivity (NETD)60 mK
Frame rate9 Hz
Infrared spectral band8 μm to 14 μm (long wave)
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Relative humidity95% non-condensing
Size (H x W x L)8.9 cm x 12.7 cm x 2.5 cm (3.5 inches x 5.0 in x 1.0 inches)
