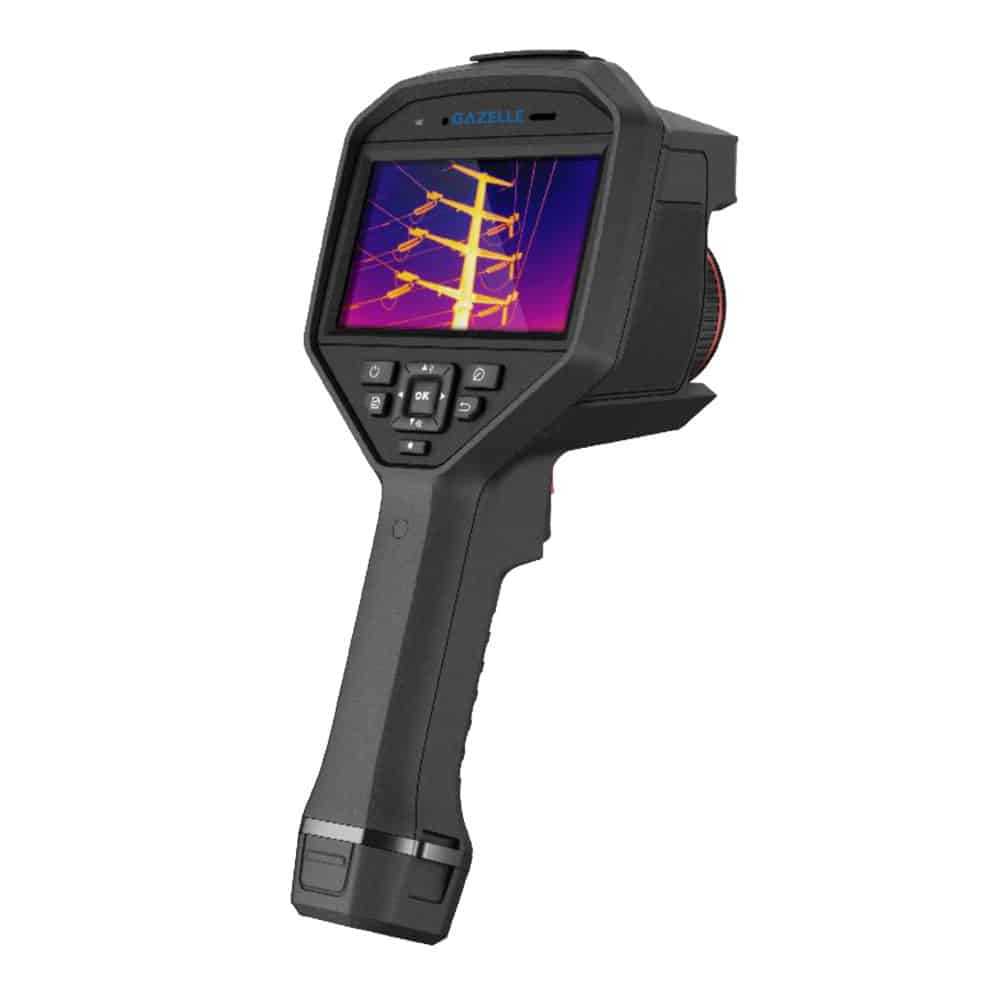

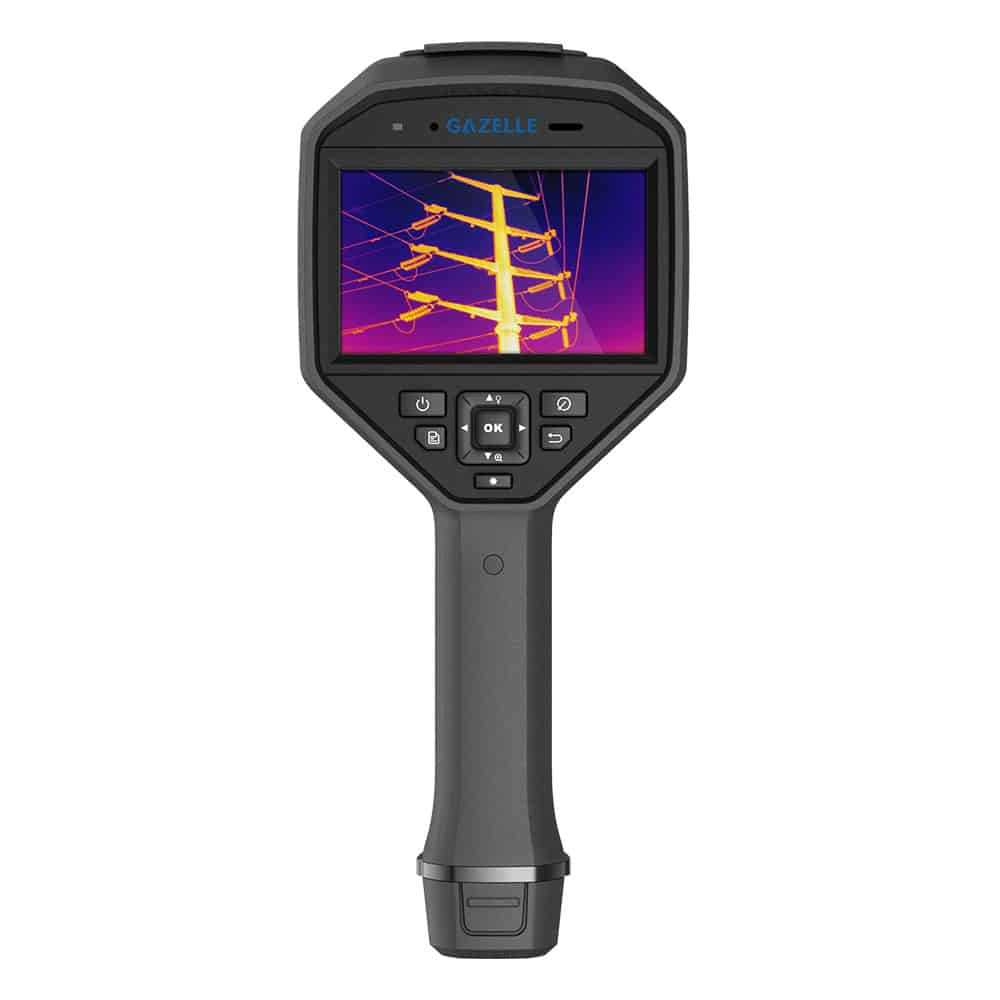

Handheld Thermal Imaging Camera, -20 to 650°C, 640x512 Pixels

Model # G9706
10+ Ratings
AED 27,300.00Incl. of VAT
Limited Stock
Gazelle Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25
This item is eligible for return.
delivery
Delivery
Monday, Feb 17
FREE
Click & Collect
Click & Collect
Today, 9:00 AM - 4:30 PM

You may also like...

Product Information

Gazelle G9706 Handheld Thermal Imaging Camera, -20 to 650°C, 640x512 Pixels is a product engineered with precision, delivering exceptional performance

with features like thermal resolution 640 x 512 327 680 pixels, nETD x3C 35 mK @ 25 °C F10 and temperature measurement range 20 °C to 650 °C 4 °F to 1202 °F.
Maintive brings to you 100% genuine Thermal Cameras from Gazelle at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order G9706 Handheld Thermal Imaging Camera, -20 to 650°C, 640x512 Pixels today at the best price only from Maintive.

Features

  • Thermal resolution: 640 x 512 (327 680 pixels)
  • NETD: < 35 mK (@ 25 °C, F#=1.0)
  • Temperature measurement range: -20 °C to 650 °C (-4 °F to 1202 °F)
  • Accuracy: Max (±2 °C/3.6 °F, ±2%)
  • Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
  • Auto/Manual/Laser focus
  • 50 Hz image frequency
  • 4.3” LCD touch screen display
  • 8 MP optical camera
  • Up to 4 hours continuous running

Items Included

  • Quick Start Guide (x1)
  • Type-C Cable (x1)
  • Hand Strap (x1)
  • CVBS Cable (x1)
  • Charging Base (x1)
  • Battery (x2)
  • Micro SD Card (x1)
  • Box (x1)
  • Tools Package (x1)
  • Charger (x1)
  • Lens Cover (x1)

Specifications

  • Temperature Range-20 to 650°C
  • IR Resolution640x512 pixels
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Pitch17µm
  • Field of View25°x19°
  • Focal Length25mm
  • Spatial Resolution (IFOV)0.68mrad
  • ApertureF1.1
  • Image Frequency50Hz
  • Warranty1 year manufacturer's warranty

Downloads

pdf Thumbnail
Datasheet 1
pdf Thumbnail
User Manual 1
pdf Thumbnail
User Manual 2
