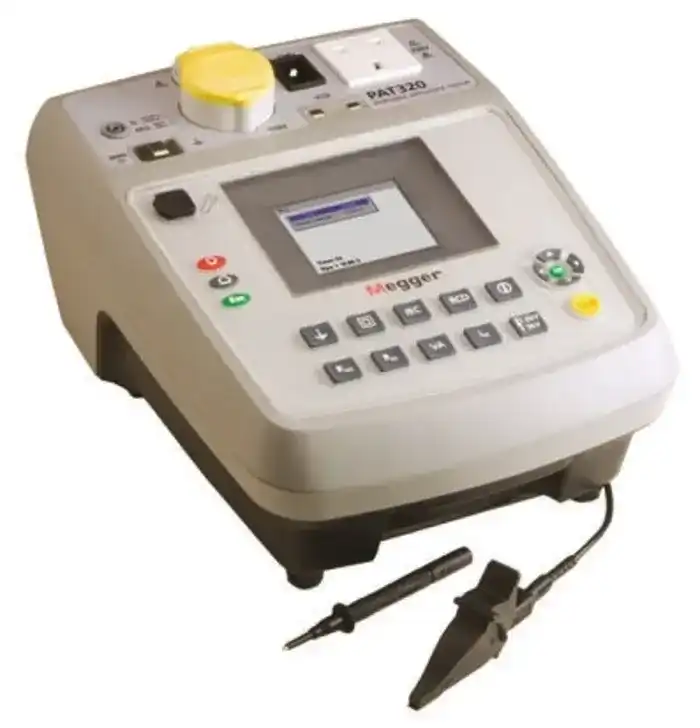

Megger 1000-740 PAT320-UK Portable Appliance Testing, Capable of Testing 110 V and 230 V Appliances is a product engineered with precision, delivering exceptional performance
with features like automatic and Manual testing options, high resolution back lit colour display with all the test details displayed before during and after testing and fast restart after temporary disconnection ie between test locations.
Maintive brings to you 100% genuine Portable Appliance Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1000-740 PAT320-UK Portable Appliance Testing, Capable of Testing 110 V and 230 V Appliances today at the best price only from Maintive.
Features
Automatic and Manual testing options
High resolution back lit colour display with all the test details displayed before, during and after testing
Fast re-start after temporary disconnection (i.e. between test locations)
200mA; 10A and 26A bond testing
250V and 500V insulation testing (suitable for surge-protected extension leads)
Testing of Class I, Class II, IEC leads extension leads and portable RCDs
Push-button operation for test groups or individual test functions
Built-in fuse checker
Differential, touch and substitute leakage test options
Electrical supply, 99V AC to 253V AC 50Hz and 60Hz
Safety rating: IEC 61010 and IEC 61557 CAT II 300V to Earth

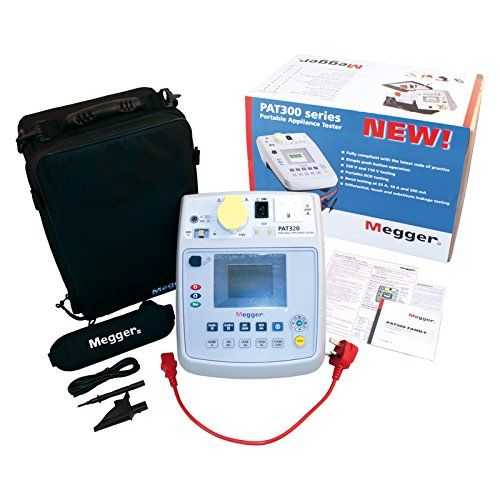

Items Included
Carrying Case
Earth Bond Test Lead
IEC Lead
Manual on CD-ROM
Megger PAT320 PAT Tester
Operating Instructions
Probe and Crocodile Clip
Specifications
Continuity Test Voltage 4.0 V d.c. -0% +10% (open circuit)
Continuity Test Current 200 mA -0% +10% ±5 mA (into 2 Ω load)
Continuity Test Accuracy ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
Continuity Test Display Range 0.01 to 19.99 Ω
Insulation Test Voltage 250 V DC / 500 V DC
Insulation Test Accuracy ±3% ± 10 digits (0 to 19.99 MΩ)
Insulation Test Display Range 0.10 MΩ to 99.99 MΩ
Substitute Leakage Test Voltage < 50 V AC
Substitute Leakage Test Display Range 0.10 to 19.99 mA
Portable RCD Testing Voltage Nominal mains
Weight 4.5 kg
Dimensions175x320x250mm
Warranty1 Year
Continuity Test Voltage 4.0 V d.c. -0% +10% (open circuit)
Continuity Test Current 200 mA -0% +10% ±5 mA (into 2 Ω load)
Continuity Test Accuracy ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
Continuity Test Display Range 0.01 to 19.99 Ω
Insulation Test Voltage 250 V DC / 500 V DC
Insulation Test Accuracy ±3% ± 10 digits (0 to 19.99 MΩ)
Insulation Test Display Range 0.10 MΩ to 99.99 MΩ
Substitute Leakage Test Voltage < 50 V AC
Substitute Leakage Test Display Range 0.10 to 19.99 mA
Portable RCD Testing Voltage Nominal mains
Weight 4.5 kg
Dimensions175x320x250mm
Warranty1 Year
