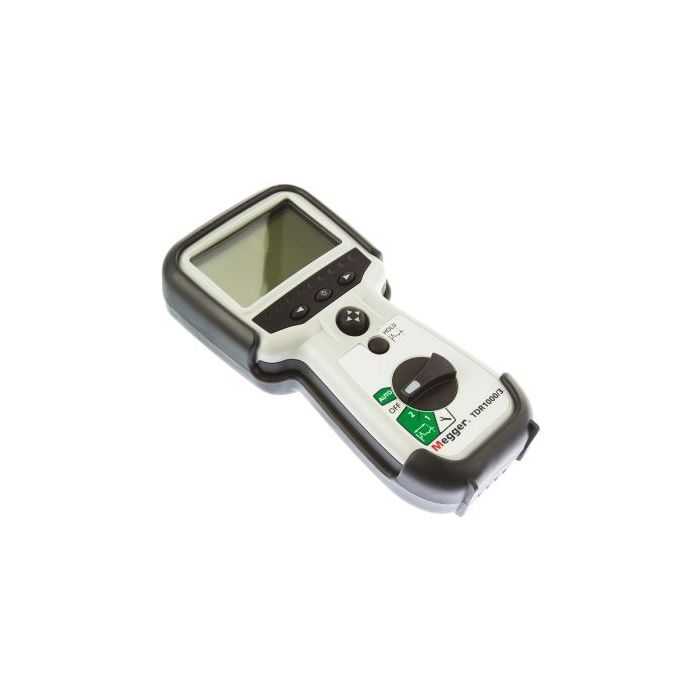

Megger 1001-789 TDR1000/3P Handheld Time Domain Reflectometers, Ultra Fast Pulse with Auto Setup, Retractable Sheath Fused Test Lead (1 pair) is a product engineered with precision, delivering exceptional performance
with features like simple operation, aUTO set up for instant use and ultra fast pulse for near end fault identification.
Maintive brings to you 100% genuine Cable Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1001-789 TDR1000/3P Handheld Time Domain Reflectometers, Ultra Fast Pulse with Auto Setup, Retractable Sheath Fused Test Lead (1 pair) today at the best price only from Maintive.
Features
Simple operation
AUTO set up for instant use
Ultra fast pulse for near end fault identification
Trace HOLD feature to allow comparison between cables
IP54 rating offers real life working
Designed for use on all metallic cable pairs
Backlit graphics monochrome LCD (256 x 128)
Adjustable display contrast
Resolution to 0.1 m
For use on Telecom TNV-3 circuit, or 150 V CAT IV power circuits
Power blocking filter not required
Auto selected output impedance (between 25, 50, 75 and 100 Ω)
2 ns pulse for near end fault location
AUTO option selecting gain and pulse for each range
Display distance in metres or feet
Uses five AA (LR6) primary cells
Items Included
Megger TDR1000/3P Single Channel Cable
Fault Locator
Hard Carry Case
Fused Test Lead Set
User Guide CD
Specifications
Range 10 m, 25 m, 100 m, 250 m, 1000 m, 2500 m, 5000 m
Accuracy ±1% of range ± pixel at 0.67 VF
Connectors Two 4 mm-safety terminals
Operating temperature range and humidity -15 ºC to +50 ºC (5 ºF to 122 ºF)
Storage temperature range and humidity -20 ºC to 70 ºC (-4 ºF to 158 ºF
Battery Five LR6 (AA) type batteries, Manganese alkali or nickel metal-hydride cells
Dimensions 48x115x230mm
Weight 600g
Warranty2 Year
Range 10 m, 25 m, 100 m, 250 m, 1000 m, 2500 m, 5000 m
Accuracy ±1% of range ± pixel at 0.67 VF
Connectors Two 4 mm-safety terminals
Operating temperature range and humidity -15 ºC to +50 ºC (5 ºF to 122 ºF)
Storage temperature range and humidity -20 ºC to 70 ºC (-4 ºF to 158 ºF
Battery Five LR6 (AA) type batteries, Manganese alkali or nickel metal-hydride cells
Dimensions 48x115x230mm
Weight 600g
Warranty2 Year
