PCE Instruments BTM 2000 Handheld Belt Tension Gauge, 10-900Hz is a product engineered with precision, delivering exceptional performance
with features like measurement of the oscillation frequency of the drive belt, intuitive controls|Calculation of the tension force and display of the belt tension in N.
Maintive brings to you 100% genuine Force Gauges from PCE Instruments at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order BTM 2000 Handheld Belt Tension Gauge, 10-900Hz today at the best price only from Maintive.
Features
Measurement of the oscillation frequency of the drive belt
Intuitive controls|Calculation of the tension force
Display of the belt tension in N
6 menu languages
Memory for 750 measured values

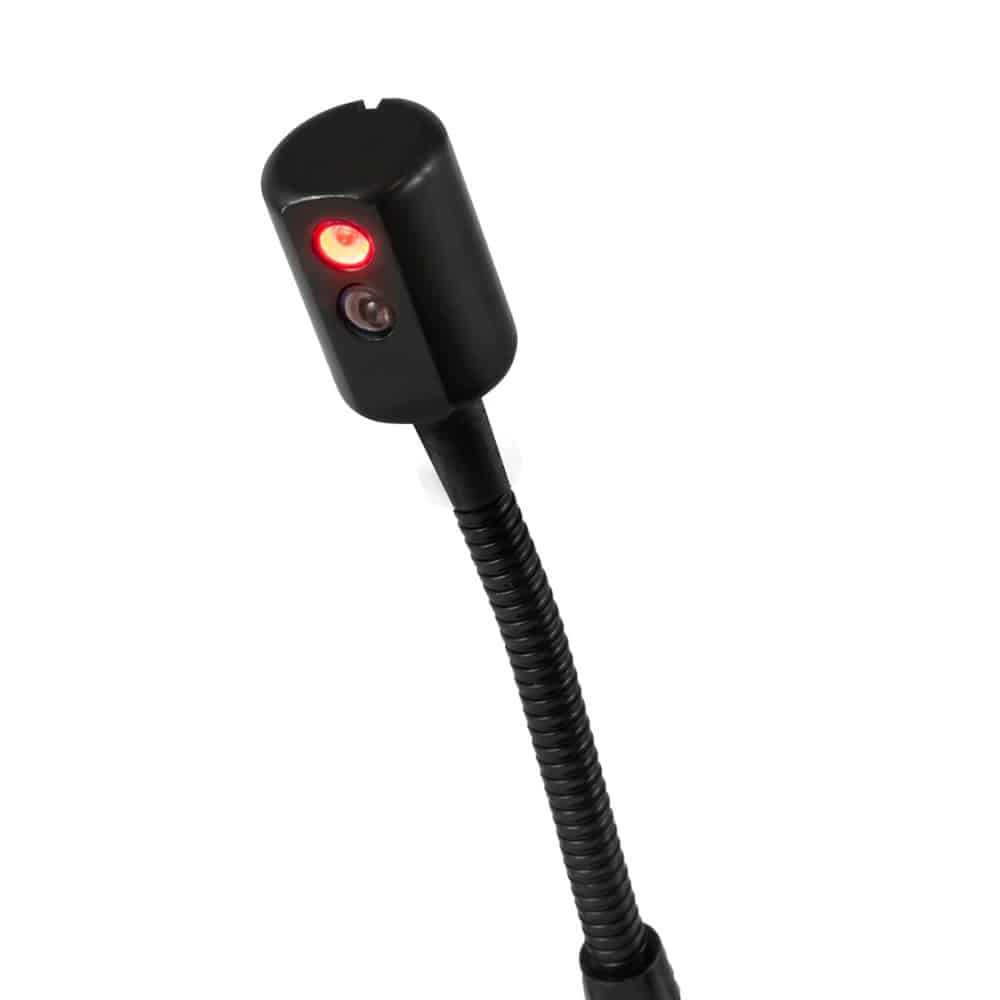

Sensor on gooseneck
Input of belt length and belt mass
Items Included
1x NDT Test Meter / Belt Frequency Meter PCE-BTM 2000
1x Standard sensor head
1x Magnetic holder
3x 1.5 V AAA battery
1x Operating instructions
1x Carrying bag
Specifications
Measuring range10 ... 900 Hz
Accuracy± (1% of rdg. + 4 digits)
Repeatability accuracy± 1 Hz
Resolution<100 Hz: 0.1 Hz >100 Hz: 1 Hz
Belt lengthmax. 9,999 m
Belt massmax. 9,999 kg/m
Sensor length16 cm / 6,2 in
Memory750 measured values (15 sets of 50 measuring points)
