AED 168.00Incl. of VAT
In Stock
0% installments available on purchases of AED 500 or more. Learn more
Use Coupon Code: WELCOME25
Key Features
- Brand: Uni-T
- Model: UT203+
- AC Current Range: 40.00A/400.0A
- AC Voltage: 4.000V/40.00V/400.0V/600V
- Jaw Size: 28mm
- Safety Rating: CAT II 600V, CAT III 300V
- Warranty: 1 year manufacturer's warranty
This item is eligible for return.
FREE delivery in the UAE
Delivery
Wednesday, Oct 9
FREE
Click & Collect
Today, 9:00 AM - 4:30 PM
Want it Today?
Select Click & Collect on checkout within the next 10 Hours, 1 minutes.
Select Click & Collect on checkout within the next 10 Hours, 1 minutes.
COD![Visa]()
![Mastercard]()
You may also like...
Product Information

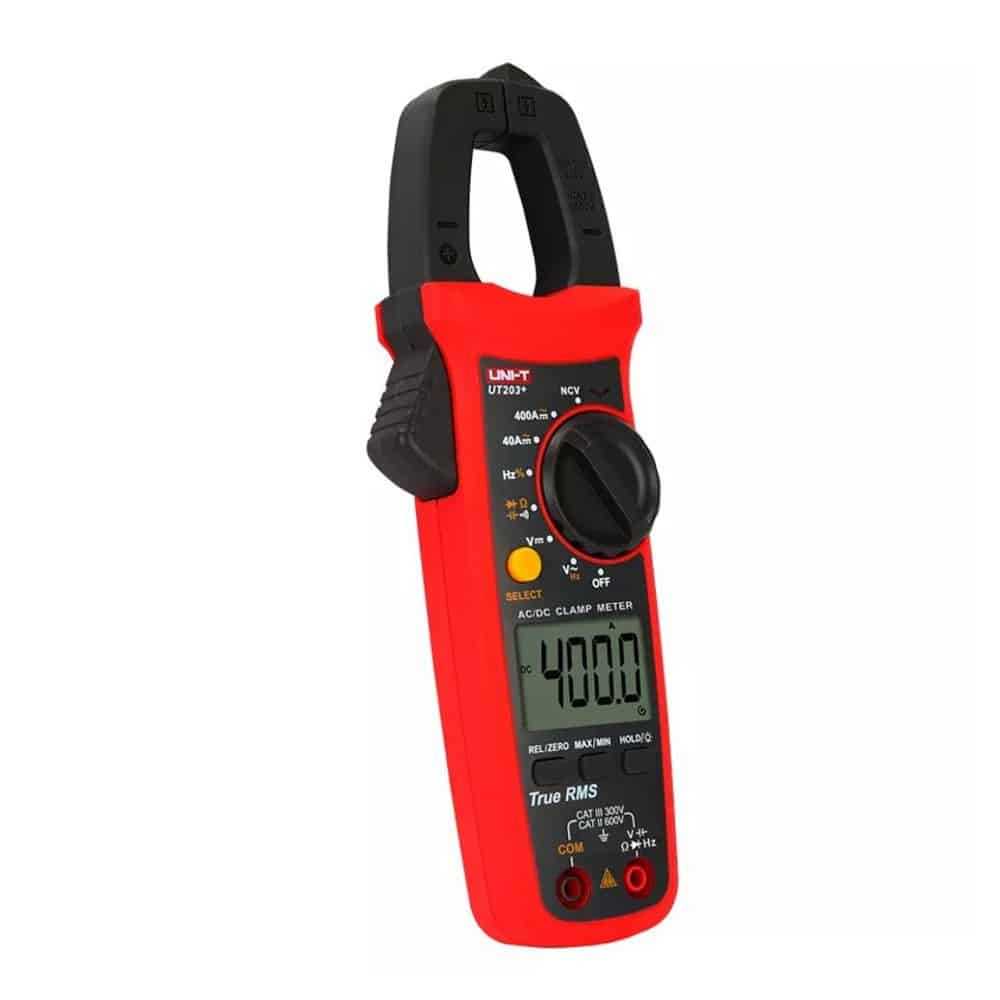

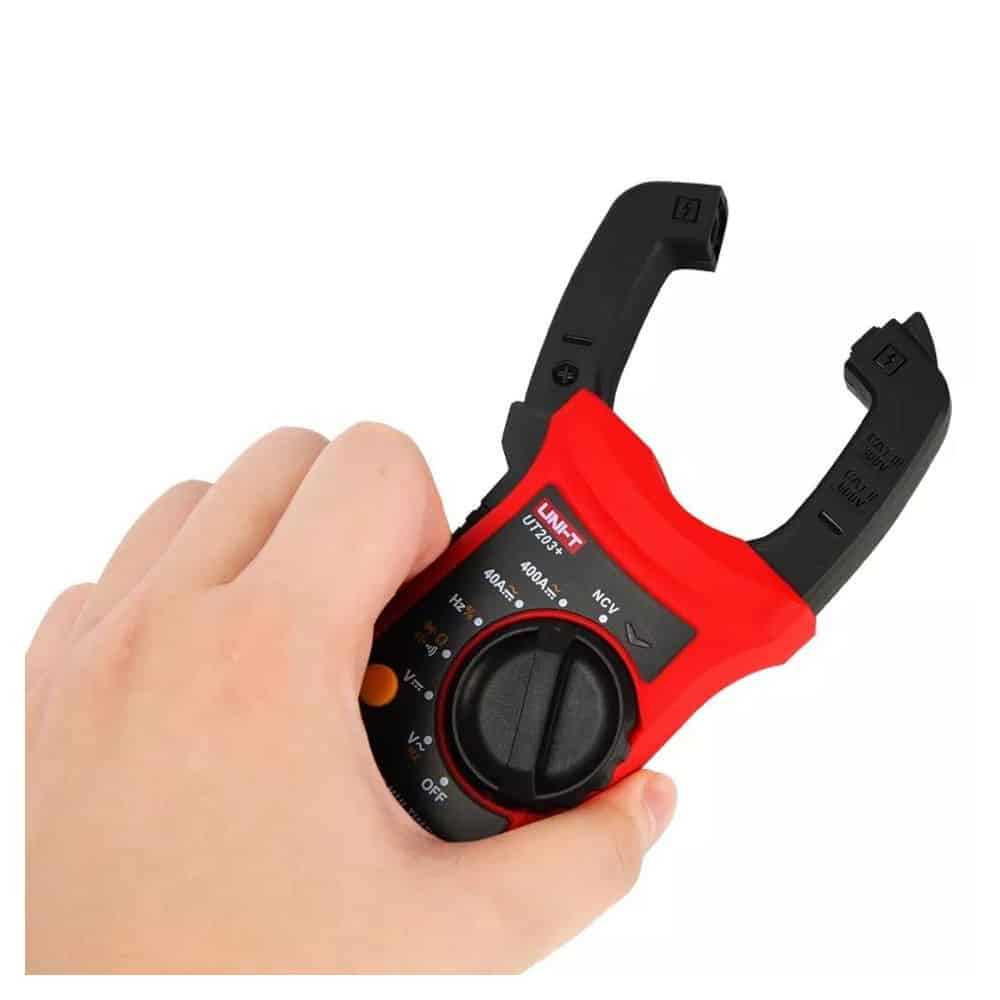

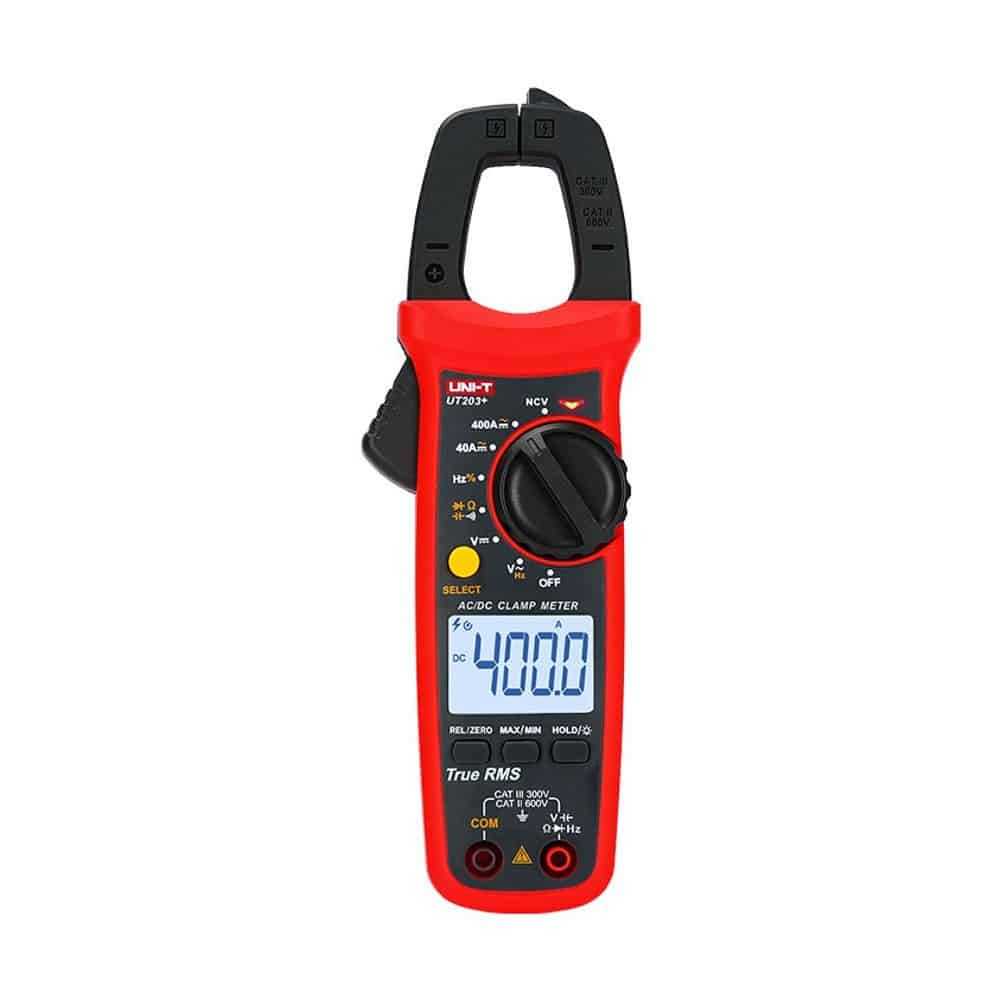

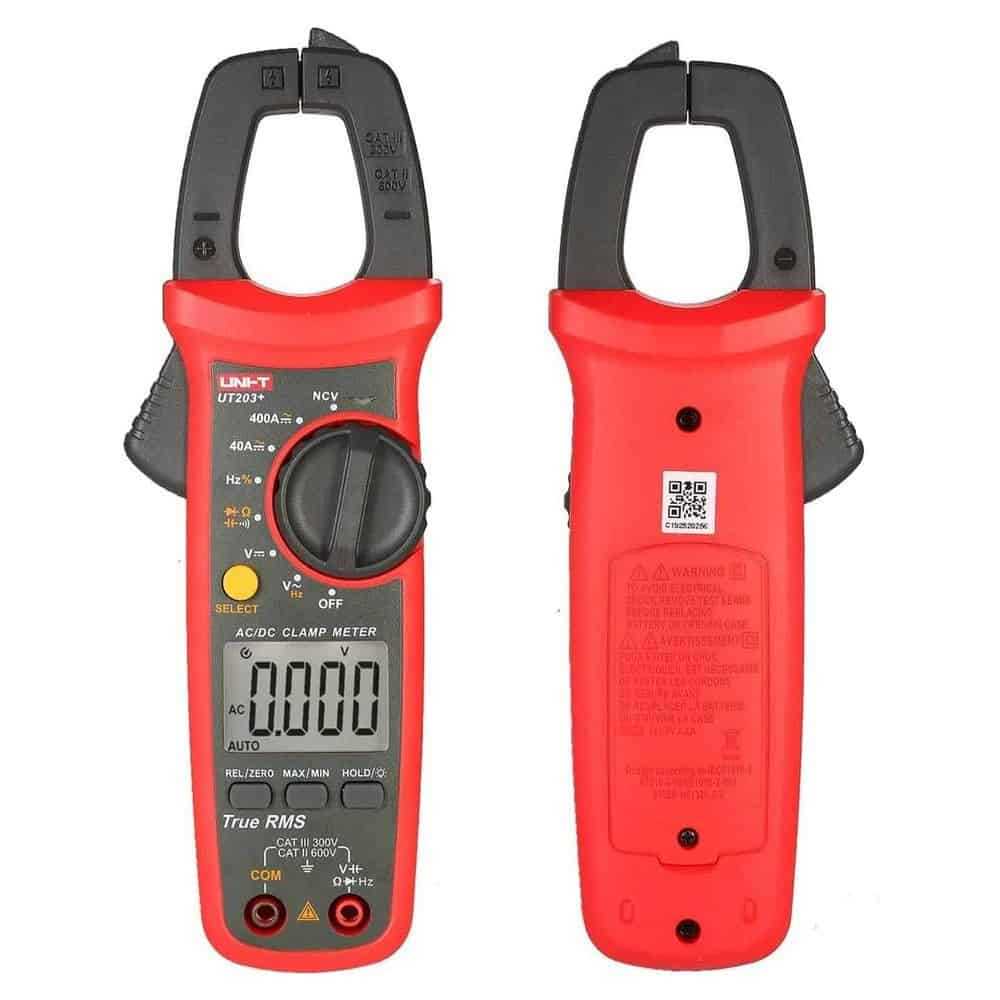

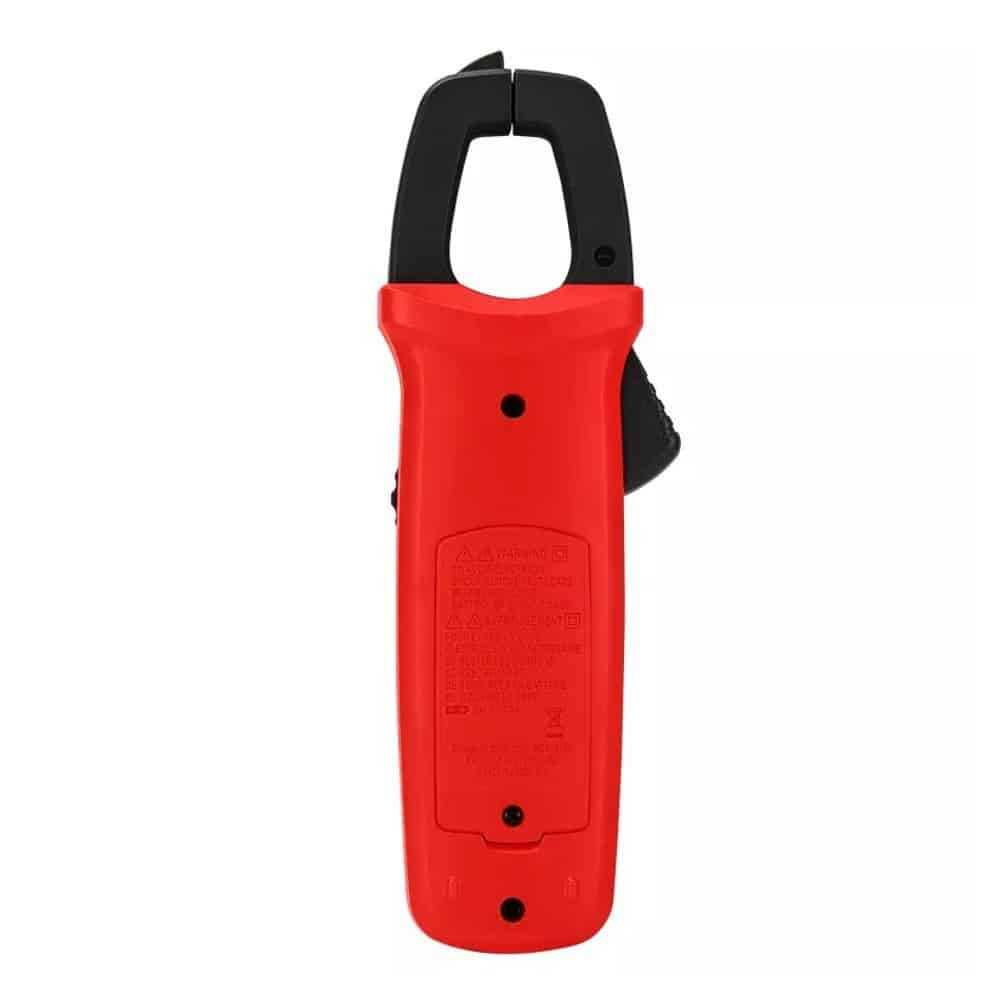

Uni-T UT203+ Digital Clamp Meter, 400A, 28mm Jaw, CAT II 600V is a product engineered with precision, delivering exceptional performance
with features like multifunctional Clamp Meter can be used to measure ACDC current ACDC voltage resistance capacitance frequency duty cycle relative value MaxMin value continuity test and diode test, measuring Range 400A ACDC current 600V ACDC voltage 40MΩ resistance 40mF capacitance 10Hz10MHz frequency and 0199 duty cycle and data Hold x26 MaxMin hold the measured data for conveniently checking or observing data.
Maintive brings to you 100% genuine Clamp Meters from Uni-T at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order UT203+ Digital Clamp Meter, 400A, 28mm Jaw, CAT II 600V today at the best price only from Maintive.Features
- Multifunctional Clamp Meter: can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, relative value, Max/Min value, continuity test, and diode test.
- Measuring Range: 400A AC/DC current, 600V AC/DC voltage, 40MΩ resistance, 40mF capacitance, 10Hz~10MHz frequency, and 0.1%~99% duty cycle.
- Data Hold & Max/Min: hold the measured data for conveniently checking or observing data.
- Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
Items Included
- Gift box, Carring bag, English manual
Specifications
- AC Current Range40.00A/400.0A
- AC Voltage4.000V/40.00V/400.0V/600V
- Jaw Size28mm
- Safety RatingCAT II 600V, CAT III 300V
- AC Current Resolution0.01A/0.1A
- DC Current Range40.00A/400.0A
- DC Current Resolution0.01A/0.1A
- AC Voltage Resolution0.001V/0.01V/0.1V/1V
- AC Voltage Frequency10Hz:60kHz
- AC Voltage Frequency Resolution0.01Hz:0.01kHz
- DC Voltage Range400.0mV/4.000V/40.00V/400.0V/600V
- DC Voltage Resolution0.1mV/0.001V/0.01V/0.1V/1V
- Resistance Range400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
- Resistance Resolution0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
- Resistance Resolution0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
- Capacitance Range40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF/40.00mF
- Capacitance Resolution0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
- Frequency Range10Hz:10MHz
- Frequency Resolution0.01Hz:0.01MHz
- Duty Cycle Range0.1%:99%
- Duty Cycle Resolution0.1%
- Operating Temperature0:30℃(humidity ≤ 80%RH), 30:40℃(humidity ≤ 75%RH), 40:50℃(humidity ≤ 45%RH)
- Storage Temperature & Humidity-20:60°C, ≤ 80%RH
- Display CountMax. 4000
- Warranty1 year manufacturer's warranty
