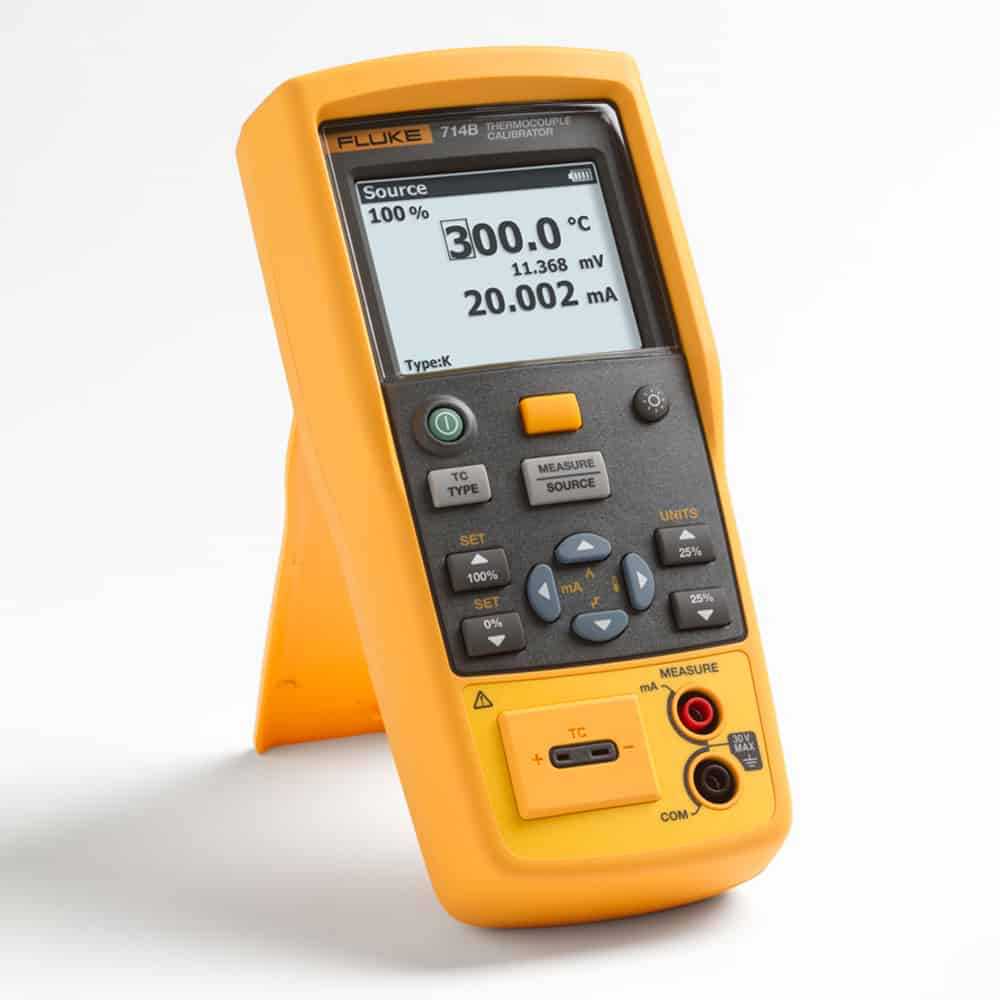

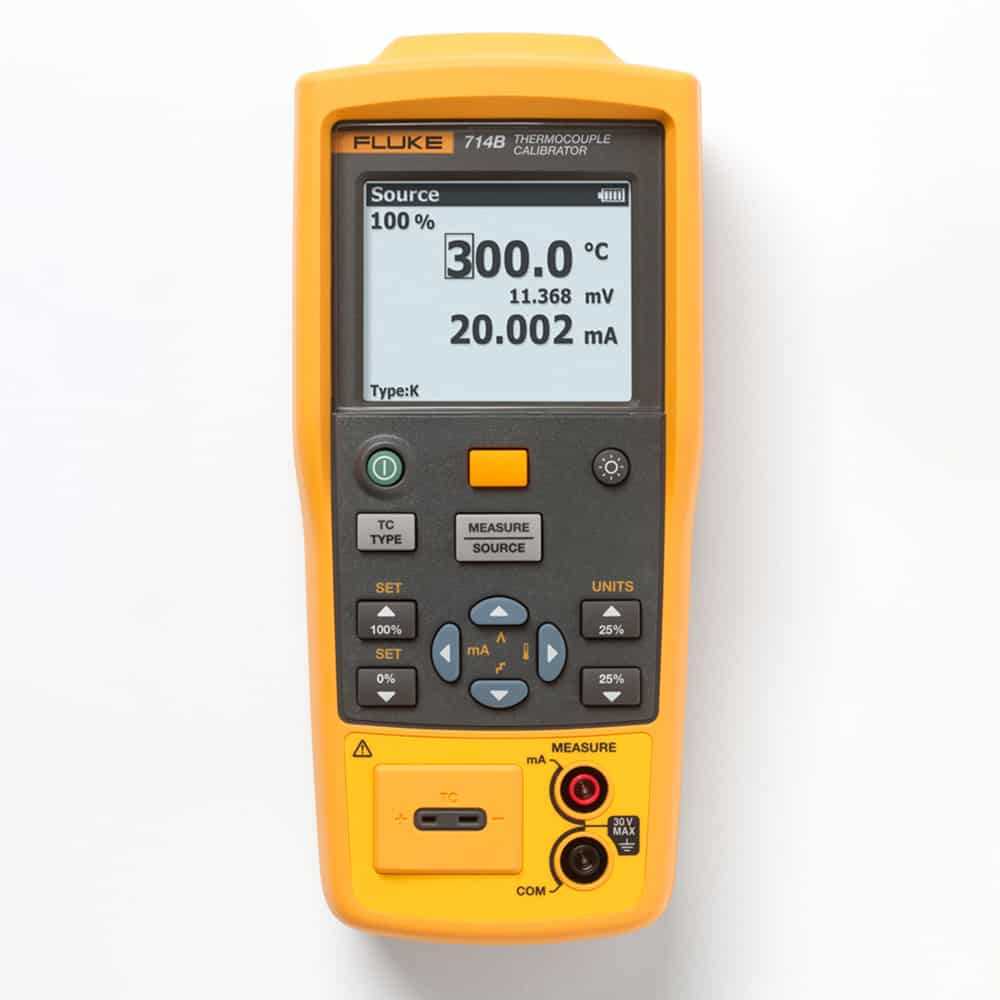

Fluke 714B Thermocouple Calibrator, 17 Thermocouple Types is a product engineered with precision, delivering exceptional performance
with features like capable of measuring and simulating 17 different RTD types and resistances, measures 4 to 20 mA signals while simultaneously sourcing a temperature signal and the 714B can measure and simulate 17 different thermocouple types and millivolts.
Maintive brings to you 100% genuine Temperature Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 714B Thermocouple Calibrator, 17 Thermocouple Types today at the best price only from Maintive.
Features
Capable of measuring and simulating 17 different RTD types and resistances.
Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal.
The 714B can measure and simulate (17) different thermocouple types and millivolts

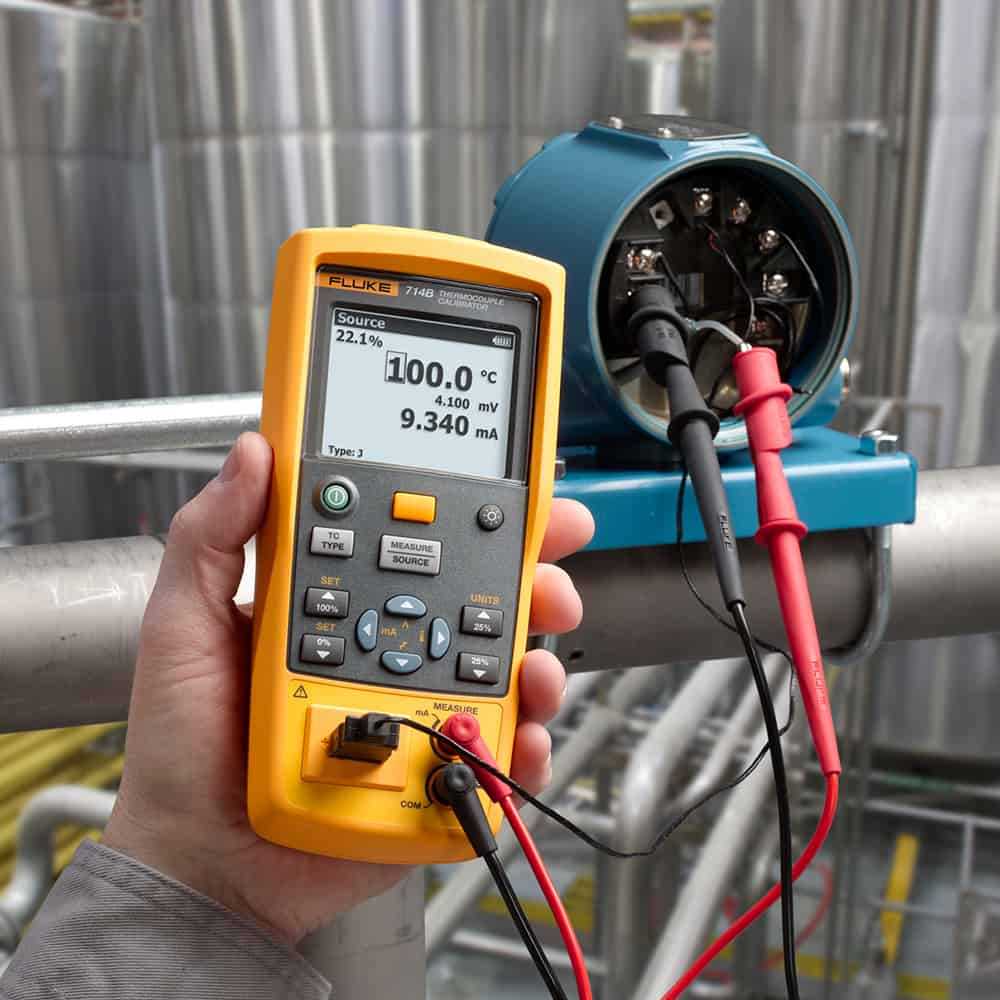

Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
Comes with a magnetic hanger for convenient hands-free operation
Features configurable source settings for quick linearity checks
Includes Magnetic hanging tool Batteries Manual Traceable calibration certificate Test Leads
3 Years
Specifications
Current Measurement0 to 24mA
Resistance Measurement0 to 4000Ω
Maximum voltage applied between any terminal and earth ground or between any two terminals30 V
Operating temperature-10°C to 50°C
Storage temperature-30°C to 60°C
Relative humidity (% RH operating without condensation)Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
Vibration requirementsMIL-T-28800E, Class 2
Electromagnetic EnvironmentIEC 61326-1, Portable
Power supply4 x AA NEDA 1.5A IEC LR6 Batteries
Dimensions52.5 x 84 x 188.5mm
Warranty3 years warranty against manufacturing defect only
Current Measurement0 to 24mA
Resistance Measurement0 to 4000Ω
Maximum voltage applied between any terminal and earth ground or between any two terminals30 V
Operating temperature-10°C to 50°C
Storage temperature-30°C to 60°C
Relative humidity (% RH operating without condensation)Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
Vibration requirementsMIL-T-28800E, Class 2
Electromagnetic EnvironmentIEC 61326-1, Portable
Power supply4 x AA NEDA 1.5A IEC LR6 Batteries
Dimensions52.5 x 84 x 188.5mm
Warranty3 years warranty against manufacturing defect only
