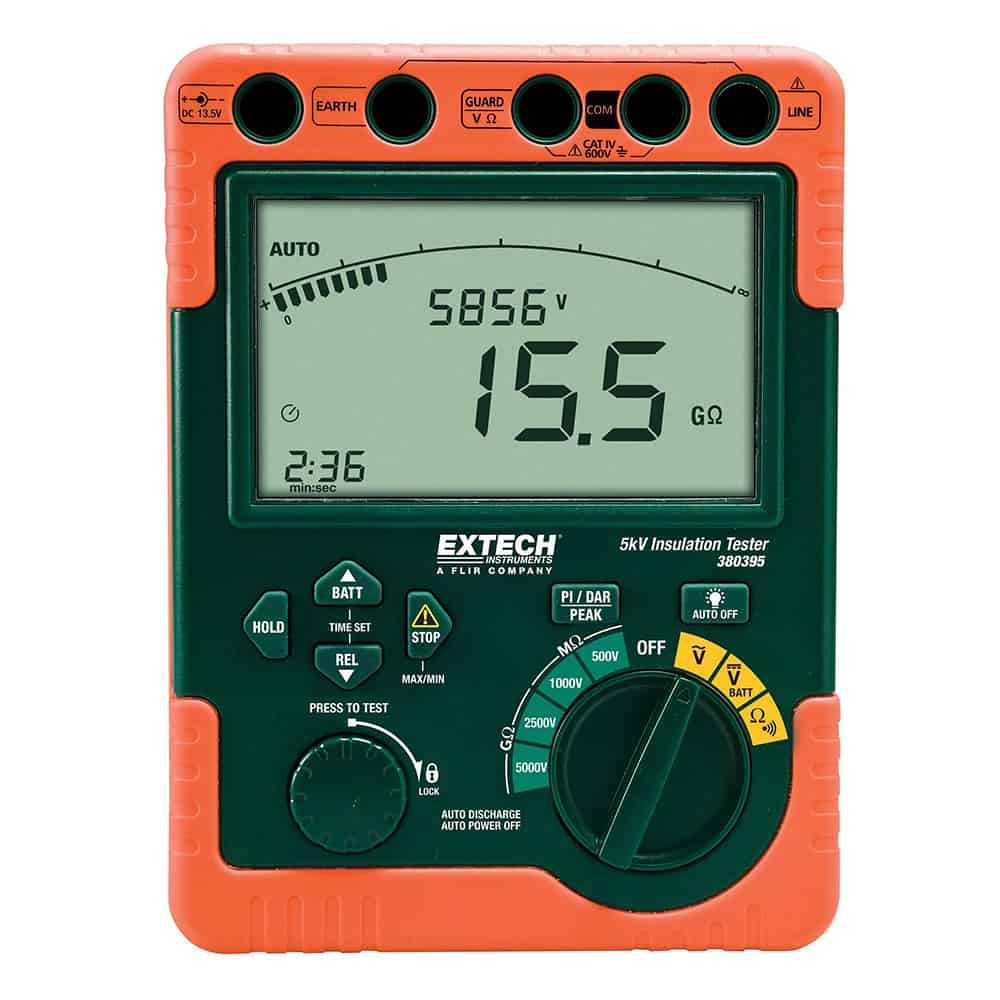

Extech 380396 Digital Insulation Tester, CAT IV 600V, 500V - 5000V is a product engineered with precision, delivering exceptional performance
with features like test Voltages of 500V 1000V 2500V and 5000V, measure Insulation Resistance to 60GOhm and large 6000 count display with bargraph and backlight.
Maintive brings to you 100% genuine Insulation Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 380396 Digital Insulation Tester, CAT IV 600V, 500V - 5000V today at the best price only from Maintive.
Features
Test Voltages of 500V, 1000V, 2500V, and 5000V
Measure Insulation Resistance to 60GOhm
Large 6000 count display with bargraph and backlight
Polarization Index measurement (PI)
Dielectric Absorption Ratio measurement (DAR)
AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
1 to 15 minute timer function for IR measurements
Resistance measurement
Indication of output voltage and discharge voltage
Items Included
Test leads
8 x C batteries
220V AC adaptor
Heavy duty
Carrying case
Specifications
Test Voltage500V/1000V/2500V/5000V
Insulation Resistance0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
Accuracy±2.5% of reading
AC/DC Voltage0 to 600V
Resistance0 to 600Ω
Accuracy±1.5% of reading
Continuity50Ω
PowerEight type C batteries
Dimensions7.8 x 5.8 x 3.4in (198 x 148 x 86mm)
Weight3.2lb (1438g)
Warranty1 year manufacturer's warranty
Test Voltage500V/1000V/2500V/5000V
Insulation Resistance0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
Accuracy±2.5% of reading
AC/DC Voltage0 to 600V
Resistance0 to 600Ω
Accuracy±1.5% of reading
Continuity50Ω
PowerEight type C batteries
Dimensions7.8 x 5.8 x 3.4in (198 x 148 x 86mm)
Weight3.2lb (1438g)
Warranty1 year manufacturer's warranty
