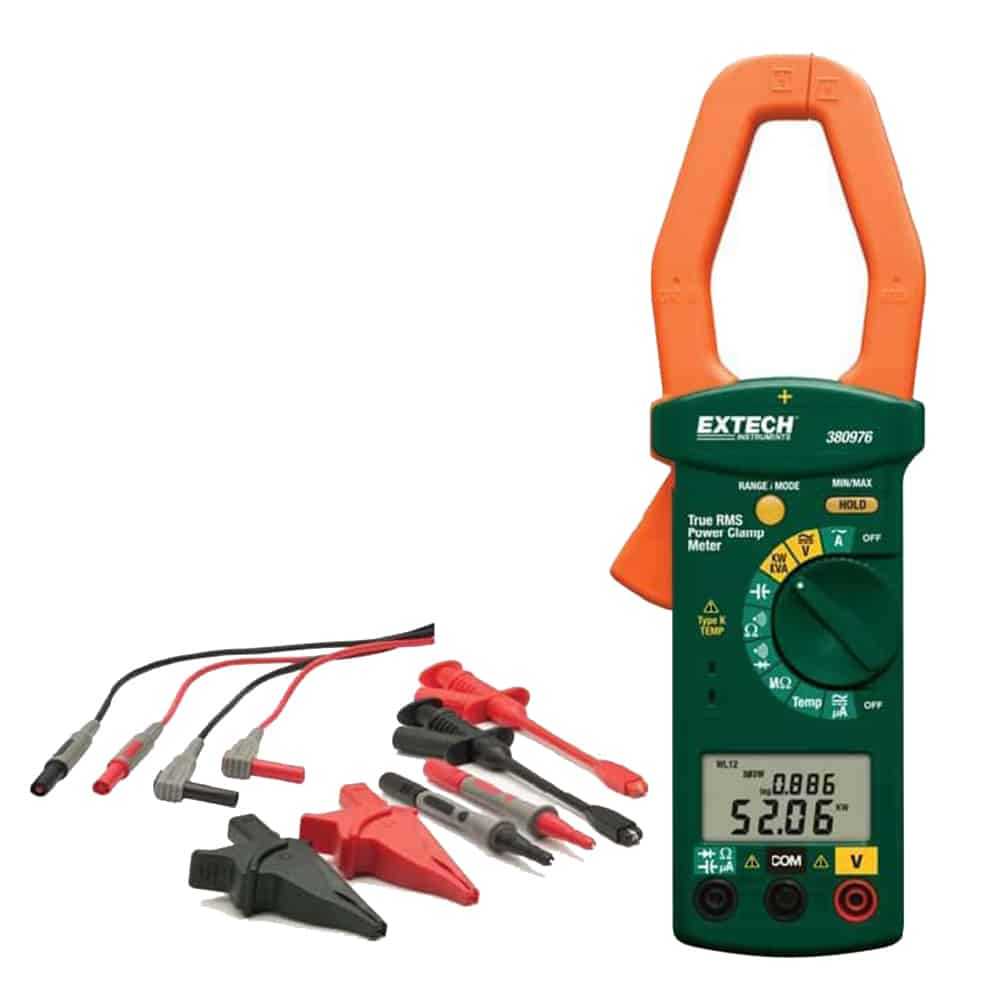

Extech 380976-K
Extech 380976-K
Extech 380976-K

True RMS AC/DC Clamp Meter Kit, 1000A, 40mm Jaw, CAT III 600V, Single/Three Phase

Model # 380976-K
AED 1,134.00Incl. of VAT
Limited Stock
Extech Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25
This item is eligible for return.
delivery
Delivery
Saturday, May 25
FREE
Click & Collect
Click & Collect
Today, 9:00 AM - 4:30 PM

You may also like...

Product Information

Extech 380976-K True RMS AC/DC Clamp Meter Kit, 1000A, 40mm Jaw, CAT III 600V, Single/Three Phase is a product engineered with precision, delivering exceptional performance

with features like 16" 40mm clamp jaw opening and large dual LCD display 9999 count, measures 13Phase True Power kW Apparent Power kVA Reactive Power kVAR Horsepower HP Power Factor and Phase Angle with LeadLag indicator and aC+DC µA current with 10nA resolution for flame rod tests.
Maintive brings to you 100% genuine Clamp Meters from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 380976-K True RMS AC/DC Clamp Meter Kit, 1000A, 40mm Jaw, CAT III 600V, Single/Three Phase today at the best price only from Maintive.

Features

  • 1.6" (40mm) clamp jaw opening and large dual LCD display (9999 count)
  • Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
  • AC+DC µA current with 10nA resolution for flame rod tests
  • Auto Detect AC/DC Voltage measurements with simultaneous frequency display
  • Capacitance to 7000µF with 0.001µF resolution
  • High Resistance tests to 100MOhm
  • Type K, °C/°F switchable, temperature to 1000°F
  • Diode and Continuity tests
  • Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery

Items Included

  • two CAT IV-600V 72” (1.8m) leadextensions with right angle and straight end shrouded bananaplugs
  • two modular test probe handles with stainless steeltips
  • two plunger activated retractable jaw clips
  • two extralarge alligator clips

Specifications

  • AC Current1000A
  • AC Voltage600V
  • Jaw Size40mm
  • Safety RatingCAT IV 600V
  • DC Voltage600V
  • DC Current1000A
  • Frequency1kHz
  • True Power600kW
  • Apparent Power600kVA
  • Reactive Power600kVAR
  • Horsepower800HP
  • Phase Angle-60 to +60°
  • Resistance1000kΩ
  • Resistance100MΩ
  • Capacitance7000µF
  • Temperature (Type K)-50 to 900°C
  • Dimensions228 x 76 x 39mm
  • Weight465g
  • Warranty1 year manufacturer's warranty

Downloads

pdf Thumbnail
Datasheet 1
pdf Thumbnail
User Manual 1
