Extech 381676A Pen Type Digital Multimeter, 200mA, CAT III 600V, Non-Contact Voltage Detection is a product engineered with precision, delivering exceptional performance
with features like fully loaded penstyle meter with 9 functions, ergonomic housing with easy onehand operation rotary function dial and builtin NonContact Voltage NCV detection with visible and audible alarm.
Maintive brings to you 100% genuine Digital Multimeters from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 381676A Pen Type Digital Multimeter, 200mA, CAT III 600V, Non-Contact Voltage Detection today at the best price only from Maintive.
Features
Fully loaded pen-style meter with 9 functions
Ergonomic housing with easy one-hand operation rotary function dial

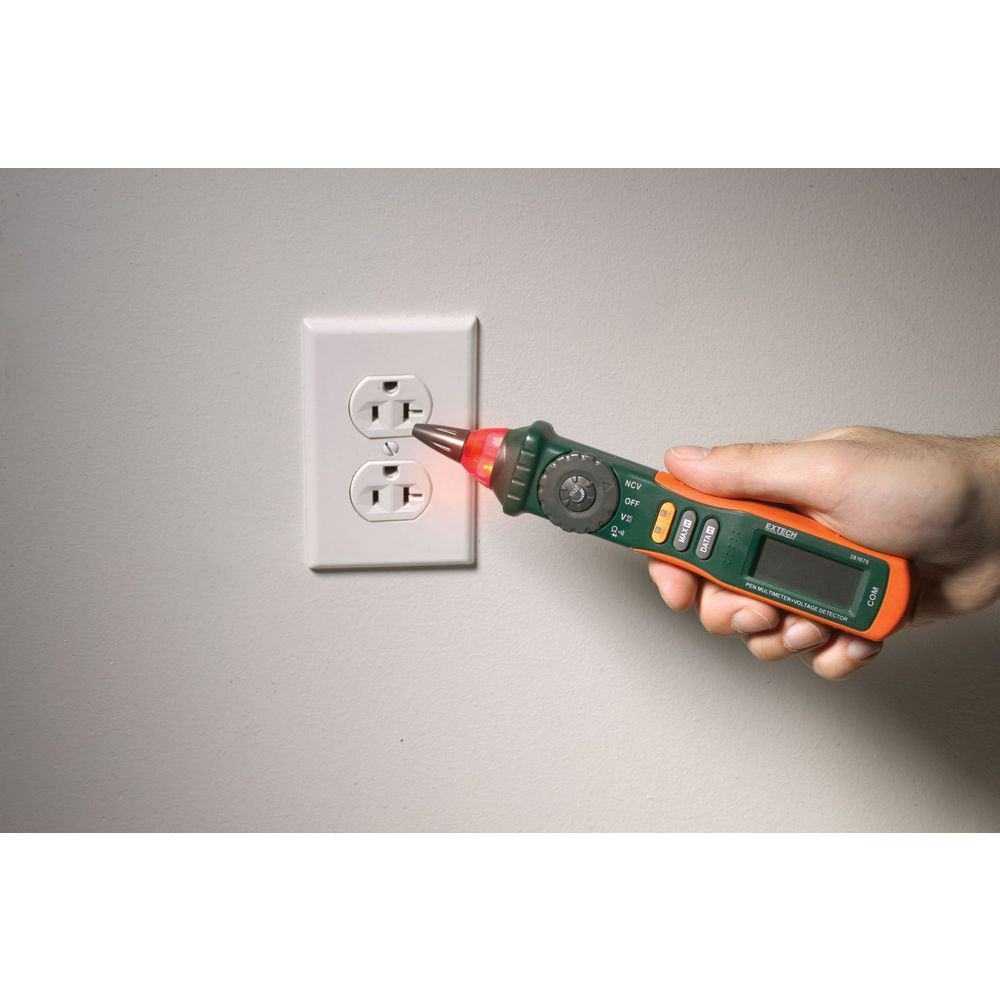

Built-in Non-Contact Voltage (NCV) detection with visible and audible alarm
Autoranging with Data Hold, Range Hold, and Maximum Hold features
Large 2000 count high contrast LCD display
Auto Power Off to conserve battery life
Overrange and low battery indication
CAT III-600V

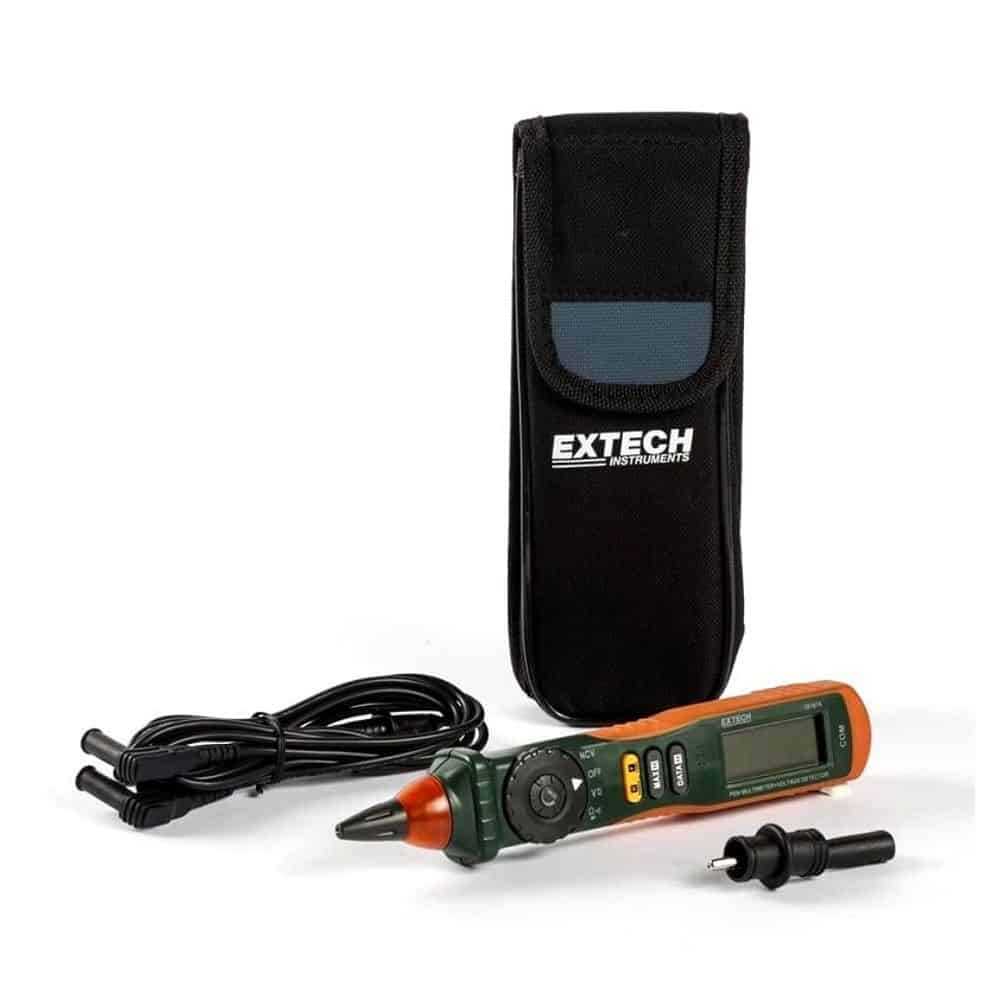

Items Included
2x Test Leads
2x Alligator Clips
2x 1.5V AAA Batteries
Specifications
DC Voltage200mV, 2, 20, 200, 600V
AC Voltage200mV, 2, 20, 200, 600V
DC Current20mA, 200mA
AC Current20mA, 200mA
Resistance200, 2k, 20k, 200k, 2M, 20MΩ
Non-Contact Voltage110VAC
Logic Test0 to 1.5V (Green LED), 1.5 to 3.5V (LED off), 3.5 to 5V (Red LED)
Diode Test1mA @ 1.5V approx
Continuity TestAudible beep <50Ω
Dimensions8.2x1.5x1.1in(208x38x29mm)
Weight4.6oz (129g)
Warranty1 year manufacturer's warranty
DC Voltage200mV, 2, 20, 200, 600V
AC Voltage200mV, 2, 20, 200, 600V
DC Current20mA, 200mA
AC Current20mA, 200mA
Resistance200, 2k, 20k, 200k, 2M, 20MΩ
Non-Contact Voltage110VAC
Logic Test0 to 1.5V (Green LED), 1.5 to 3.5V (LED off), 3.5 to 5V (Red LED)
Diode Test1mA @ 1.5V approx
Continuity TestAudible beep <50Ω
Dimensions8.2x1.5x1.1in(208x38x29mm)
Weight4.6oz (129g)
Warranty1 year manufacturer's warranty
