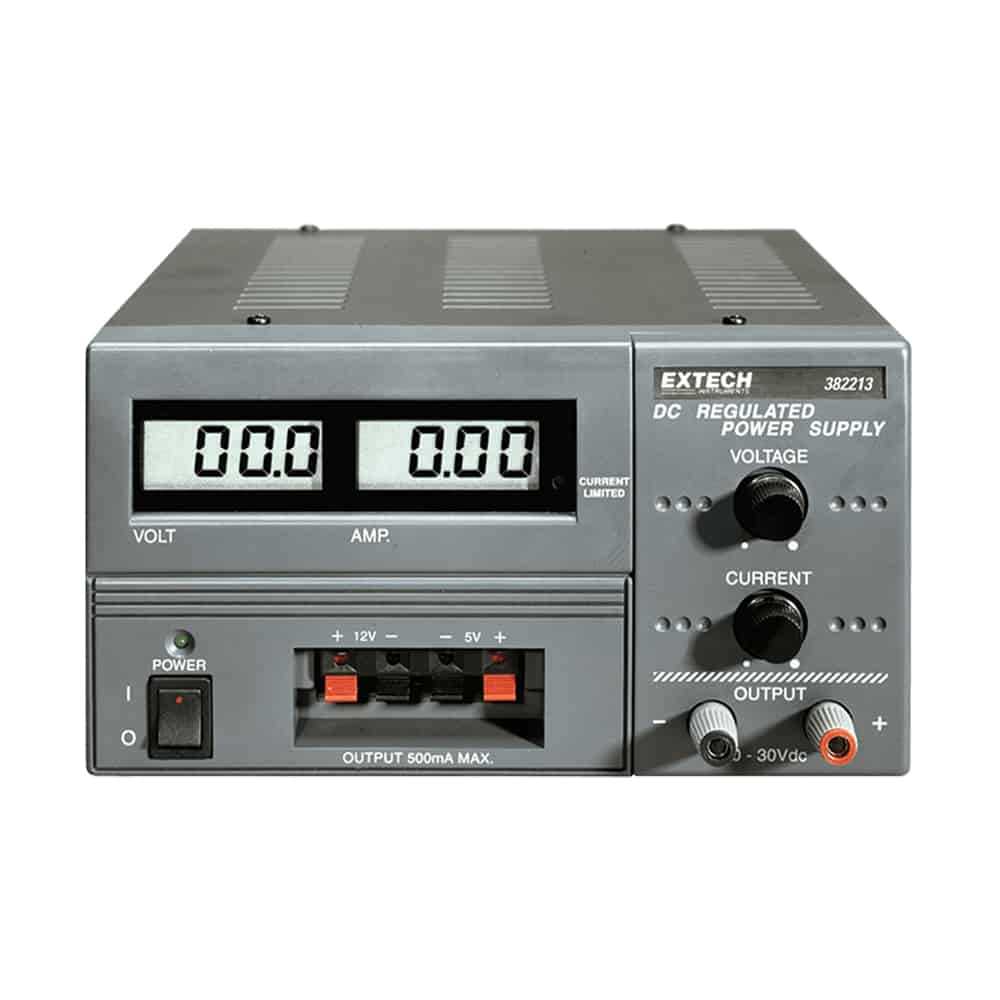

Extech 382213 Digital Triple Output DC Power Supply is a product engineered with precision, delivering exceptional performance
with features like adjustable Voltage and Current output, easy snap terminals for fixed 5V05A and 12V1A outputs and constant Voltage or Current.
Maintive brings to you 100% genuine Power Supplies from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 382213 Digital Triple Output DC Power Supply today at the best price only from Maintive.
Features
Adjustable Voltage and Current output
Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
Constant Voltage or Current
Current limiting indicator
Overload and short circuit protection
Specifications
Display Digital (V&A),3 digit 0.1 res. LCD
DC Voltage/Current Output 0 to 30 Volts/ 0 to 3 Amps
Ripple and Noise <5mV
Line/Load Regulation <0.05%+10mV
Fixed Output Voltage 5V/0.5A (cont.), 1A(max): 12V/0.5A (cont.), 1A(max)
Power 110/220VAC 50/60Hz
Dimensions 6 x 5.6 x 9.5in (152 x 142 x 242)
Weight 11lbs. (5kg)
Warranty1 year manufacturer's warranty
Display Digital (V&A),3 digit 0.1 res. LCD
DC Voltage/Current Output 0 to 30 Volts/ 0 to 3 Amps
Ripple and Noise <5mV
Line/Load Regulation <0.05%+10mV
Fixed Output Voltage 5V/0.5A (cont.), 1A(max): 12V/0.5A (cont.), 1A(max)
Power 110/220VAC 50/60Hz
Dimensions 6 x 5.6 x 9.5in (152 x 142 x 242)
Weight 11lbs. (5kg)
Warranty1 year manufacturer's warranty
