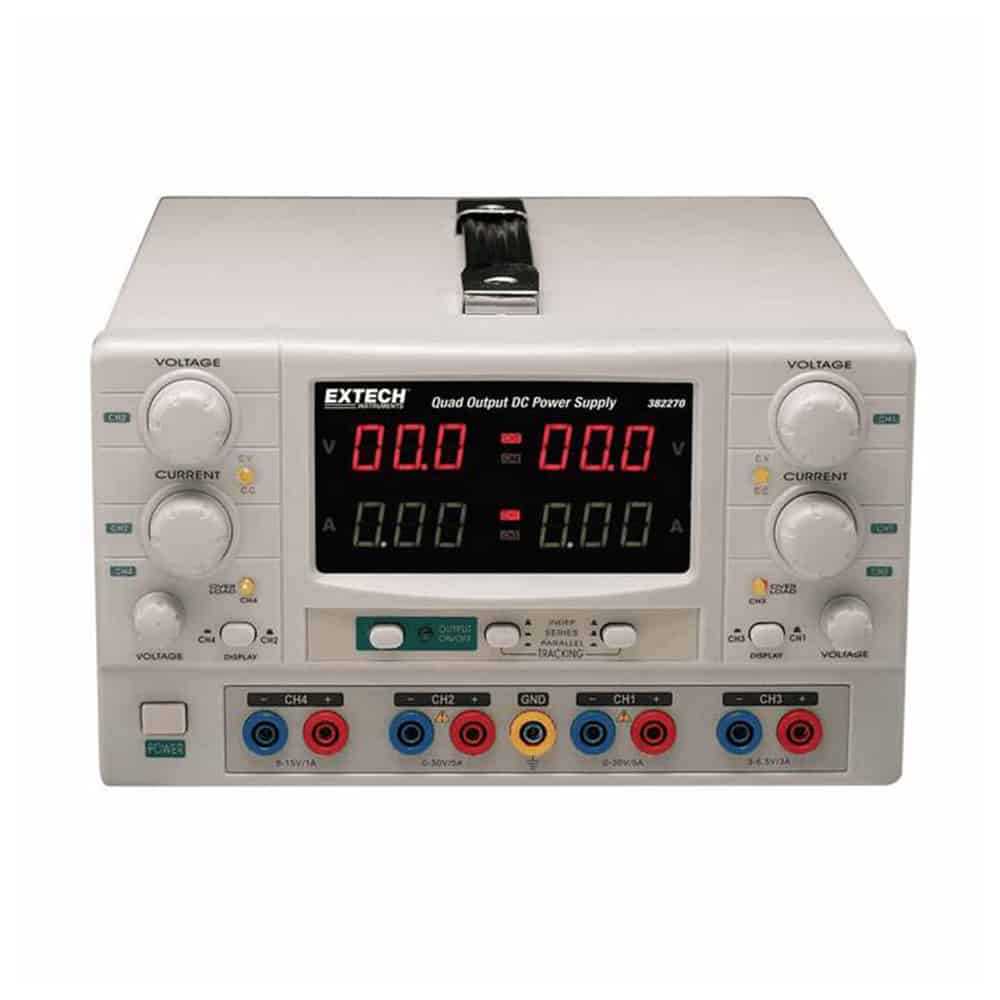

Extech 382270 4-In-1 Quad Output DC Power Supply is a product engineered with precision, delivering exceptional performance
with features like two fully adjustable supplies combined with two auxiliary outputs, two 0 to 30V0 to 5A outputs with selectable Constant Voltage and Constant Current modes and two auxiliary outputs with fixed current of 3 to 65V3A and 8 to 15V1A.
Maintive brings to you 100% genuine Power Supplies from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 382270 4-In-1 Quad Output DC Power Supply today at the best price only from Maintive.
Features
Two fully adjustable supplies combined with two auxiliary outputs
Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A
Items Included
power cord
4 pairs of test leads (banana plug to alligator clip)
Specifications
Output Voltage 0 to 30V, 0 to 30V, 3 to 6.5V,8 to 15V
Output Current 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed)
Load Voltage Regulation 0.5mV ±3mV
Line Voltage Regulation 0.1mV ±3mV
Load Current Regulation 2mA ±5mA
Line Current Regulation 2mA ±3mA
Ripple and Noise <0.5mVrms
Power 110 to 240VAC, 50/60Hz (Switchable)
Dimensions 10.2 x 6.3 x 14.5in (260 x 160 x 370mm)
Weight 26.5lb (12kg)
Warranty1 year manufacturer's warranty
Output Voltage 0 to 30V, 0 to 30V, 3 to 6.5V,8 to 15V
Output Current 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed)
Load Voltage Regulation 0.5mV ±3mV
Line Voltage Regulation 0.1mV ±3mV
Load Current Regulation 2mA ±5mA
Line Current Regulation 2mA ±3mA
Ripple and Noise <0.5mVrms
Power 110 to 240VAC, 50/60Hz (Switchable)
Dimensions 10.2 x 6.3 x 14.5in (260 x 160 x 370mm)
Weight 26.5lb (12kg)
Warranty1 year manufacturer's warranty
