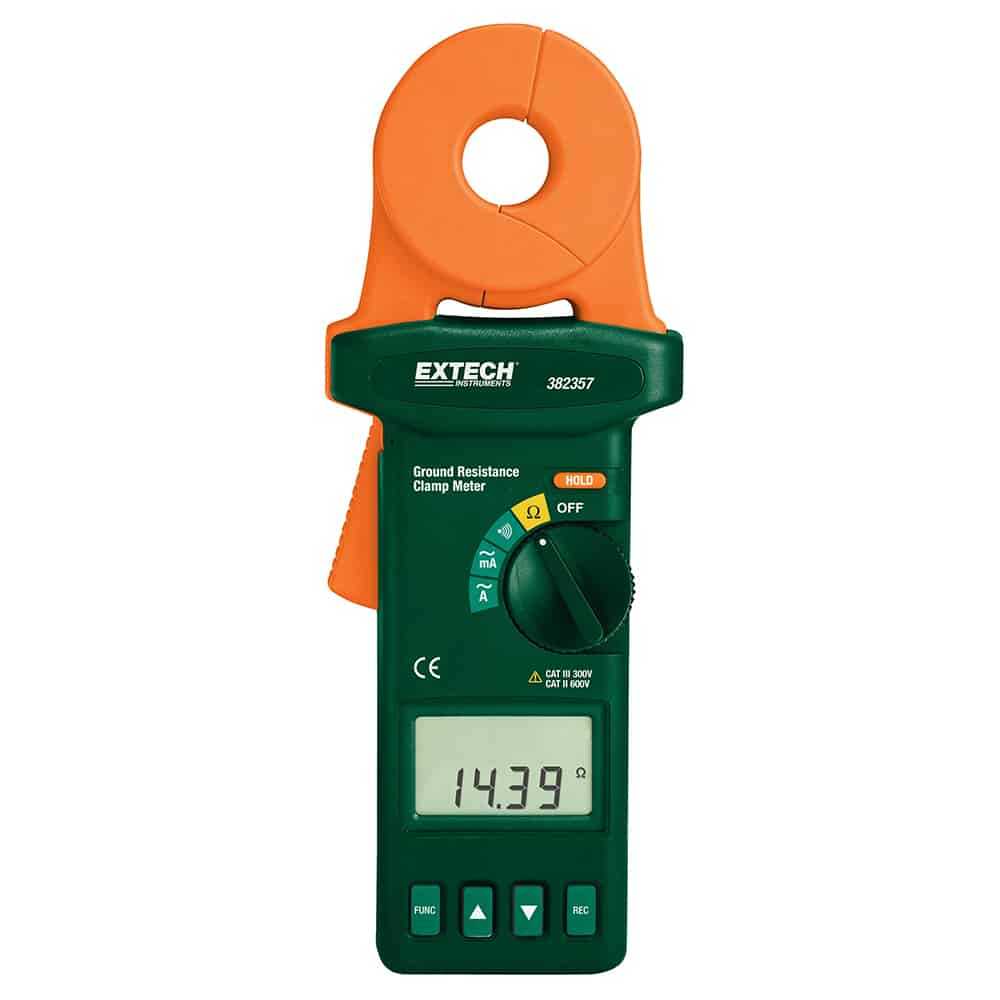

Extech 382357 Clamp-On Ground Resistance Tester, 1500Ω, 1.667kHz is a product engineered with precision, delivering exceptional performance
with features like autoranging ground resistance measurements from 0025Ohm to 1500Ohm with 0002Ohm resolution, true RMS AC Leakage current range of 02mA to 30A with 1000mA resolution and programmable Datalogging with 116 data points.
Maintive brings to you 100% genuine Earth Ground Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 382357 Clamp-On Ground Resistance Tester, 1500Ω, 1.667kHz today at the best price only from Maintive.
Features
Autoranging ground resistance measurements from 0.025Ohm to 1500Ohm with 0.002Ohm resolution
True RMS AC Leakage current range of 0.2mA to 30A with 1.000mA resolution
Programmable Datalogging with 116 data points
Programmable Hi/Lo Alarm
0.9" (23mm) Jaw size for large ground rods
Items Included
9V battery
Resistance check plate
Carrying case
Specifications
Resistance Range0.025 to 0.25Ω, 0.002Ω
Accuracy±(1.5% + 0.05 )
AC Leakage Current0.300 to 1.000mA, 0.001mA
Accuracy±(2.0% ± 0.05mA)
Test Frequency1.667kHz
Dimensions10.2 x 4.4 x 1.9in (258 x 110 x 47mm)
Weight24.7oz (700g)
Warranty1 year manufacturer's warranty
Resistance Range0.025 to 0.25Ω, 0.002Ω
Accuracy±(1.5% + 0.05 )
AC Leakage Current0.300 to 1.000mA, 0.001mA
Accuracy±(2.0% ± 0.05mA)
Test Frequency1.667kHz
Dimensions10.2 x 4.4 x 1.9in (258 x 110 x 47mm)
Weight24.7oz (700g)
Warranty1 year manufacturer's warranty
