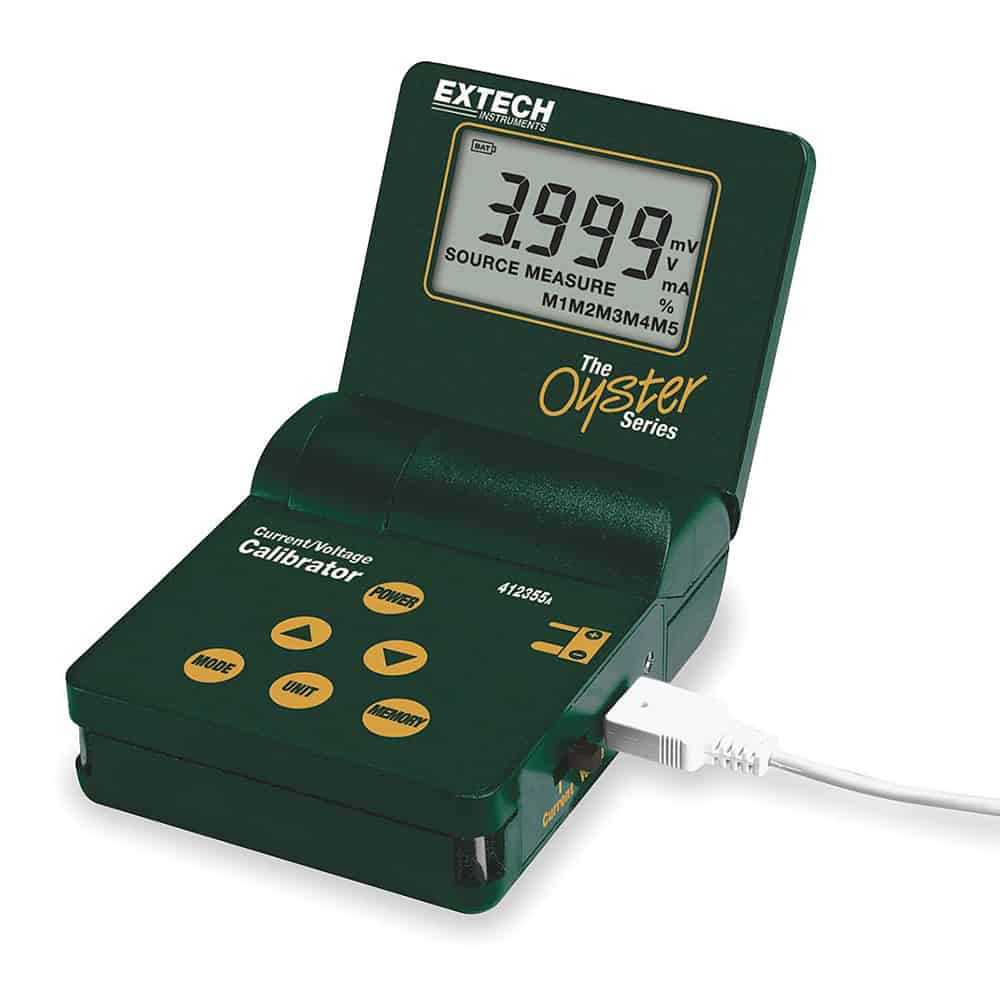

Extech 412355A Precision Source Current And Voltage Calibrator, 0 to 24mA, 0 to 20V is a product engineered with precision, delivering exceptional performance
with features like oyster case with flipup display is ideal for handheld or benchtop applications, large 312 digit LCD display and touch keypad and display readings in mA or as a of the 0 to 24mA range or as mV in voltage ranges.
Maintive brings to you 100% genuine Multifunction Calibrators from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 412355A Precision Source Current And Voltage Calibrator, 0 to 24mA, 0 to 20V today at the best price only from Maintive.
Features
Oyster case with flip-up display is ideal for handheld or benchtop applications
Large 3-1/2 digit LCD display and touch keypad
Display readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
Provides adjustable 0 to 24mA and 0 to 20V calibration source
Items Included
9V battery
calibration cable withspade lug terminals
carrying case
100V-240V AC Universal Adaptor (50/60Hz)
Specifications
SourceOutput 0 to 24mA current for loads up to 1000 ohms
Measure0 to 50mA current signal
Power/MeasureProvides power (24VDC) to loop & measures current (412300A only)
Accuracy0.075% ±1 digit
Power9V battery or AC adaptor
Dimensions3.8 x 4.2 x 1.8in (96 x 108 x 45mm) folded
Weight12oz (340g)
Warranty1 year manufacturer's warranty
SourceOutput 0 to 24mA current for loads up to 1000 ohms
Measure0 to 50mA current signal
Power/MeasureProvides power (24VDC) to loop & measures current (412300A only)
Accuracy0.075% ±1 digit
Power9V battery or AC adaptor
Dimensions3.8 x 4.2 x 1.8in (96 x 108 x 45mm) folded
Weight12oz (340g)
Warranty1 year manufacturer's warranty
