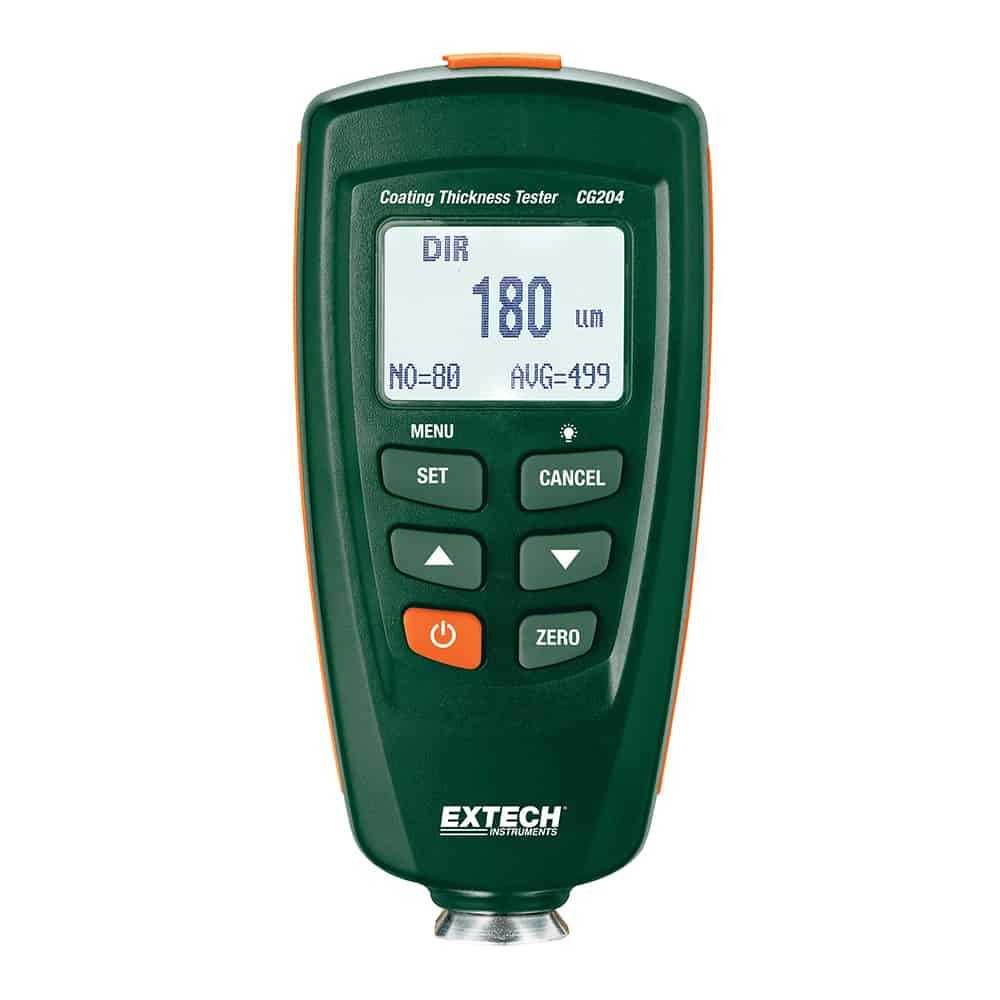

Extech CG204 Coating Thickness Tester, 0 to 1250µm is a product engineered with precision, delivering exceptional performance
with features like automatic substrate recognition, magnetic induction for ferrous substrates and eddy current measurement for nonferrous substrates.
Maintive brings to you 100% genuine Thickness And Hardness Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order CG204 Coating Thickness Tester, 0 to 1250µm today at the best price only from Maintive.
Features
Automatic substrate recognition
Magnetic induction for ferrous substrates
Eddy current measurement for non-ferrous substrates
Easy-to use menu system
Two measuring modes: Single and Continuous
Two working modes: Direct and Group
Memory stores 400 readings: 80 Direct and 320 Group
User-programmable high/low alarms
Min/Max/Average, one or two point calibration
Items Included
two AAA batteries
USB cable
software
Calibration Iron
Calibration Aluminum
Precision Standards
pouch case
Specifications
Range (Max Res)0 to 1250µm (0.1µm); 0 to 49mils (0.004mils)
Basic Accuracy±3%
Minimum Curvature Radius1.5mm (59.06mils)
Minimum Diameter7mm (275.6mils)
Minimum Thickness0.5mm (19.69mils)
Dimensions4.7x2.4x1.25 Inches(120x6 x32mm)
Weight6.17oz (175g)
Warranty1 year manufacturer's warranty
Range (Max Res)0 to 1250µm (0.1µm); 0 to 49mils (0.004mils)
Basic Accuracy±3%
Minimum Curvature Radius1.5mm (59.06mils)
Minimum Diameter7mm (275.6mils)
Minimum Thickness0.5mm (19.69mils)
Dimensions4.7x2.4x1.25 Inches(120x6 x32mm)
Weight6.17oz (175g)
Warranty1 year manufacturer's warranty
