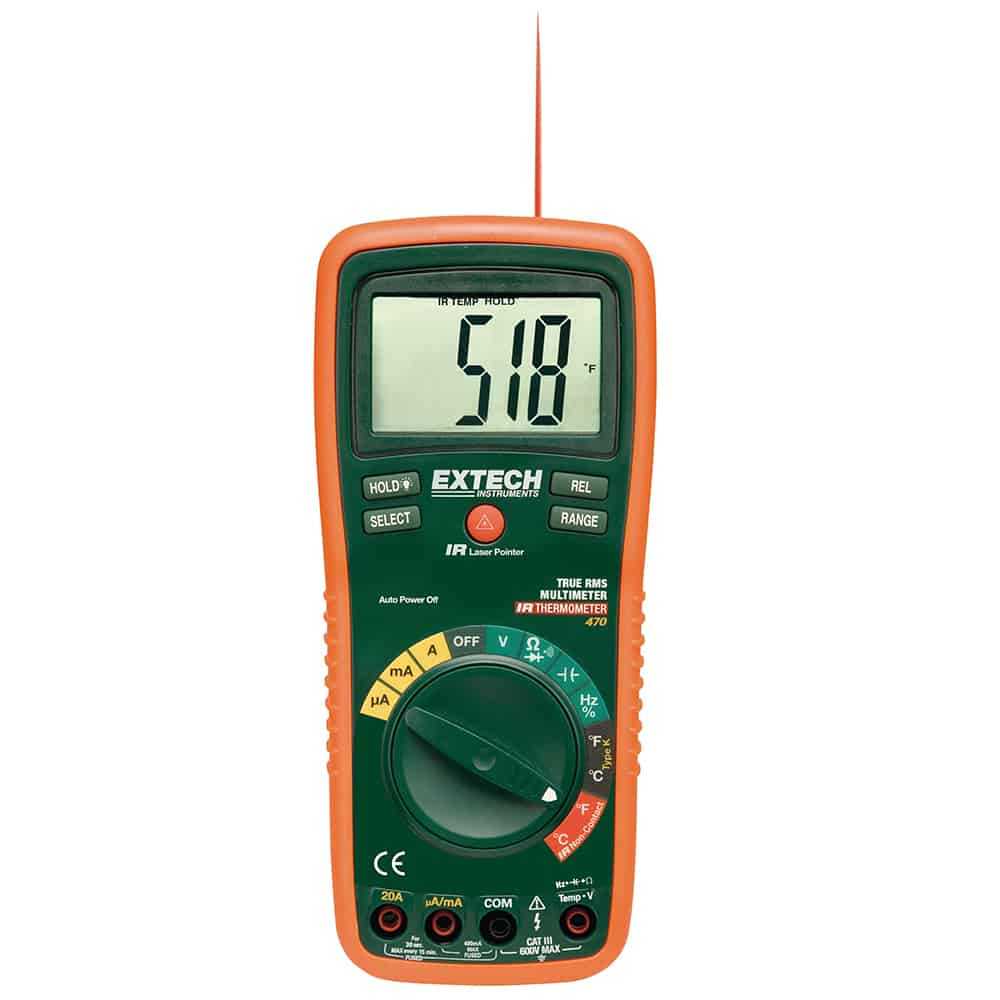

Extech EX470A True RMS Professional Multimeter, 20A, CAT IV 600V, with Built-in IR Thermometer, Autoranging, Capacitance, Frequency, Relative Function is a product engineered with precision, delivering exceptional performance
with features like true RMS DMM with 12 functions and 03 basic accuracy, aCDC Voltage x26 Current Resistance Capacitance Frequency TypeK x26 IR Temperature DiodeContinuity Duty Cycle and builtin noncontact InfraRed Thermometer with 81 distance to target ratio with 095 fixed emissivity Input fuse protection and misconnection warning.
Maintive brings to you 100% genuine Digital Multimeters from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order EX470A True RMS Professional Multimeter, 20A, CAT IV 600V, with Built-in IR Thermometer, Autoranging, Capacitance, Frequency, Relative Function today at the best price only from Maintive.
Features
True RMS DMM with 12 functions and 0.3% basic accuracy.
AC/DC Voltage & Current, Resistance, Capacitance, Frequency, TypeK & IR Temperature, Diode/Continuity, Duty Cycle.

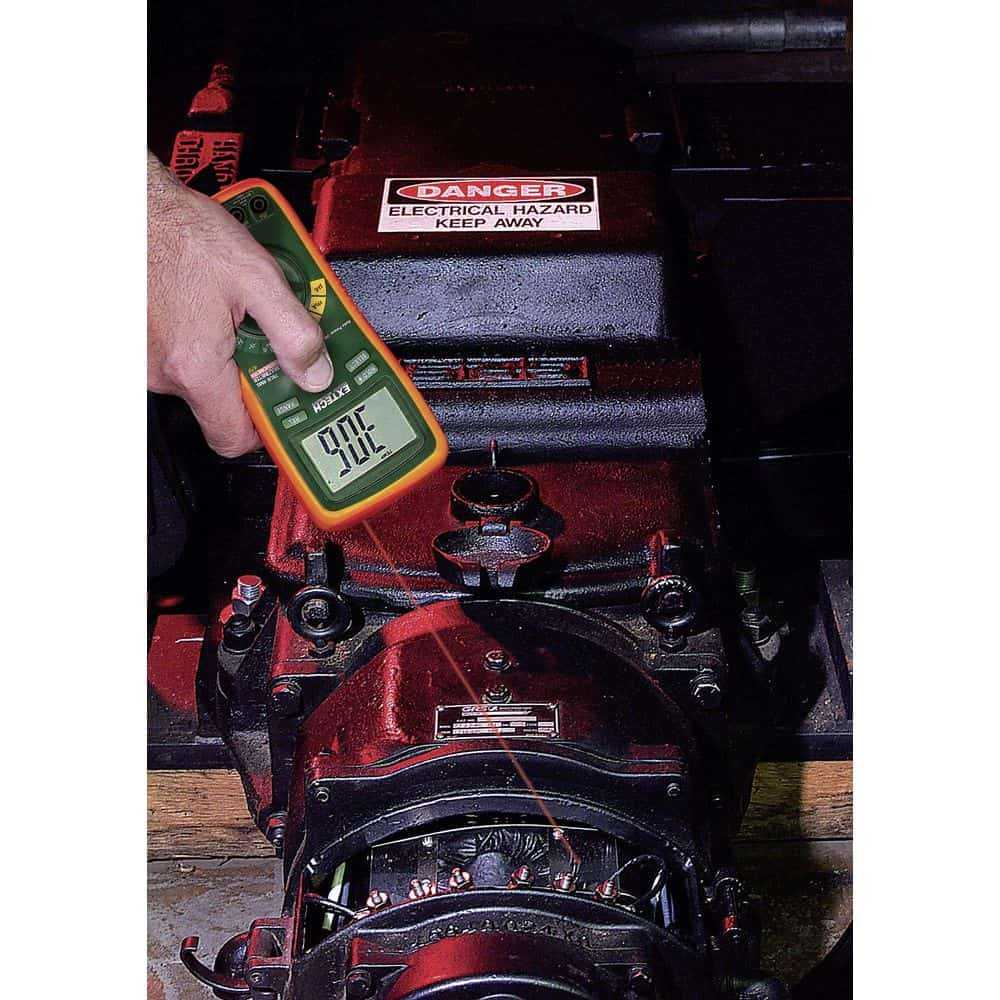

Built-in non-contact InfraRed Thermometer with 8:1 distance to target ratio with 0.95 fixed emissivity. Input fuse protection and mis-connection warning.
10A max Current.
Items Included
CAT III test leads
multi-position tiltstand and velcro strap for hanging
protective holsterwith test lead holder
bead wire temperature probe
9V battery
Specifications
DC Voltage0.1mV to 600V
AC Voltage0.1mV to 600V
DC Current0.1μA to 10A
AC Current0.1μA to 10A
Resistance0.1Ω to 40MΩ
Capacitance0.01nF to 100μF
Frequency0.001Hz to 10MHz
Temperature (Type K)-20 to 750°C
Temperature (IR)-50 to 270°C
Safety RatingCAT IV, 600V, CAT III 1000V
Duty Cycle0.1% to 99.9%
Dimensions7.4x3.2x2in(187x81x50mm) 0.75lbs (342g)
Weight0.75lbs (342g)
Warranty1 year manufacturer's warranty
DC Voltage0.1mV to 600V
AC Voltage0.1mV to 600V
DC Current0.1μA to 10A
AC Current0.1μA to 10A
Resistance0.1Ω to 40MΩ
Capacitance0.01nF to 100μF
Frequency0.001Hz to 10MHz
Temperature (Type K)-20 to 750°C
Temperature (IR)-50 to 270°C
Safety RatingCAT IV, 600V, CAT III 1000V
Duty Cycle0.1% to 99.9%
Dimensions7.4x3.2x2in(187x81x50mm) 0.75lbs (342g)
Weight0.75lbs (342g)
Warranty1 year manufacturer's warranty
