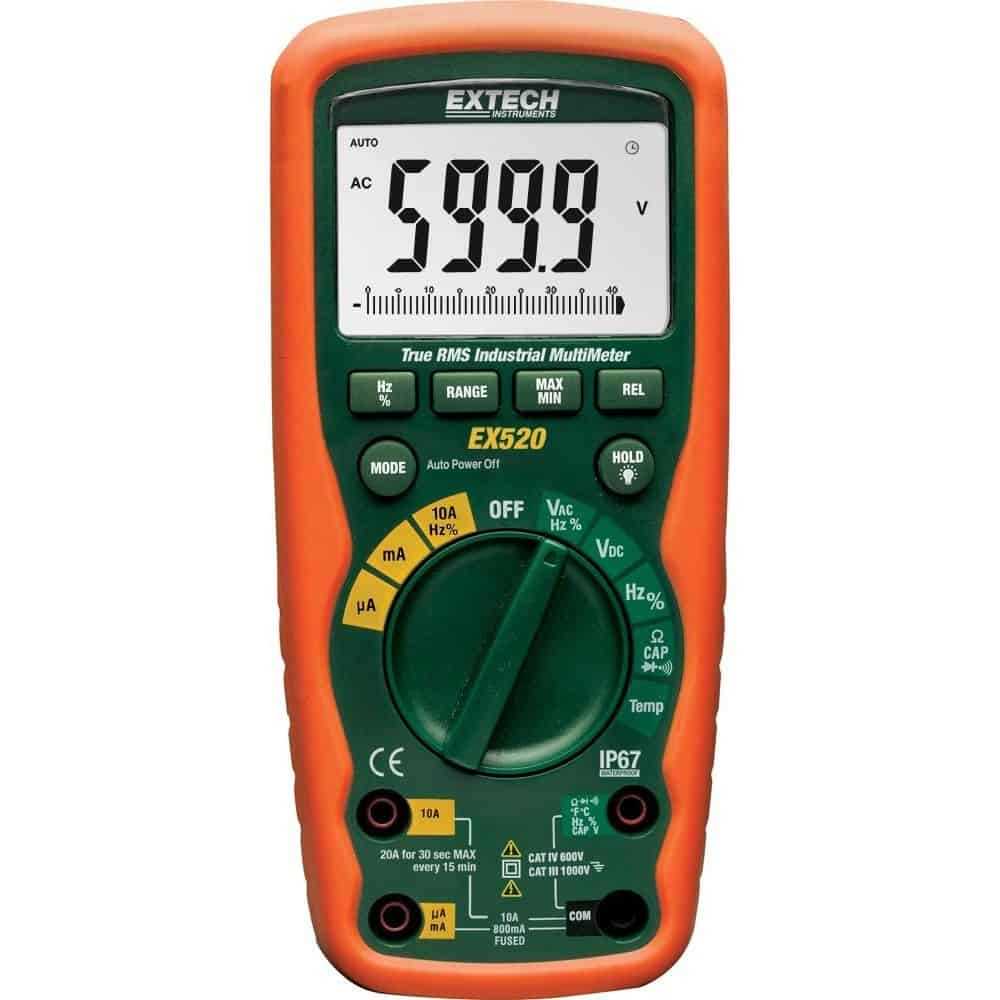

Extech EX520 True RMS Heavy Duty Multimeter, 20A, CAT IV 600V, IP67, Capacitance, Frequency and Temperature Measurement is a product engineered with precision, delivering exceptional performance
with features like 10A max Current, type K temperature measurements and data hold Relative Auto power off.
Maintive brings to you 100% genuine Digital Multimeters from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order EX520 True RMS Heavy Duty Multimeter, 20A, CAT IV 600V, IP67, Capacitance, Frequency and Temperature Measurement today at the best price only from Maintive.
Features
10A max Current.
Type K temperature measurements.
Data hold, Relative, Auto power off
Large-digit backlit LCD.
1000V input protection on all functions
MIN/MAX, Data hold, Relative, Auto power off
6,000 count large backlit LCD with bargraph

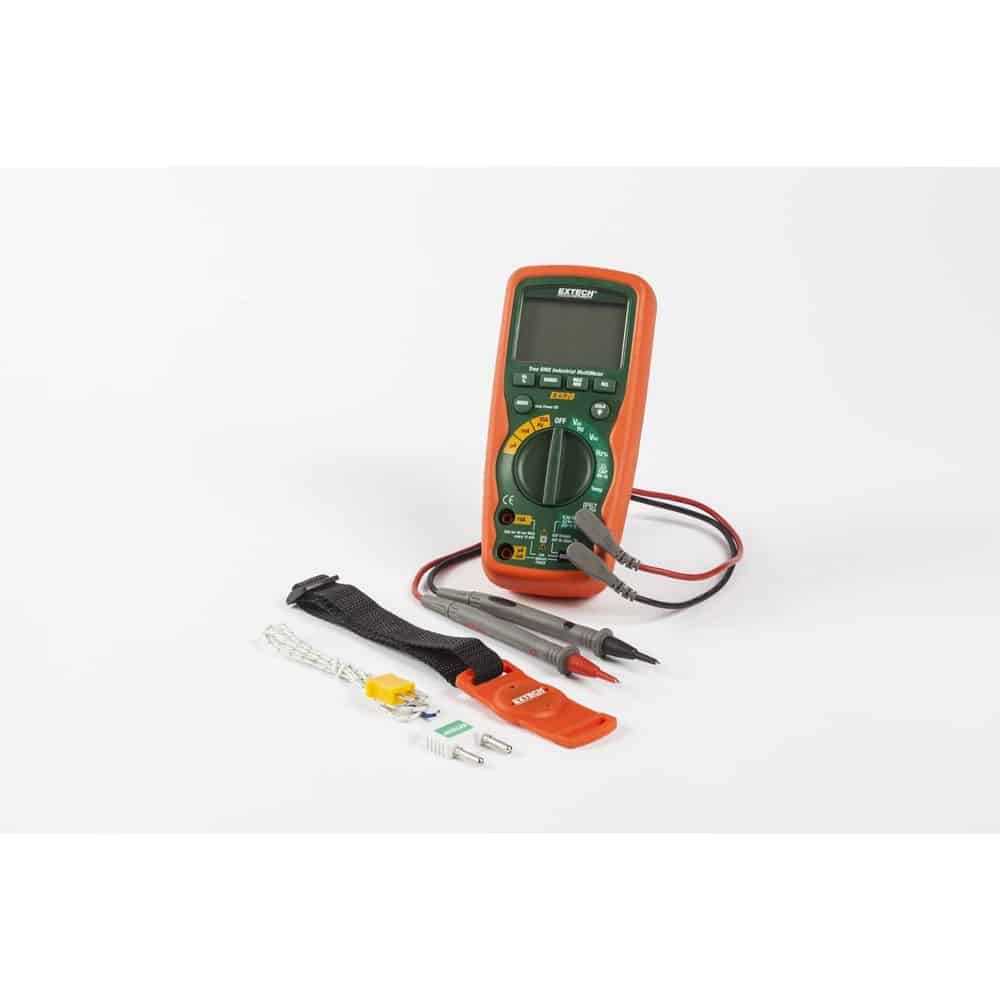

Items Included
Complete with double molded test leads
magnetic hanging strap

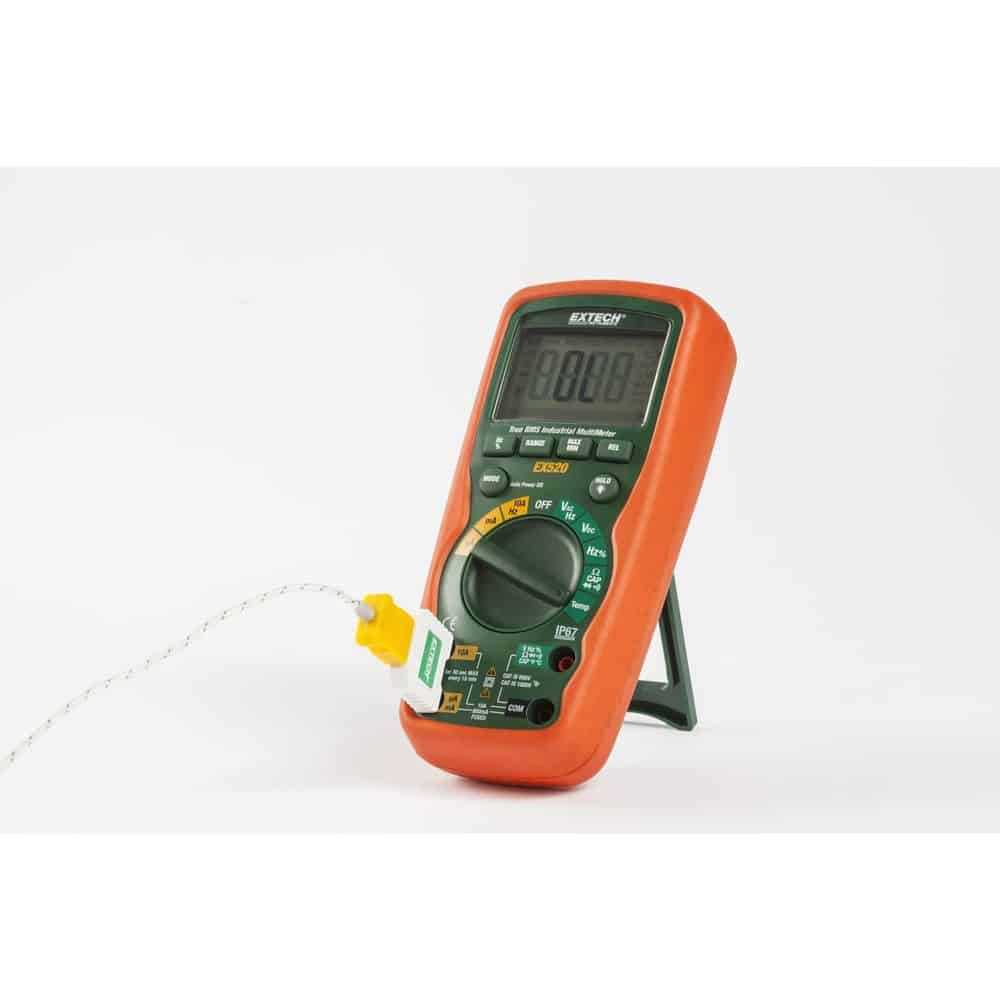

Type K bead wire temp probe
carrying case and 9V battery
Specifications
DC Voltage1000V
DC Voltage0.1mV to 1000V
AC Voltage1mV to 1000V
AC Current20A
Resistance0.1Ω to 40MΩ
Capacitance0.01nF to 100μF
Frequency0.001Hz to 40MHz
Temperature-20 to 750°C
Basic Accuracy±0.3%
Duty Cycle0.1% to 99.9%
Safety RatingCAT IV 600V, CAT III 1000V
Dimensions7.4x3.2x2in (187x81x50mm)
Weight0.75lbs (342g)
Warranty1 year manufacturer's warranty
DC Voltage1000V
DC Voltage0.1mV to 1000V
AC Voltage1mV to 1000V
AC Current20A
Resistance0.1Ω to 40MΩ
Capacitance0.01nF to 100μF
Frequency0.001Hz to 40MHz
Temperature-20 to 750°C
Basic Accuracy±0.3%
Duty Cycle0.1% to 99.9%
Safety RatingCAT IV 600V, CAT III 1000V
Dimensions7.4x3.2x2in (187x81x50mm)
Weight0.75lbs (342g)
Warranty1 year manufacturer's warranty
