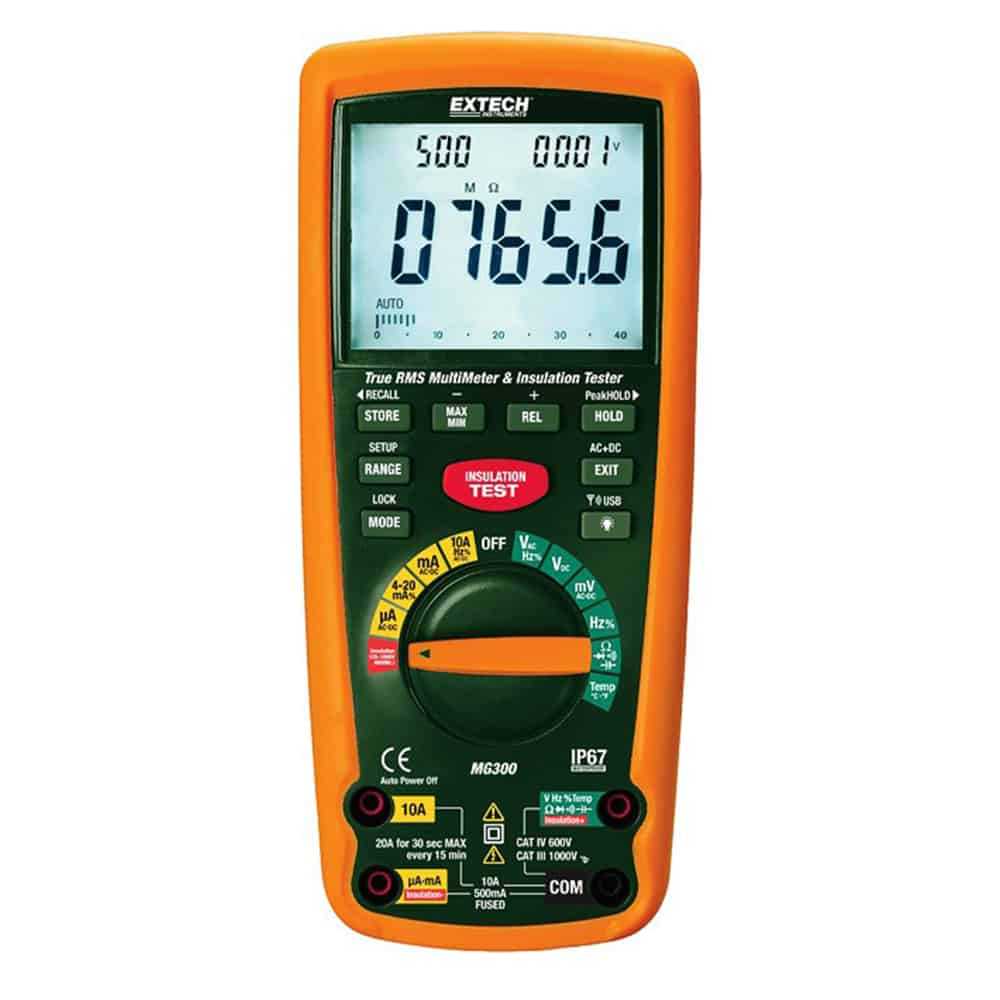

Extech MG302 True RMS Insulation Tester, CAT IV 600V, 1000V is a product engineered with precision, delivering exceptional performance
with features like wireless USB interface transmits measurement data to a PC, backlit super large triple display and 125V 250V 500V and 1000V test voltages.
Maintive brings to you 100% genuine Insulation Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order MG302 True RMS Insulation Tester, CAT IV 600V, 1000V today at the best price only from Maintive.
Features
Wireless USB interface transmits measurement data to a PC
Backlit super large triple display
125V, 250V, 500V, and 1000V test voltages
Insulation Resistance from 0.001MOhm to 4000MOhm
Auto discharge of capacitive voltage
Lock Power On Function for hands-free operation
Data Hold, Min/Max, Relative mode, Auto power off
Complete with USB receiver, Windows® software, test leads & alligator clips, bead wire temperature probe, carrying case and batteries
Items Included
remote receiver with USB cable
Windows® compatiblesoftware
heavy duty test leads
alligator clip test lead
Type K bead wiretemperature probe with adapter
carrying case
6 x AA batteries
Specifications
DC Voltage1000V
AC Voltage1000V
DC Curent10A
AC Current10A
Resistance40MΩ
Frequency100MHZ
Capacitance40mF
Temperature-58 to 2192°F (50 to 1200°C)
Insulation Resistance4MΩ, 40MΩ, 400MΩ, 4000MΩ
Safety RatingCAT IV 600V
Duty Cycle0.1 to 99.9%
Dimensions7.8 x 3.6 x 1.9in(200 x 92 x 50mm)
Weight20.5oz (582g)
Warranty1 year manufacturer's warranty
DC Voltage1000V
AC Voltage1000V
DC Curent10A
AC Current10A
Resistance40MΩ
Frequency100MHZ
Capacitance40mF
Temperature-58 to 2192°F (50 to 1200°C)
Insulation Resistance4MΩ, 40MΩ, 400MΩ, 4000MΩ
Safety RatingCAT IV 600V
Duty Cycle0.1 to 99.9%
Dimensions7.8 x 3.6 x 1.9in(200 x 92 x 50mm)
Weight20.5oz (582g)
Warranty1 year manufacturer's warranty
