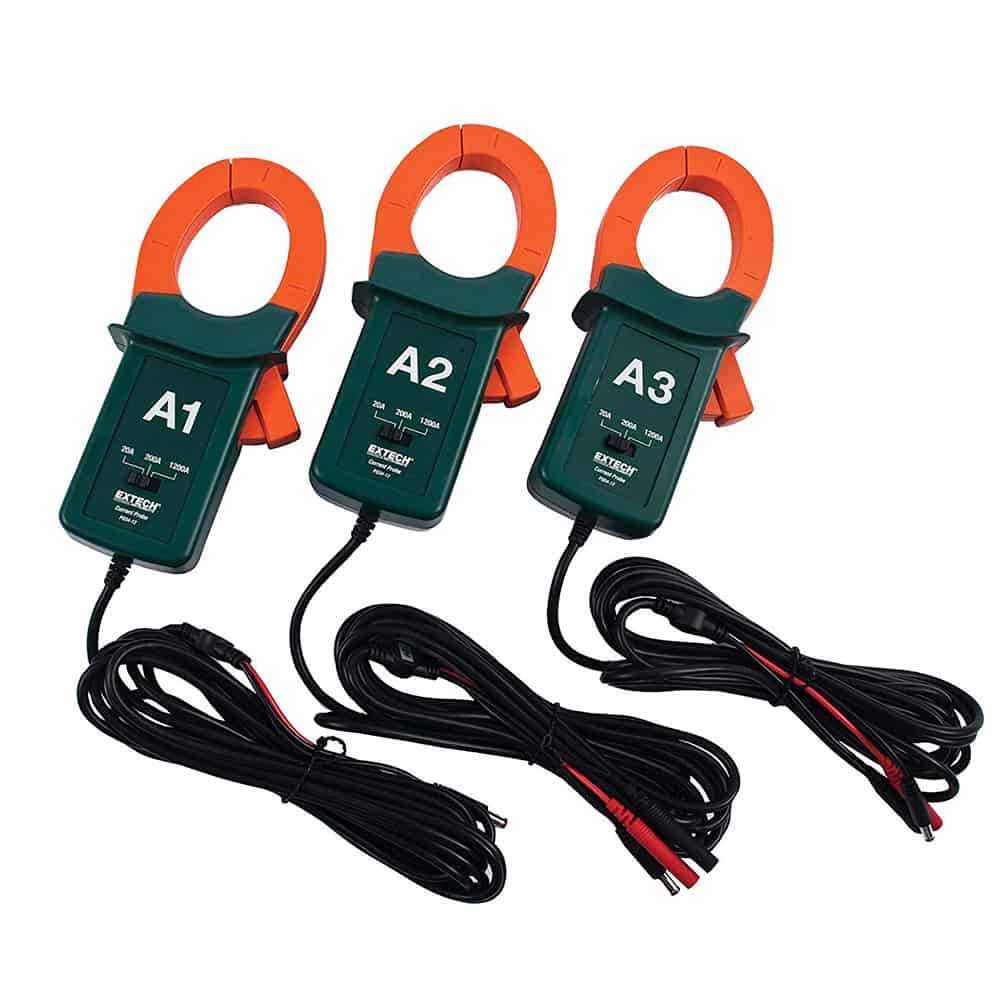

Extech PQ34-12 1200A Current Clamp Probes is a product engineered with precision, delivering exceptional performance. Maintive brings to you 100% genuine Current Clamps from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order PQ34-12 1200A Current Clamp Probes today at the best price only from Maintive.
Features
Compatible with PQ3450 - 3-Phase Power Analyzer/Datalogger
Compatible with PQ3470 - 3-Phase Graphical Power & Harmonics Analyzer/Datalogger
Items Included
three current clamp probes
Specifications
Measurement Ranges 20A, 200A and 1200A , switch selectable
Accuracy ± 1% F.S. @ 23 ± 5°C
Frequency Range 45 to 400 Hz.
Minimum load 100 K ohm
Safety IEC 1010, Category III 600V
Power Supply 8V± 1V (supplied from meter)
Max. Jaw Open Size 50mm (2.0inch) Dia.
Operating Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity Less than 80% RH
Dimensions/Weight 5.5mm x 2.5mm/ 490g (1.08 LB)
Warranty1 year manufacturer's warranty
Measurement Ranges 20A, 200A and 1200A , switch selectable
Accuracy ± 1% F.S. @ 23 ± 5°C
Frequency Range 45 to 400 Hz.
Minimum load 100 K ohm
Safety IEC 1010, Category III 600V
Power Supply 8V± 1V (supplied from meter)
Max. Jaw Open Size 50mm (2.0inch) Dia.
Operating Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity Less than 80% RH
Dimensions/Weight 5.5mm x 2.5mm/ 490g (1.08 LB)
Warranty1 year manufacturer's warranty
