Extech TKG100
Extech TKG100
Extech TKG100

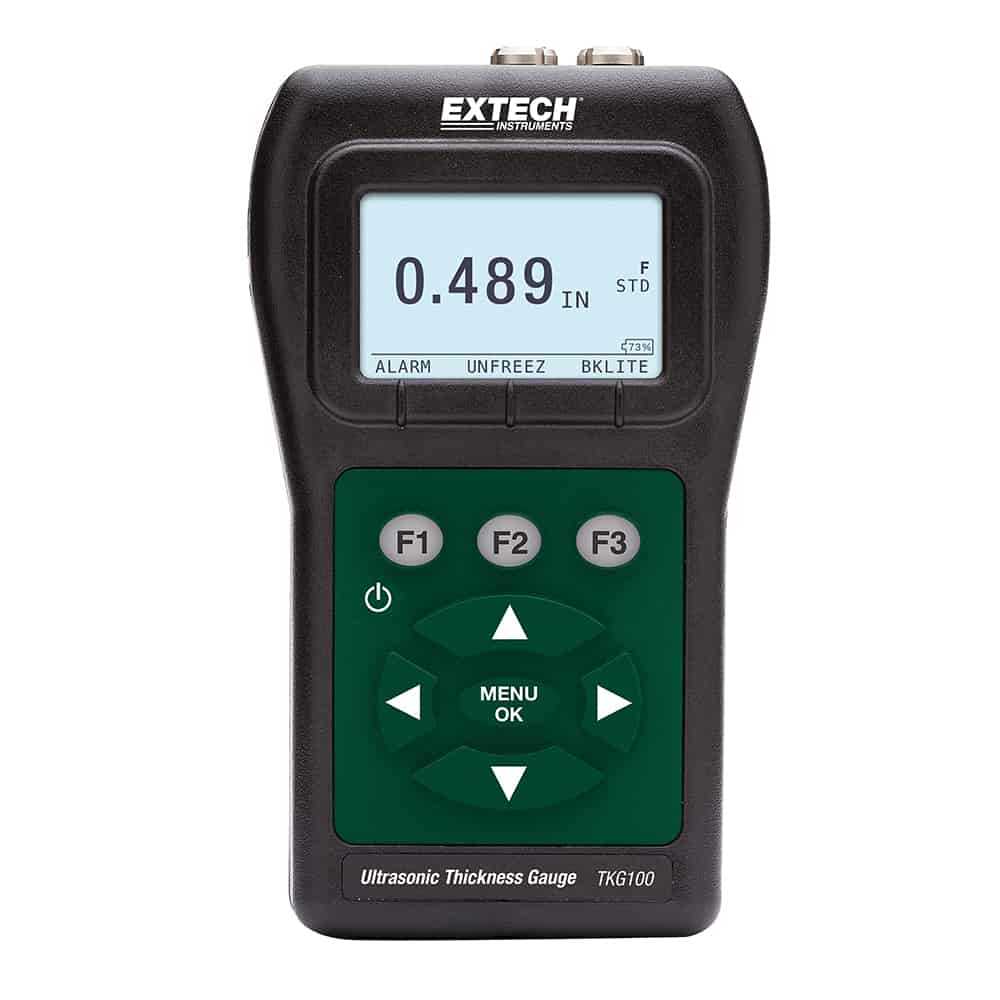

Digital Ultrasonic Thickness Gauge, 1 to 508mm

Model # TKG100
AED 6,825.00Incl. of VAT
Limited Stock
Extech Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25
This item is eligible for return.
delivery
Delivery
Wednesday, May 22
FREE
Click & Collect
Click & Collect
Today, 9:00 AM - 4:30 PM

You may also like...

Product Information

Extech TKG100 Digital Ultrasonic Thickness Gauge, 1 to 508mm is a product engineered with precision, delivering exceptional performance

with features like wide measurement range 5MHz probe 0040 to 20 of steel 10MHz probe 0020" to 20 of steel optional, suitable for use both indoors and outdoors and measures the thickness level of steelbased structures and other materials.
Maintive brings to you 100% genuine Thickness And Hardness Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TKG100 Digital Ultrasonic Thickness Gauge, 1 to 508mm today at the best price only from Maintive.

Features

  • Wide measurement range: 5MHz probe: 0.040 to 20 of steel, 10MHz probe: 0.020" to 20 of steel (optional)
  • Suitable for use both indoors and outdoors
  • Measures the thickness level of steel-based structures and other materials
  • Sunlight readable dot-matrix display with backlight
  • Multiple transducer options for high temperature and difficult to measure materials
  • Fast minimum feature to capture minimum thicknesses

Items Included

  • 2oz bottle of couplant
  • 2 AA batteries
  • Transducer (5MHz
  • 0.375" diameter ) with potted cable
  • hard case
  • certificate of calibration to NIST cable

Specifications

  • Steel Thickness Range5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm
  • Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
  • Hold ModeHolds display to retain last thickness reading with reverse video display
  • Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
  • UnitsInches/Millimeters/Microseconds
  • Illuminating KeypadF1 = Red, F2 = Yellow, F3 =green for easy,go/no-go testing
  • Battery Life50 hrs (20hrs w/backlighting)
  • Warranty1 year manufacturer's warranty
