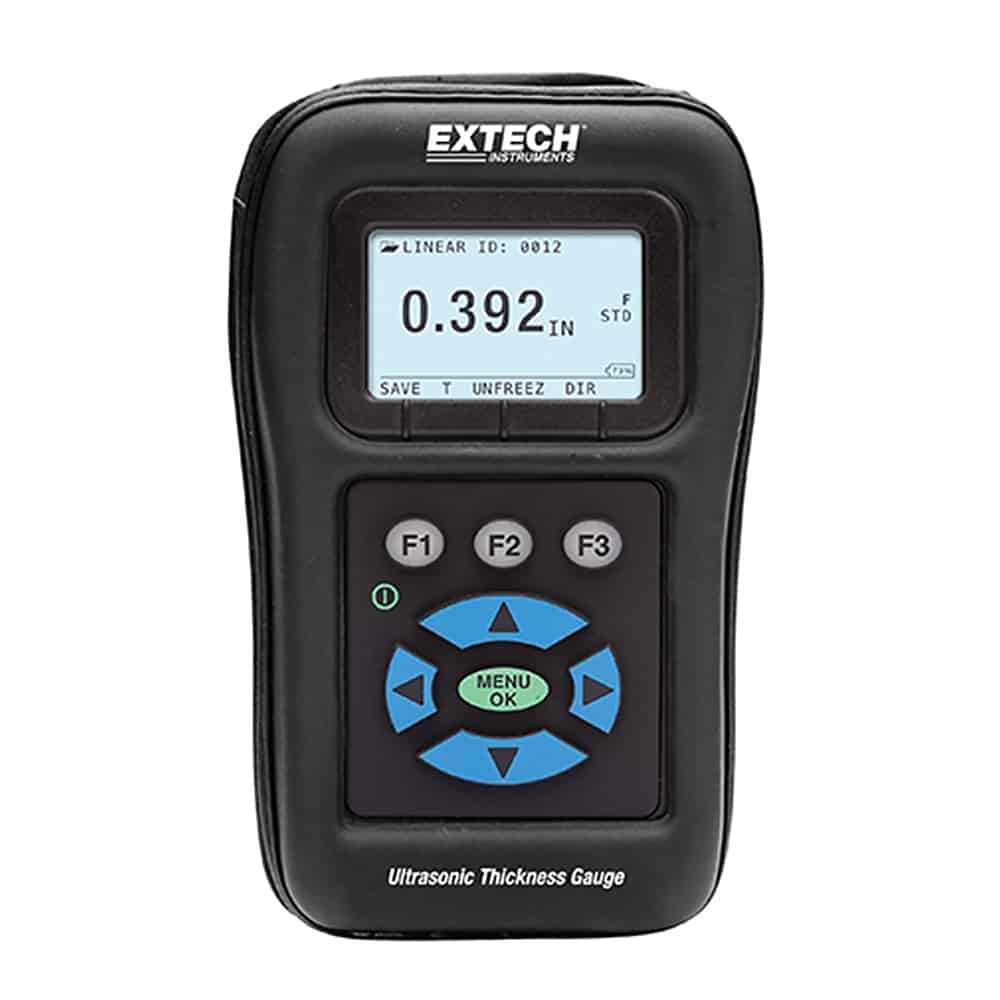

Extech TKG150 Digital Ultrasonic Thickness Gauge/Datalogger, 1 to 508mm is a product engineered with precision, delivering exceptional performance
with features like wide measurement range 5MHz probe 0040 to 20 of steel 10MHz probe 0020" to 20 of steel optional, sunlight readable dotmatrix display with backlight and 100K internal datalogger with export to Excel.
Maintive brings to you 100% genuine Thickness And Hardness Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TKG150 Digital Ultrasonic Thickness Gauge/Datalogger, 1 to 508mm today at the best price only from Maintive.
Features
Wide measurement range: 5MHz probe: 0.040 to 20 of steel, 10MHz probe: 0.020" to 20 of steel (optional)
Sunlight readable dot-matrix display with backlight
100K internal datalogger with export to Excel
Echo to Echo option to reduce coating errors
B-scan (visual cross section of test piece)
Vibrates on alarm
Multiple transducer options for high temperature and difficult to measure materials
Fast minimum feature to capture minimum thicknesses
Items Included
2oz bottle of couplant
2 AA batteries
Transducer (5MHz
0.375" diameter ) with potted cable
hard case
certificate of calibration to NIST
protective holster
USB cable
Extech XPorter software
Specifications
Steel Thickness Range5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm
Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
Hold ModeHolds display to retain last thickness reading with reverse video display
Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
DataloggerStores 50k readings (expandable to 100k) and 5,000 waveforms file names up to 20 characters long and theincluded Extech XPorter software extracts .csv data files that can be opened for viewingin MS Excel, Notepad, or Wordpad.
Differential ModeDisplays the difference from the actual thickness measurement and a user entered reference value.
Velocity ModeDisplays acoustic sound speed to measure thickness of unknown materials.
Warranty1 year manufacturer's warranty
Steel Thickness Range5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm
Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
Hold ModeHolds display to retain last thickness reading with reverse video display
Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
DataloggerStores 50k readings (expandable to 100k) and 5,000 waveforms file names up to 20 characters long and theincluded Extech XPorter software extracts .csv data files that can be opened for viewingin MS Excel, Notepad, or Wordpad.
Differential ModeDisplays the difference from the actual thickness measurement and a user entered reference value.
Velocity ModeDisplays acoustic sound speed to measure thickness of unknown materials.
Warranty1 year manufacturer's warranty
