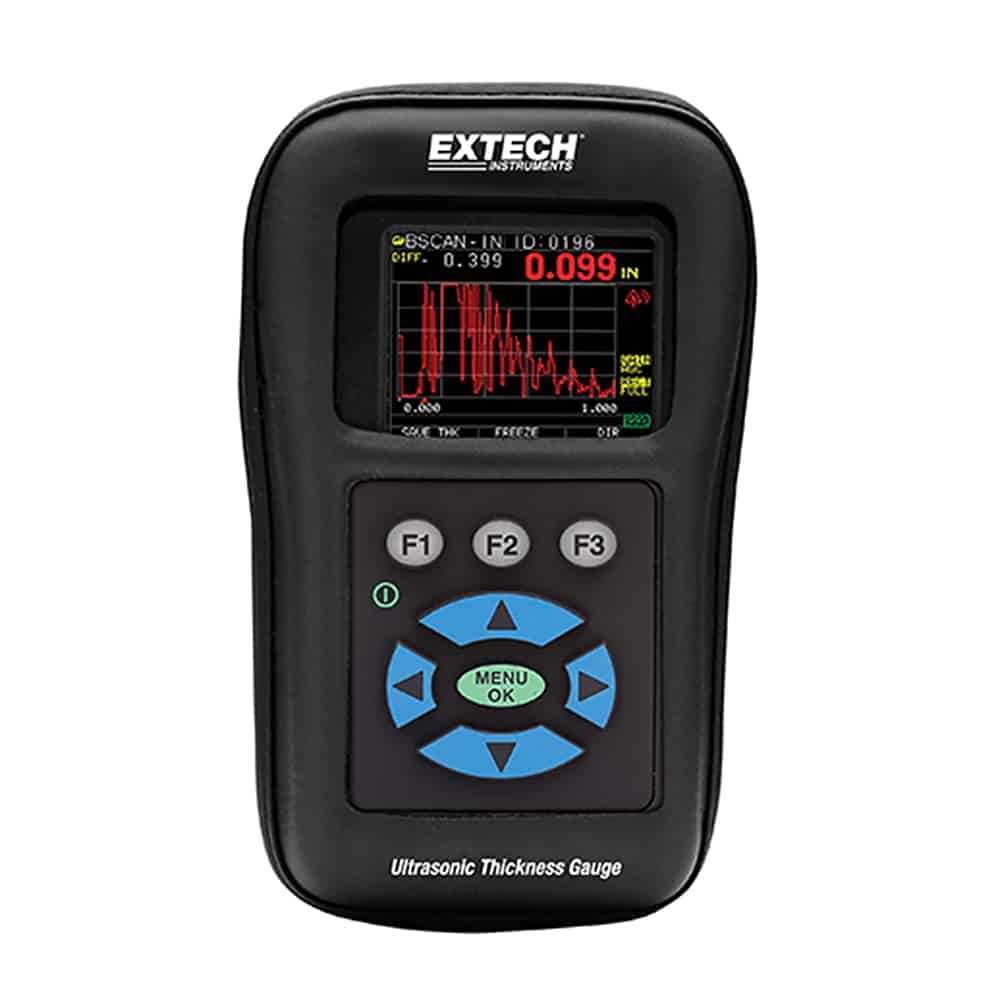

Extech TKG250 Digital Ultrasonic Thickness Gauge / Datalogger With Color LCD, 1 to 508mm is a product engineered with precision, delivering exceptional performance
with features like wide measurement range 5MHz probe 0040 to 20 of steel 10MHz probe 0020" to 20 of steel optional, color LCD display with red yellow and green visual alarm indication and 100K internal datalogger with export to Excel.
Maintive brings to you 100% genuine Thickness And Hardness Testers from Extech at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TKG250 Digital Ultrasonic Thickness Gauge / Datalogger With Color LCD, 1 to 508mm today at the best price only from Maintive.
Features
Wide measurement range: 5MHz probe: 0.040 to 20 of steel, 10MHz probe: 0.020" to 20 of steel (optional)
Color LCD display with red, yellow and green visual alarm indication
100K internal datalogger with export to Excel
File compare feature as a real time corrosion monitor
Echo to Echo option to reduce coating errors
Live Waveform (A-scan for thickness verification)
B-scan (visual cross section of test piece)
Vibrates on alarm
Multiple transducer options for high temperature and difficult to measure materials
Items Included
2oz bottle of couplant
2 AA batteries
Transducer (5MHz
0.375" diameter ) with potted cable
hard case
certificate of calibration to NIST
protective holster
USB cable
Extech XPorter software
Specifications
Steel Thickness Range5MHz probe: 0.040 to 20in (1.0 to 508mm): 10MHz probe: 0.030 to 2in (0.76mm to 50.8mm
Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
Hold ModeHolds display to retain last thickness reading with reverse video display
Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
DataloggerStores 50k readings (expandable to 100k) and 5,000 waveforms file names up to 20 characters long and theincluded Extech XPorter software extracts .csv data files that can be opened for viewingin MS Excel, Notepad, or Wordpad.
Differential ModeDisplays the difference from the actual thickness measurement and a user entered reference value.
AlarmsAudible beeping; illuminae flashing display and keypad; and vibration feedback
Battery Life8 to 14hrs
Warranty1 year manufacturer's warranty
Steel Thickness Range5MHz probe: 0.040 to 20in (1.0 to 508mm): 10MHz probe: 0.030 to 2in (0.76mm to 50.8mm
Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
Hold ModeHolds display to retain last thickness reading with reverse video display
Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
DataloggerStores 50k readings (expandable to 100k) and 5,000 waveforms file names up to 20 characters long and theincluded Extech XPorter software extracts .csv data files that can be opened for viewingin MS Excel, Notepad, or Wordpad.
Differential ModeDisplays the difference from the actual thickness measurement and a user entered reference value.
AlarmsAudible beeping; illuminae flashing display and keypad; and vibration feedback
Battery Life8 to 14hrs
Warranty1 year manufacturer's warranty
