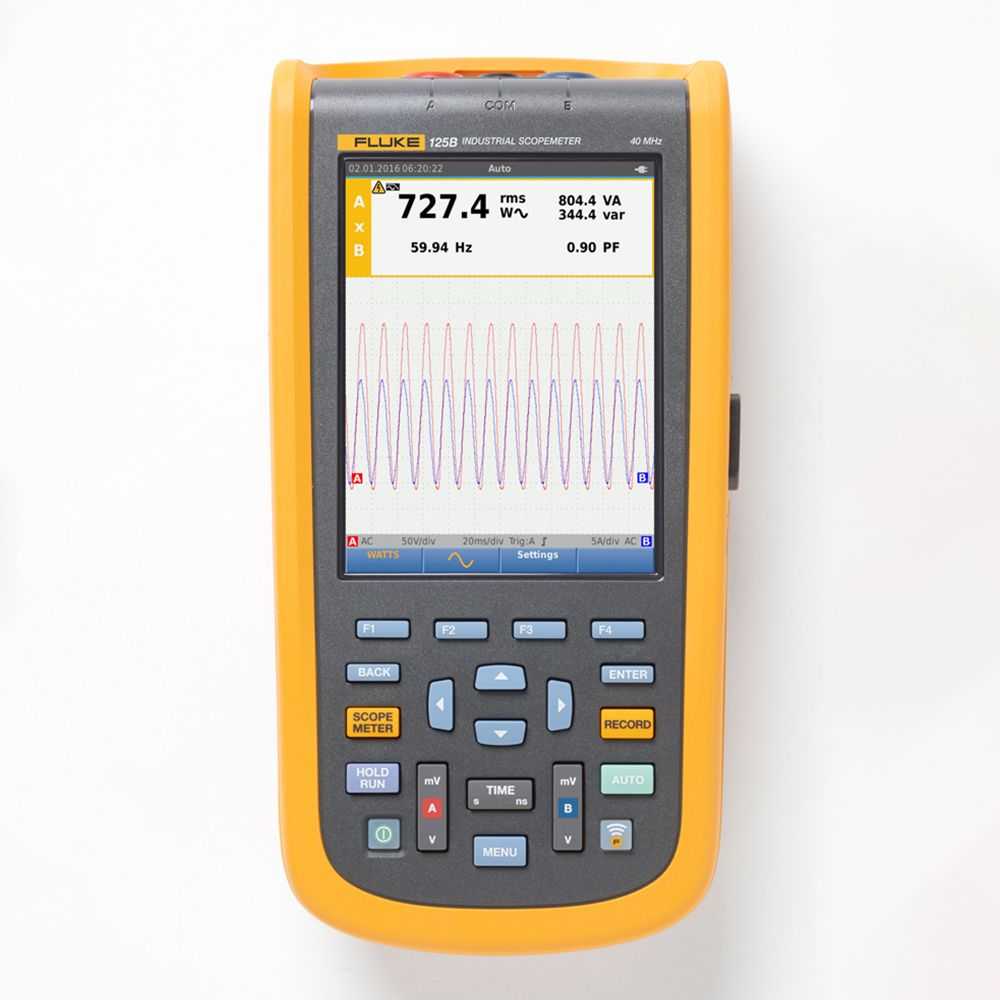

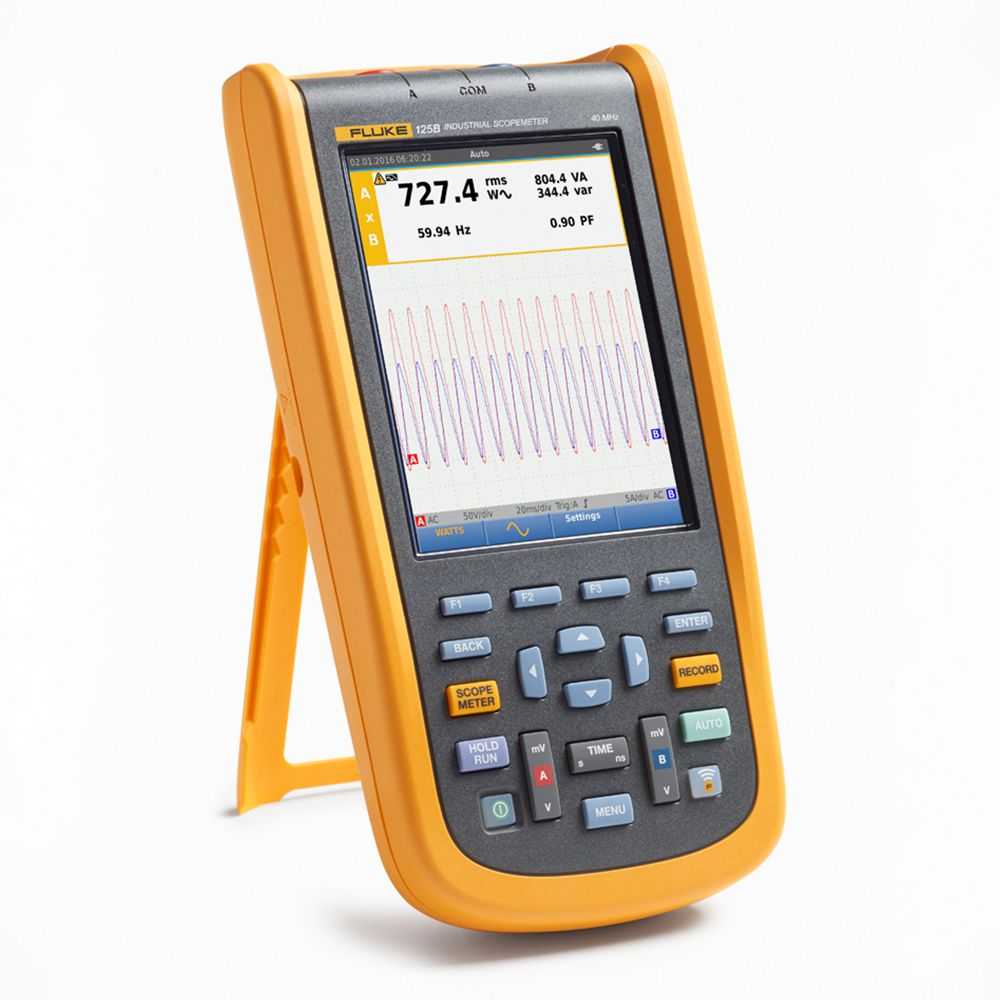

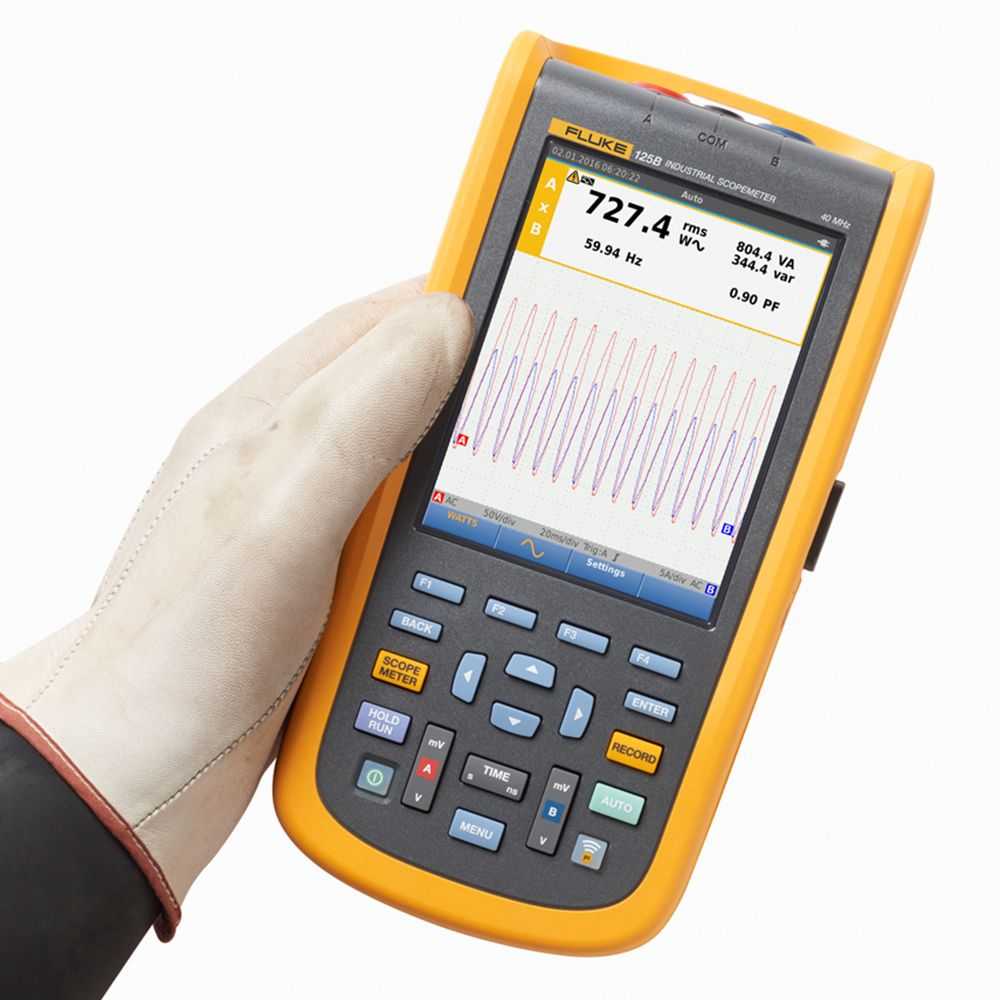

Fluke 125B/EU/S Industrial Scopemeter, 40 MHz is a product engineered with precision, delivering exceptional performance
with features like dualinput 40 MHz digital oscilloscope with Bus Health Test and SCC Kit, features two 5000 counts trueRMS digital multimeters and automatic measurements.
Maintive brings to you 100% genuine Portable Oscilloscopes from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 125B/EU/S Industrial Scopemeter, 40 MHz today at the best price only from Maintive.
Features
Dual-input 40 MHz digital oscilloscope with Bus Health Test and SCC Kit
Features two 5000 counts true-RMS digital multimeters
Automatic measurements
A dual-input Trend Plot recorder
IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures
Items Included
Fluke 125B Hand-Held Oscilloscope
Shielded Test Leads with Black Ground Leads
Test Lead Black (for Grounding)
Hook Clips (red
blue)
Banana-to-BNC Adapters (black
x1)
10:1 Voltage Probe
i400s AC Current Clamp
USB Angled Adapter
WiFi USB Adapter*
Switch Mode Power Supply
Adapter/Battery Charger
Rechargeable Li-ion Battery Pack
Soft Carrying Case
Magnetic Hanger
FlukeView¨ ScopeMeter¨ Software for Windows¨
Screen Protector
Specifications
Bandwidth40 MHz
Number of Channels2 channels
Time base10 ns - 500 s/div
Input impedance1 MΩ
DC Voltage500 mV, 5 V, 50 V, 500 V, 750 V
Duty Cycle2 % to 98 %
Pulse Width15 Hz (1 Hz) to 30 MHz in continuous autoset
Capacitance50 nF, 500 nF, 5 μF, 50 μF, 500 μF
Safety RatingIEC 61010-2-033: CAT IV 600 V/CAT III 750 V
Input couplingAC, DC
Input voltage10 V/DC up to 21 V DC
Power supply (details)Li-ion battery 10.8 V
Weight1.4 kg
Warranty3 years manufacturer's warranty
Bandwidth40 MHz
Number of Channels2 channels
Time base10 ns - 500 s/div
Input impedance1 MΩ
DC Voltage500 mV, 5 V, 50 V, 500 V, 750 V
Duty Cycle2 % to 98 %
Pulse Width15 Hz (1 Hz) to 30 MHz in continuous autoset
Capacitance50 nF, 500 nF, 5 μF, 50 μF, 500 μF
Safety RatingIEC 61010-2-033: CAT IV 600 V/CAT III 750 V
Input couplingAC, DC
Input voltage10 V/DC up to 21 V DC
Power supply (details)Li-ion battery 10.8 V
Weight1.4 kg
Warranty3 years manufacturer's warranty
