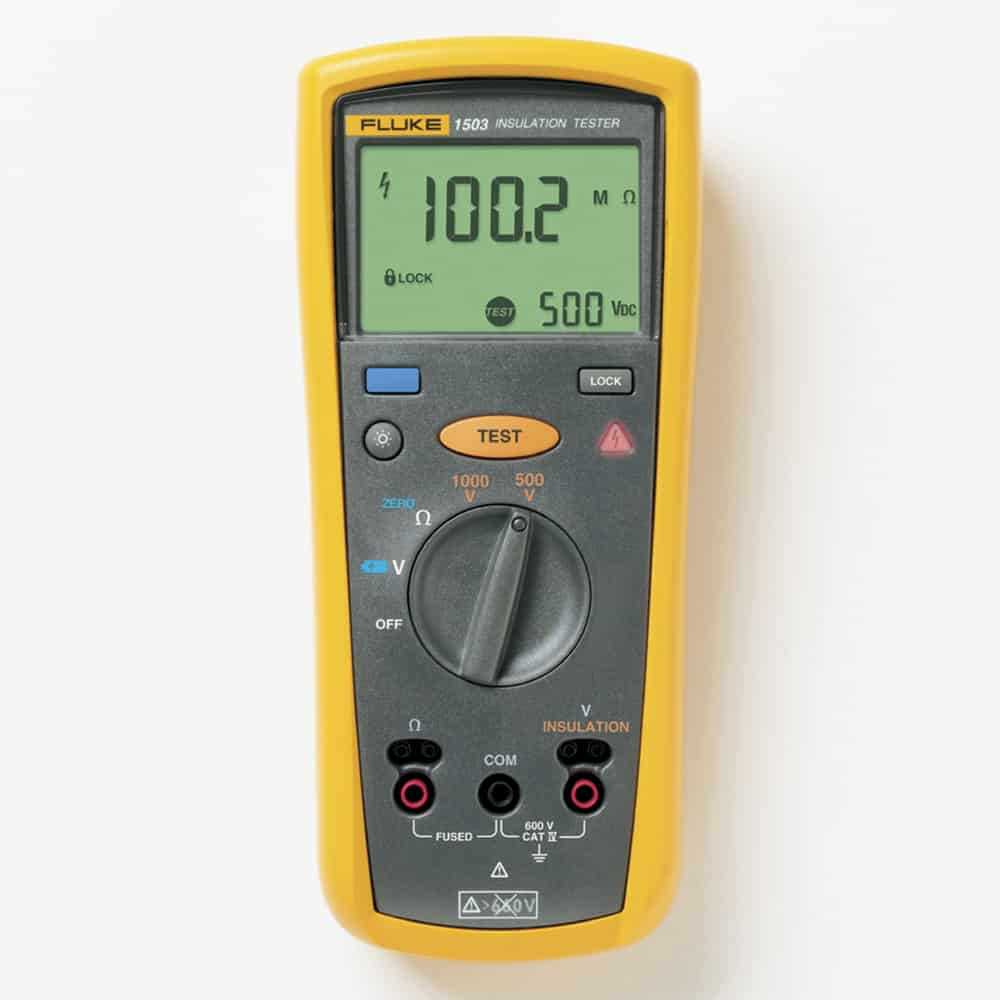

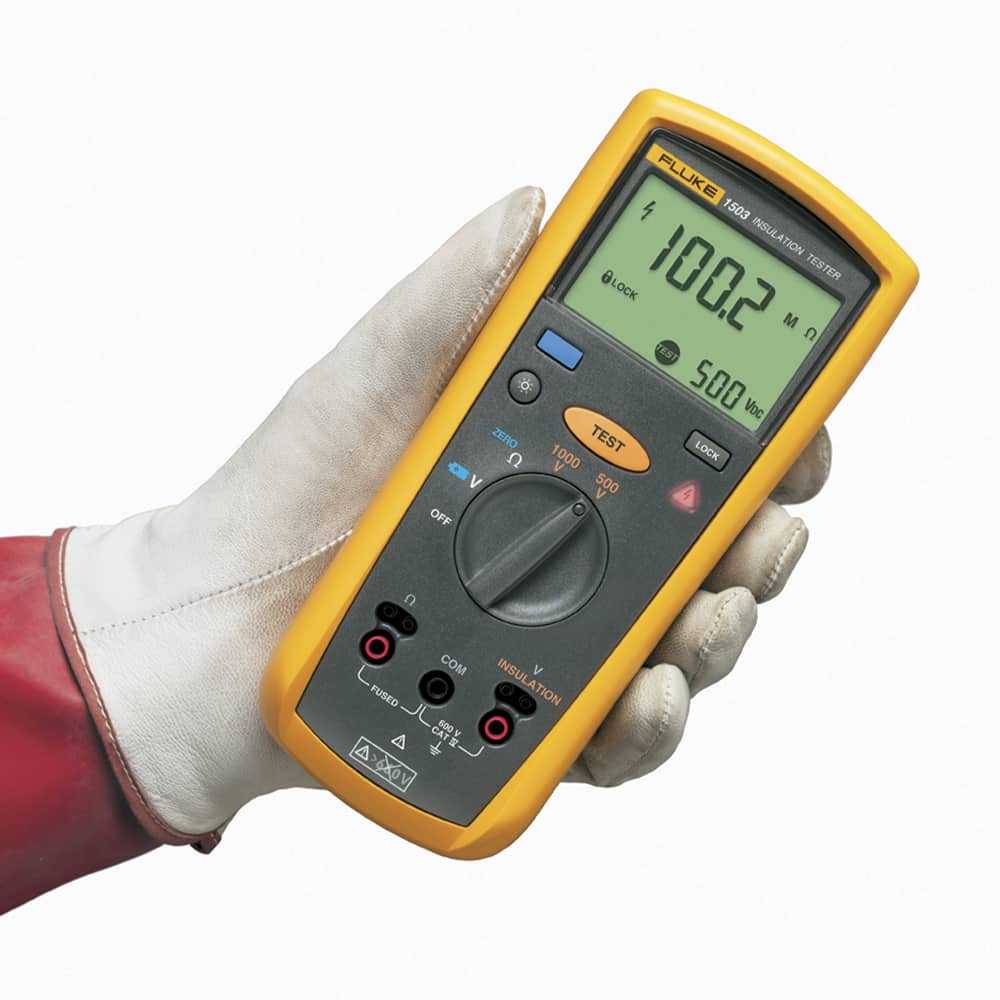

Fluke 1503 Insulation Resistance Tester, CAT IV 600V, 500V - 1000V is a product engineered with precision, delivering exceptional performance
with features like insulation test range 01 MΩ to 2000 MΩ, insulation test voltages 500 V 1000 V and repetitive or hardtoreach testing is easy with the remote test probe.
Maintive brings to you 100% genuine Insulation Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1503 Insulation Resistance Tester, CAT IV 600V, 500V - 1000V today at the best price only from Maintive.
Features
Insulation test range: 0.1 MΩ to 2000 MΩ
Insulation test voltages: 500 V; 1000 V
Repetitive or hard-to-reach testing is easy with the remote test probe
Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
Measures AC/DC voltage from 0.1 V to 600 V
Includes auto-discharge of capacitive voltage for added user protection
Provides lo-ohms earth-bond continuity (200 mA)
Simplifies repetitive or hard-to-reach testing with the remote test probe
Saves battery power with auto power of

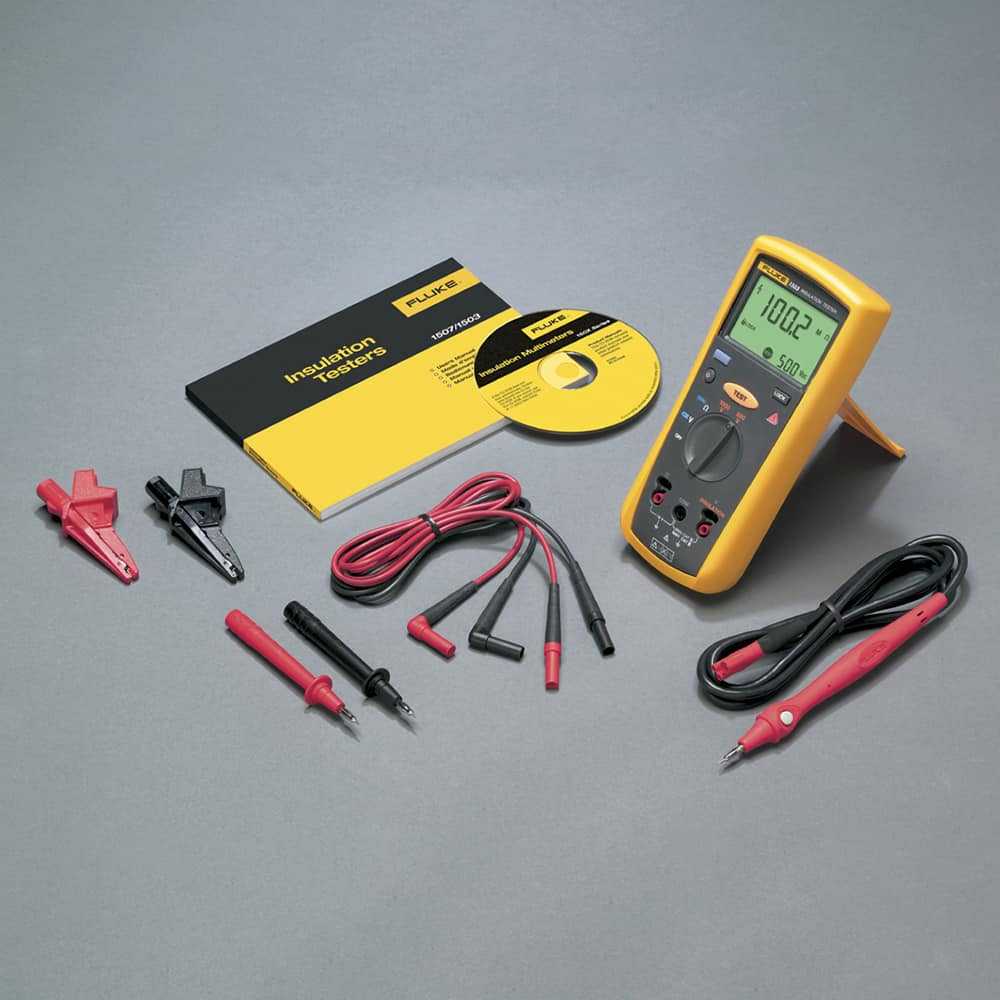

Items Included
Remote probe
Test leads
Test probes
Alligator clips
User documentation
Specifications
DC Voltage600.0 V
AC Voltage600.0 V
Resistance20Ω to 20kΩ
Insulation Test Voltages500V, 1000V
Insulation Resistance0.01MΩ - 2000MΩ
Resolution0.1 V
Input impedance3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
Overload protection600 V rms or DC
Range/Resolution20.00 Ω
Maximum voltage applied to any terminal600 V AC rms or DC
Storage temperature-40°C to 60°C (-40°F to 140°F)
Operating temperature-20°C to 55°C (-4°F to 131°F)
Temperature coefficient0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)
Warranty1 year manufacturer's warranty
DC Voltage600.0 V
AC Voltage600.0 V
Resistance20Ω to 20kΩ
Insulation Test Voltages500V, 1000V
Insulation Resistance0.01MΩ - 2000MΩ
Resolution0.1 V
Input impedance3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
Overload protection600 V rms or DC
Range/Resolution20.00 Ω
Maximum voltage applied to any terminal600 V AC rms or DC
Storage temperature-40°C to 60°C (-40°F to 140°F)
Operating temperature-20°C to 55°C (-4°F to 131°F)
Temperature coefficient0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)
Warranty1 year manufacturer's warranty
