Fluke 1507 Insulation Resistance Testers, CAT IV 600V, 50V - 1000V is a product engineered with precision, delivering exceptional performance
with features like insulation test range 1507 001 MΩ to 10MΩ, insulation test voltages 1507 50 V 100 V 250 V 500 V 1000 V and save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio.
Maintive brings to you 100% genuine Insulation Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1507 Insulation Resistance Testers, CAT IV 600V, 50V - 1000V today at the best price only from Maintive.
Features
Insulation test range: 1507: 0.01 MΩ to 10MΩ
Insulation test voltages: 1507: 50 V; 100 V; 250 V; 500 V; 1000 V
Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio
Make repetitive tests simple and easy with the 1507’s Compare (Pass/Fail) function
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Includes auto-discharge of capacitive voltage for added user protection
Provides lo-ohms earth-bond continuity (200 mA)
Simplifies repetitive or hard-to-reach testing with the remote test probe
Saves battery power with auto power of

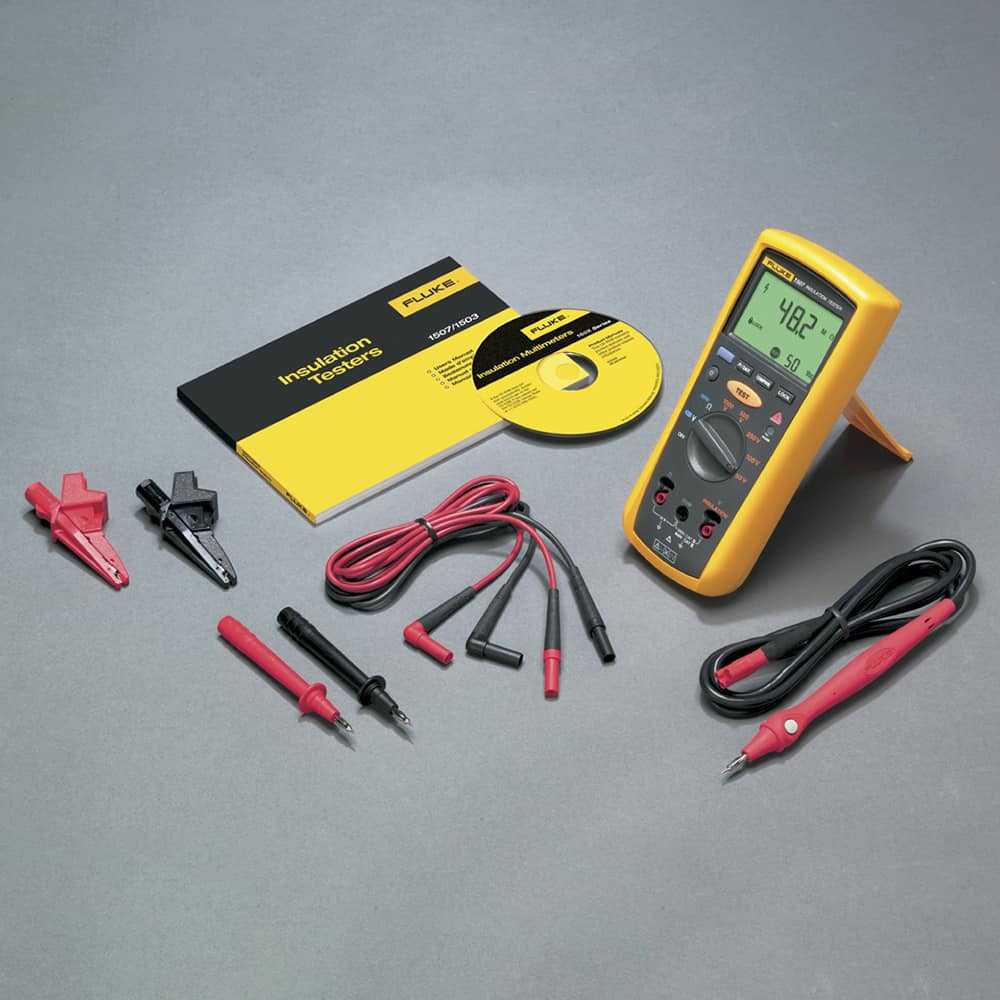

Items Included
TL224 Test Leads
TP74 Test Probes
Clips PN 1958654 (red) and PN 1958646 (black)
Holster
Remote probe
Specifications
DC Voltage600 V
AC Voltage600 V
Resistance20Ω to 20kΩ
Insulation Test Voltages50V, 100V, 250V, 500V, 1000V
Insulation Resistance0.01MΩ - 10GΩ
Input impedance3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
Overload protection600 V rms or DC
Accuracy±(1.5% + 3)
Storage temperature-40°C to 60°C (-40°F to 140°F)
Operating temperature-20°C to 55°C (-4°F to 131°F)
Size (H x W x L)5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Warranty1 year manufacturer's warranty
DC Voltage600 V
AC Voltage600 V
Resistance20Ω to 20kΩ
Insulation Test Voltages50V, 100V, 250V, 500V, 1000V
Insulation Resistance0.01MΩ - 10GΩ
Input impedance3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
Overload protection600 V rms or DC
Accuracy±(1.5% + 3)
Storage temperature-40°C to 60°C (-40°F to 140°F)
Operating temperature-20°C to 55°C (-4°F to 131°F)
Size (H x W x L)5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Warranty1 year manufacturer's warranty
