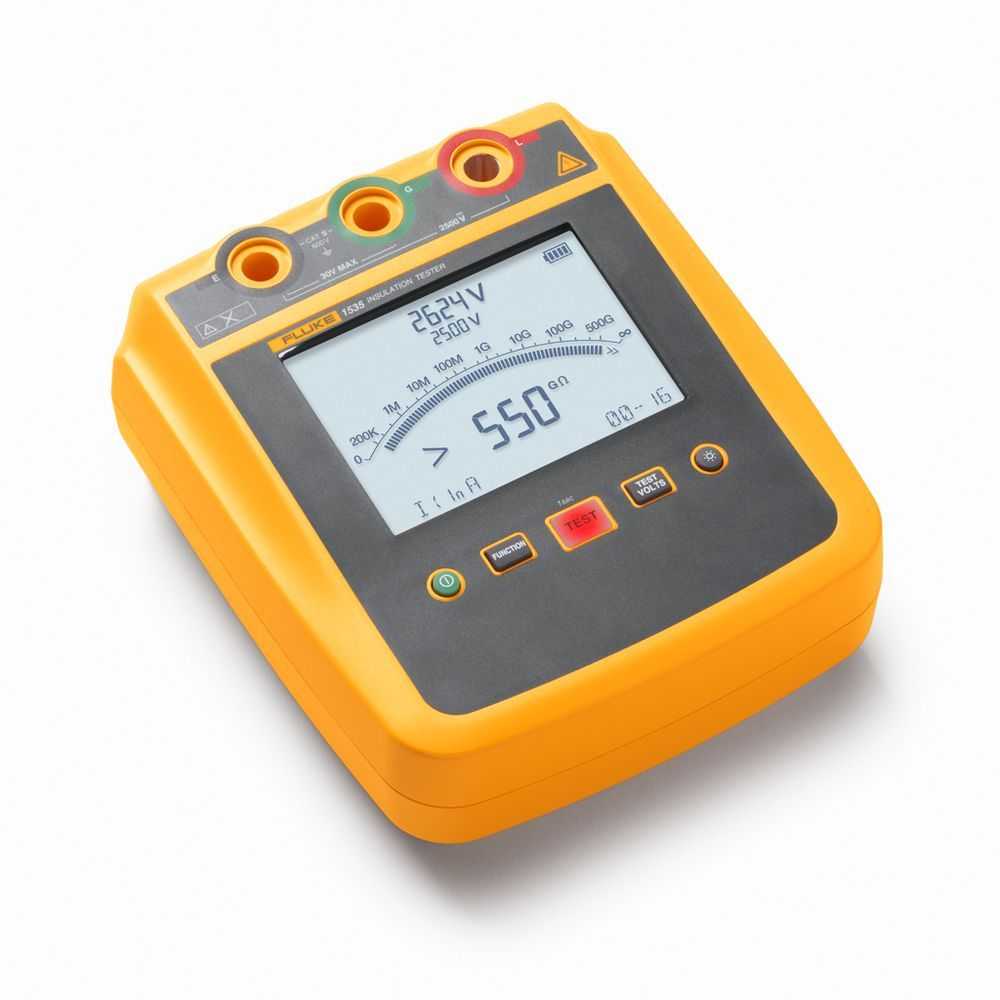

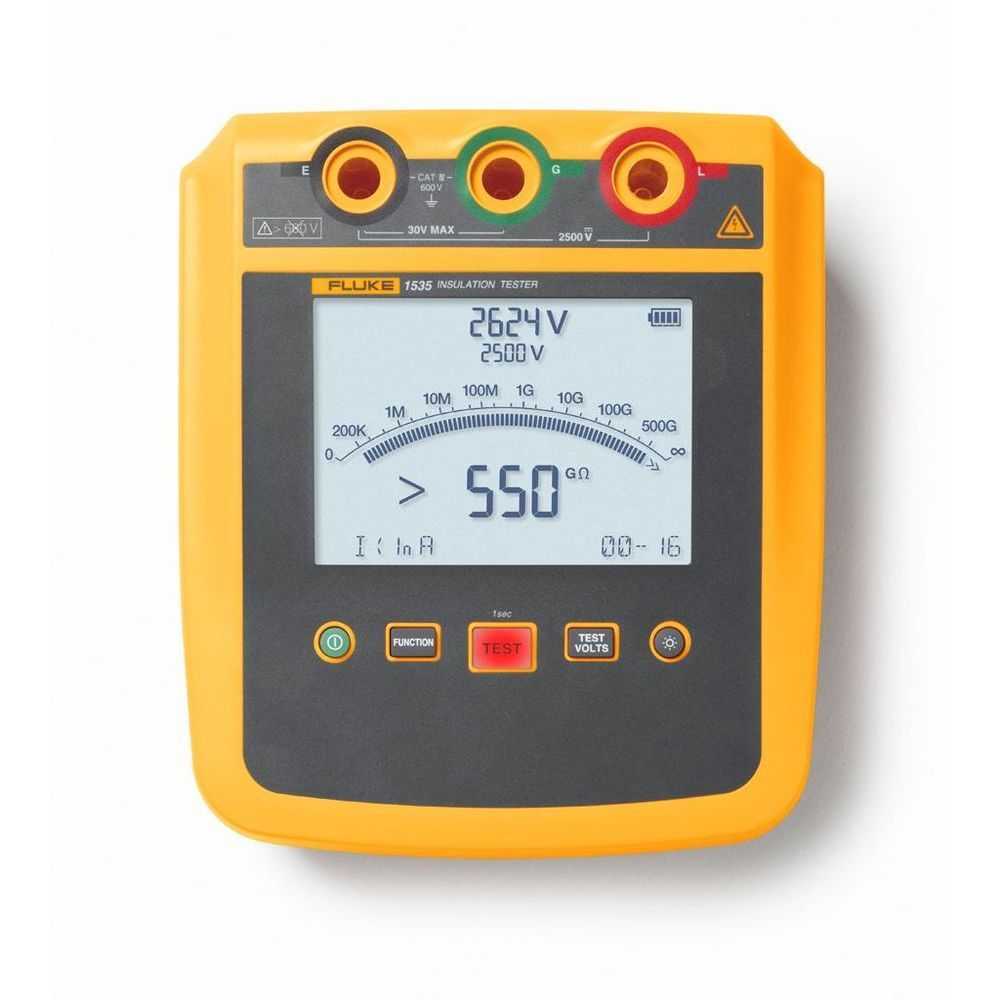

Fluke 1535 Insulation Resistance Tester and Megohmmeter, 250-2500V, 500 GΩ is a product engineered with precision, delivering exceptional performance
with features like userselectable voltages of 250 V2500 V, up to 500 GΩ insulation resistance measurement and short circuit current up to 5mA for fast stable measurements.
Maintive brings to you 100% genuine Insulation Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1535 Insulation Resistance Tester and Megohmmeter, 250-2500V, 500 GΩ today at the best price only from Maintive.
Features
User-selectable voltages of 250 V-2500 V
Up to 500 GΩ insulation resistance measurement
Short circuit current up to 5mA for fast, stable measurements
Automatically calculate PI and DAR
Perform 1,300+ insulation tests on a single charge

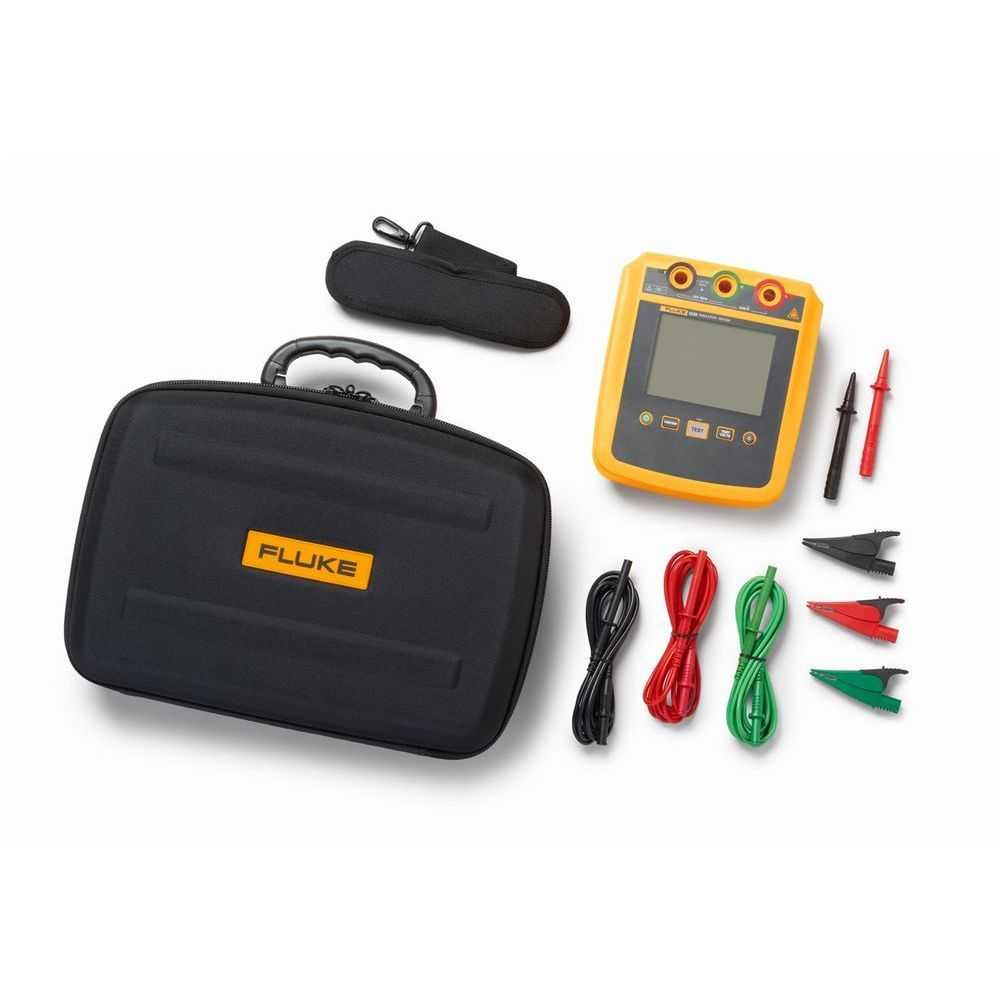

Items Included
Fluke 1537 Insulation Reistance Tester
Test leads with alligator clips (red, black, green)
Probe (red, black)
Soft carrying case
Specifications
Test voltage for insulation resistance250/500/1000/2500V
Resistance Ranges200 kΩ to 50/100/200/500 GΩ
Leakage current measurement1 nA to 2 mA
Capacitance measurement0.01 μF to 2.00 μF
Short circuit current>2 mA
Overvoltage categoryCAT IV 600 V
Dimensions (H x W x L)184 mm x 211 mm x 93 mm
Weight1.3 kg
Warranty2 years manufacturer's warranty
Test voltage for insulation resistance250/500/1000/2500V
