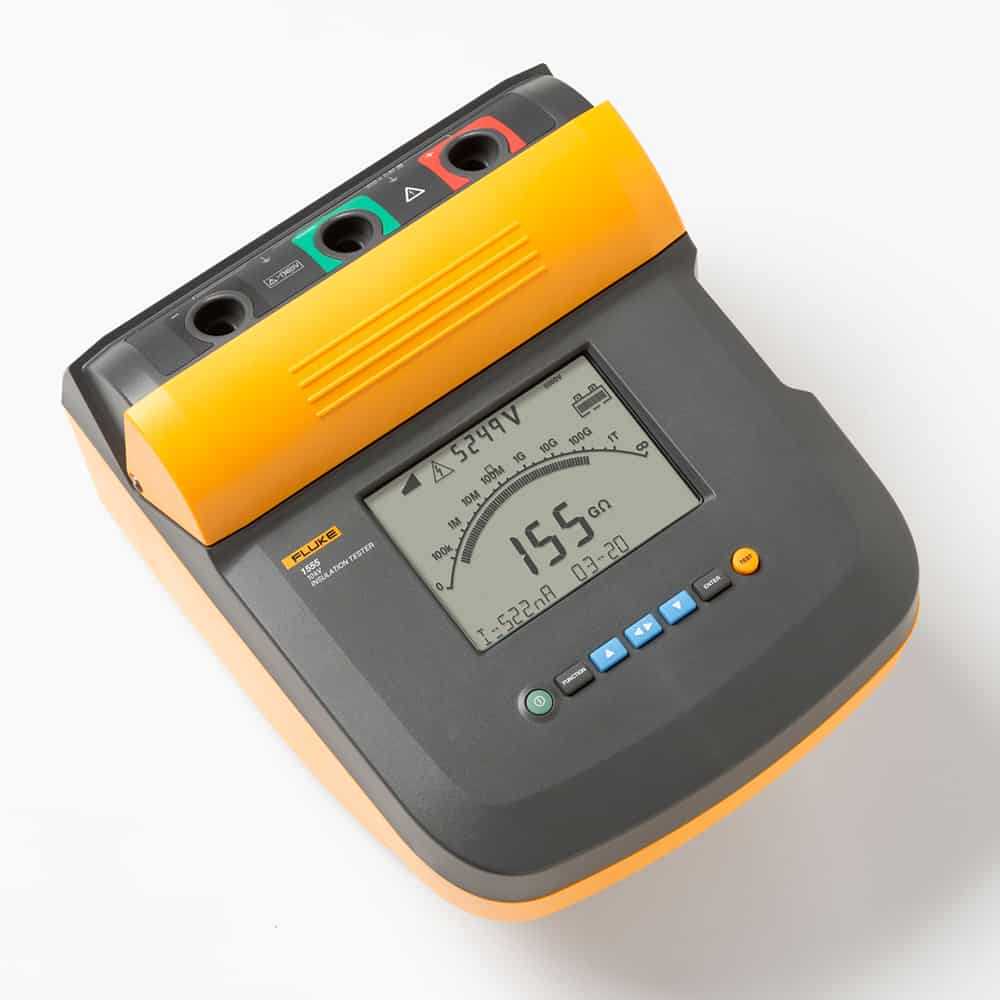

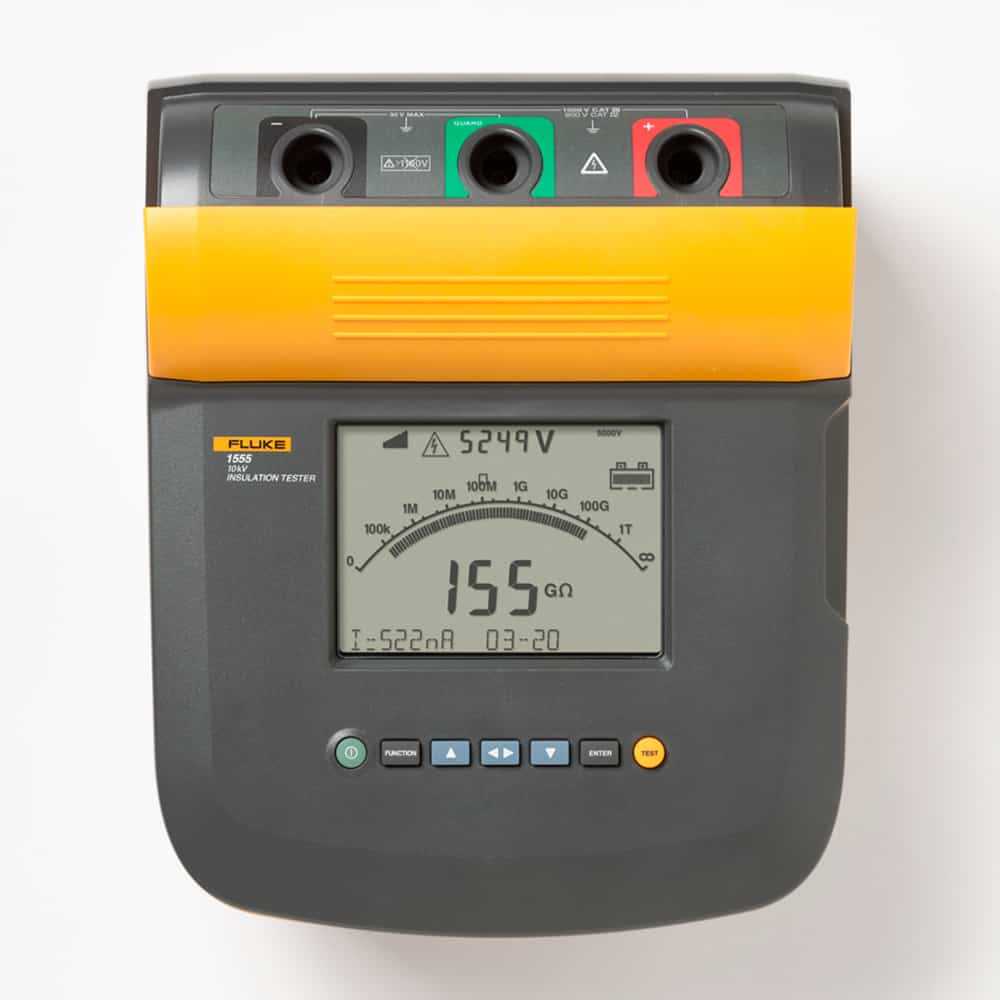

Fluke 1555 Insulation Resistance Tester, CAT IV 600V, 250V - 10000V is a product engineered with precision, delivering exceptional performance
with features like test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™, cAT III 1000 V CAT IV 600 V safety rating and warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety.
Maintive brings to you 100% genuine Insulation Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1555 Insulation Resistance Tester, CAT IV 600V, 250V - 10000V today at the best price only from Maintive.
Features
Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
CAT III 1000 V; CAT IV 600 V safety rating
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
Selectable test voltages in 50 V steps from 250 V to 1000 V; and 100 V steps above 1000 V
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall

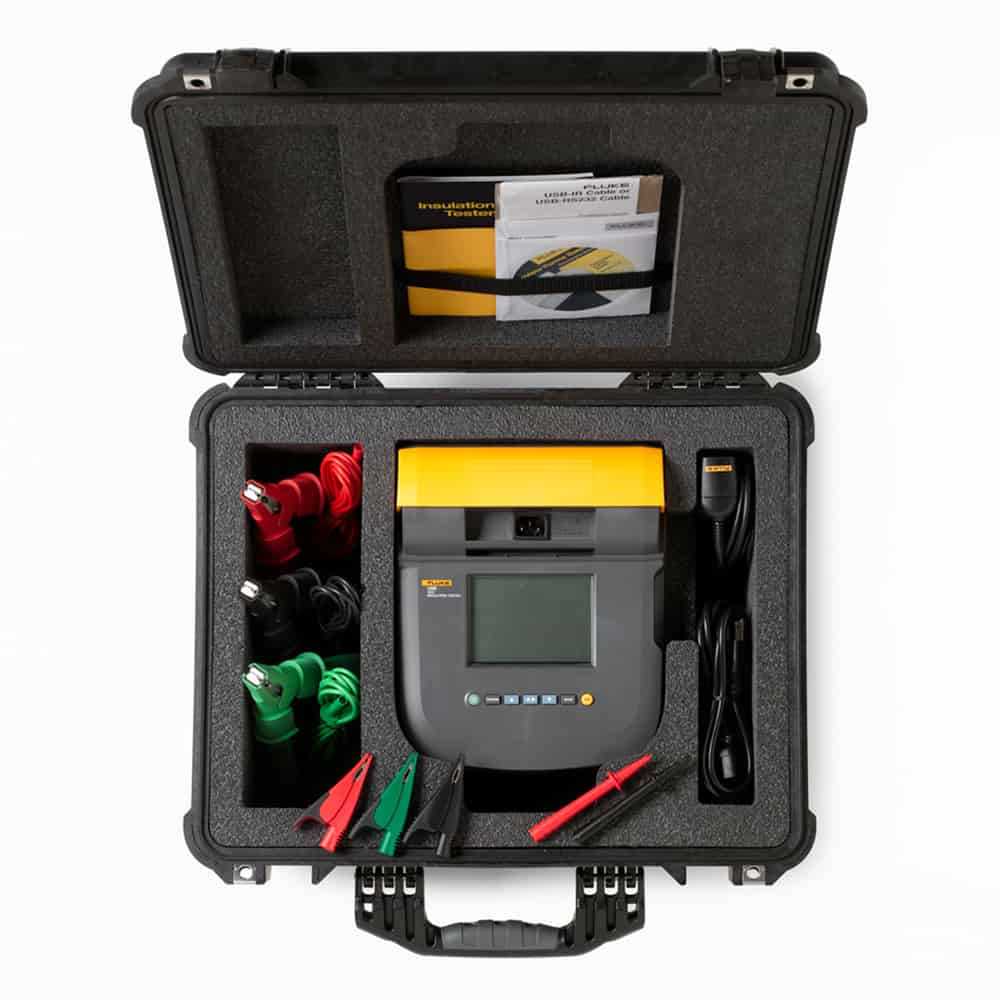

Items Included
Test cables with alligator clips (red
black
green)
Infrared adapter with interface cable
FlukeView Forms Basic CD-ROM
AC power cord
Soft carrying case
English manual
User’s manual on CD-ROM
Quick reference card
Software license agreement
Registration card
FlukeView¨ Forms installation guide
USB-IR cable installation guide
Heavy duty alligator clip leads
Specifications
Insulation test voltage accuracy-0%, +10% at 1 mA load current
Display75 x 105 mm
Power12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC)85 V to 250 V AC 50/60 Hz 20 VA
Dimensions269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Temperature (storage)-20°C to 65°C (-4°F to 149°F)
Humidity80% to 31°C decreasing linearly to 50% at 50°C
Warranty3 years manufacturer's warranty
Insulation test voltage accuracy-0%, +10% at 1 mA load current
Display75 x 105 mm
Power12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC)85 V to 250 V AC 50/60 Hz 20 VA
Dimensions269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Temperature (storage)-20°C to 65°C (-4°F to 149°F)
Humidity80% to 31°C decreasing linearly to 50% at 50°C
Warranty3 years manufacturer's warranty
