Fluke 1555/Kit
Fluke 1555/Kit
Fluke 1555/Kit

Insulation Resistance Tester Kit, CAT IV 600V, 250V - 10000V

Model # 1555/Kit
10+ Ratings
AED 23,310.00Incl. of VAT
Limited Stock
Fluke Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25

Important Information: Ensure Genuine Products and Warranty Coverage

This item is eligible for return.
delivery
Delivery
Saturday, Jun 22
FREE
Click & Collect
Click & Collect
Today, 9:00 AM - 4:30 PM

You may also like...

Product Information

Fluke 1555/Kit Insulation Resistance Tester Kit, CAT IV 600V, 250V - 10000V is a product engineered with precision, delivering exceptional performance

with features like test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™, warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety and selectable test voltages in 50 V steps from 250 V to 1000 V and 100 V steps above 1000 V.
Maintive brings to you 100% genuine Insulation Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1555/Kit Insulation Resistance Tester Kit, CAT IV 600V, 250V - 10000V today at the best price only from Maintive.

Features

  • Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user-defined label for easy recall
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall

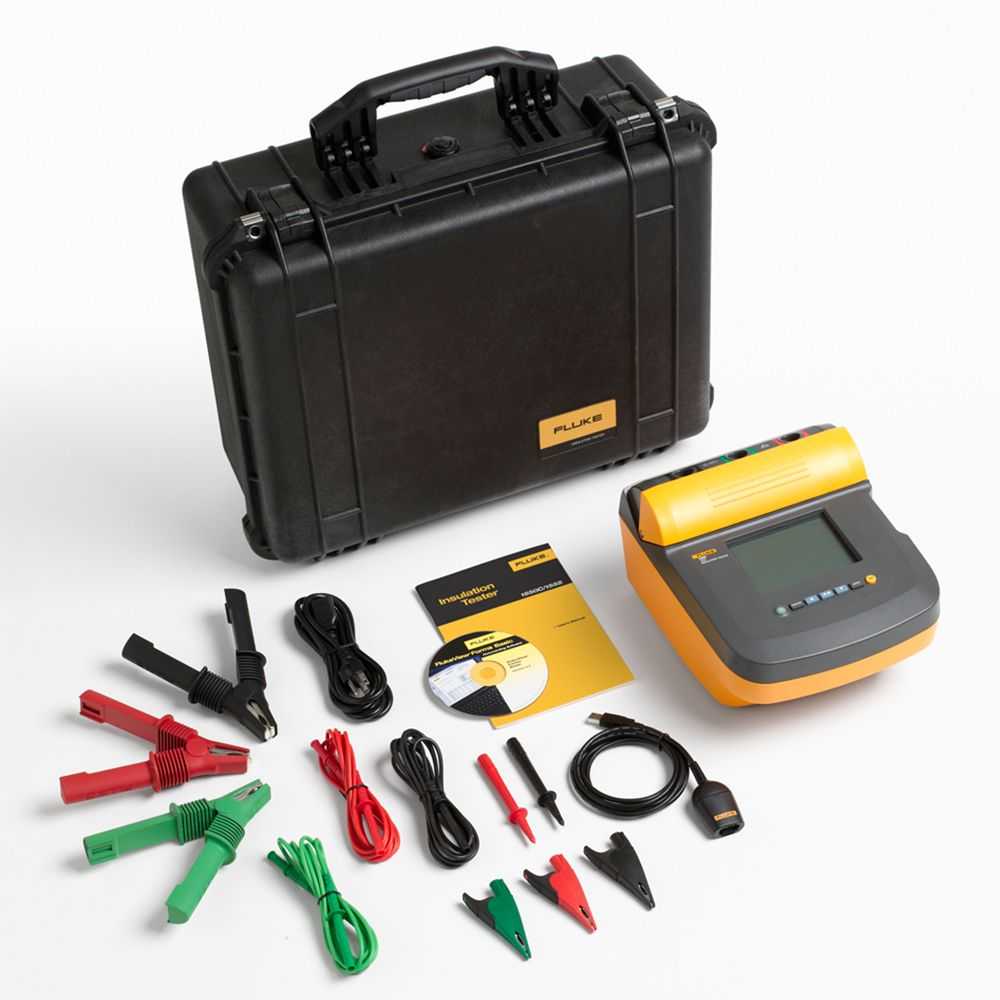

Items Included

  • 1555 Insulation Tester
  • Test Cables with Alligator Clips (red, black, green)
  • Infrared adapter with interface cable
  • AC Power Cord
  • Quick Reference Card
  • USB-IR Cable Installation Guide
  • IP67 Hard Case
  • Certificate of Calibration
  • Heavy Duty Alligator Clip Leads

Specifications

  • Test Voltage DC250V, 500V, 1000V, 2500V, 5000V, 10000V
  • Insulation Resistance0 to 2 TΩ
  • Insulation test voltage accuracy-0%, +10% at 1 mA load current
  • Induced AC mains current rejection2 mA maximum
  • Leakage current measurementRange; 1 nA to 2 mA
  • Accuracy±(5% + 2 nA)
  • Capacitance measurementRange; 0.01 μF to 15.00 μF
  • Accuracy±(15% rdg + 0.03 μF)
  • Display75 x 105 mm
  • Temperature (storage)-20°C to 65°C (-4°F to 149°F)
  • Humidity80% to 31°C decreasing linearly to 50% at 50°C
  • Warranty3 years manufacturer's warranty
