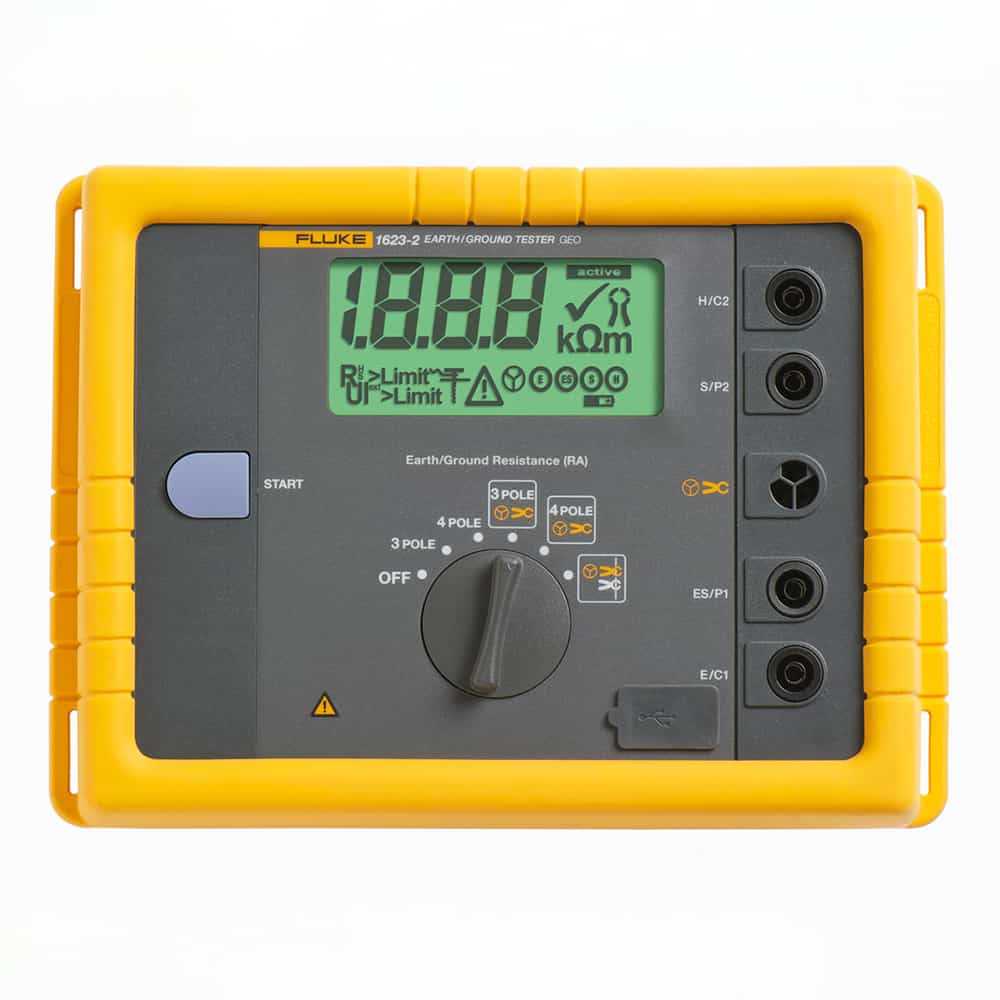

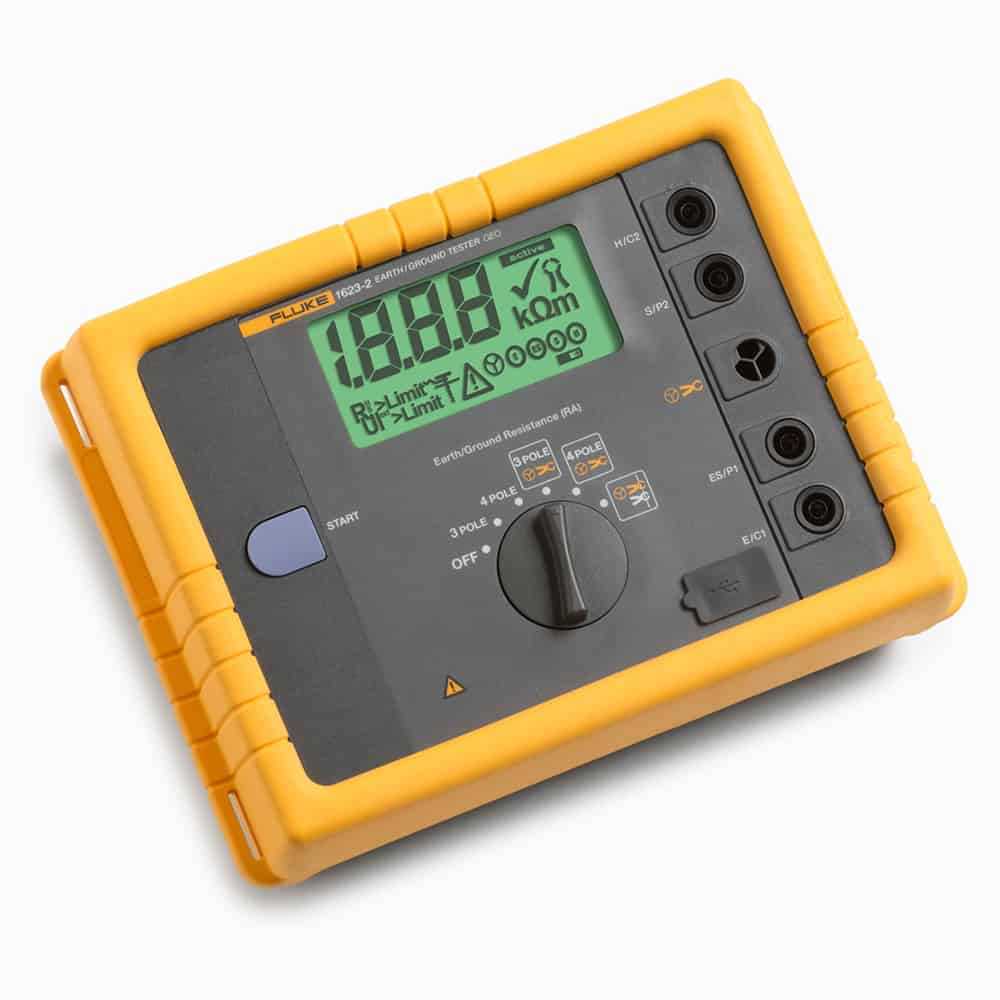

Fluke 1623-2 Geo Earth Ground Resistance Meter, 100kΩ, 48V AC, 128Hz is a product engineered with precision, delivering exceptional performance
with features like the Fluke 16232 earth ground tester is able to measure earth ground loop resistances using only clamps, performs selective earth ground rod testing one clamp + stakes and it is a unique earth ground tester that can perform all four types of earth ground measurement.
Maintive brings to you 100% genuine Earth Ground Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1623-2 Geo Earth Ground Resistance Meter, 100kΩ, 48V AC, 128Hz today at the best price only from Maintive.
Features
The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps.
Performs selective earth ground rod testing (one clamp + stakes)
It is a unique earth ground tester that can perform all four types of earth ground measurement
3- and 4-Pole Fall-of-Potential (using stakes)
Performs stakeless earth ground rod testing (two clamps)
Includes USB port for data storage and transfer
Works with world class that speed set up and test time
Comes with a rugged carrying case

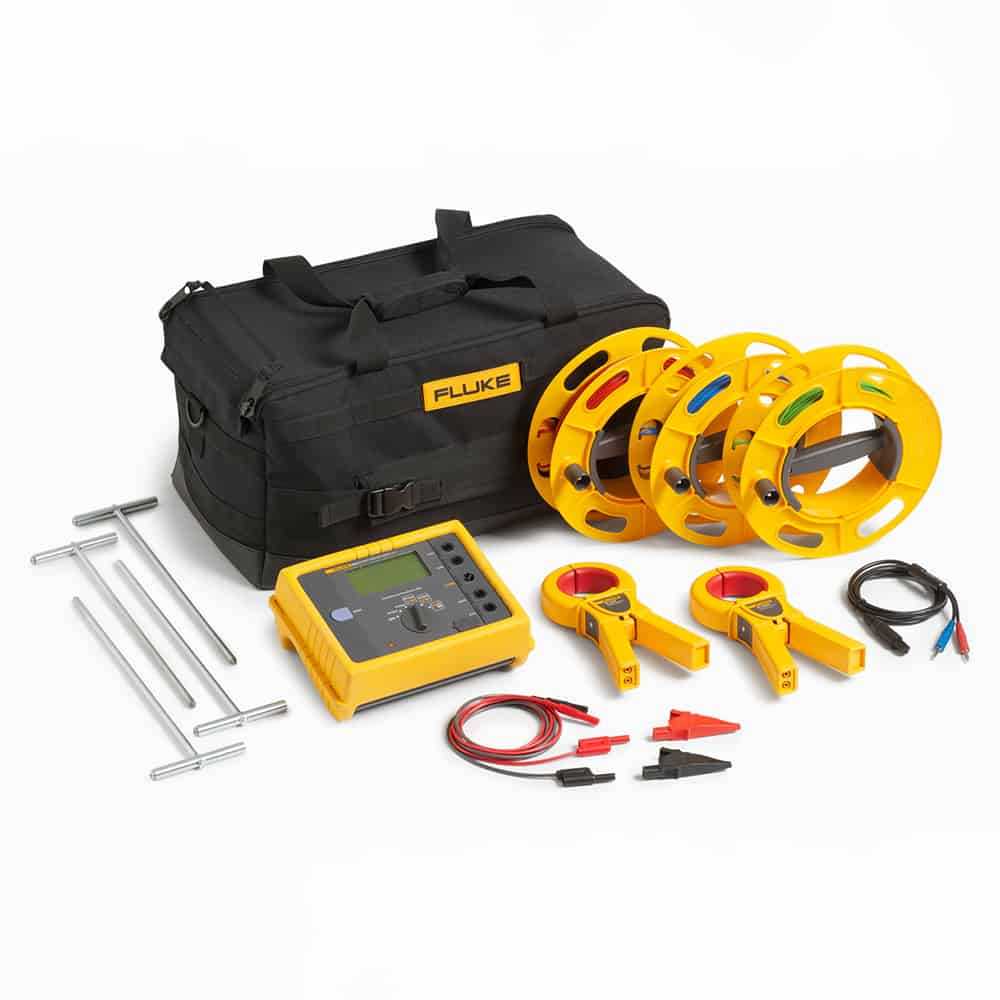

Items Included
GEO Earth Ground Tester
User's Manual
Batteries
Quick Reference Guide
USB Cable
2 Clamps
C1620 Professional Carrying Case
4 Earth Ground Stakes
3 Cable Reels
Specifications
Switch positionRA 3-pole
Ground Resistance0.020 to 19.99 kΩ
Resolution0.001 to 10 Ω
Accuracy±(2% rdg + 3 d)
Voltage Measurement48V AC
Short-circuit current>50mA
Frequency Measurement128Hz
Probe ResistanceMax 100kΩ
Operating error±(5% rdg + 3 d)
Display1999 digit LCD: Display with special symbolst
Operating temperature-10°C to 50°C (14°F to 122°F)
Storage temperature-30°C to 60°C (-22°F to 140°F)
Temperature coefficient±0.1% of reading/°C < 18°C > 28°C
Climatic classC1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH
Warranty2 years manufacturer's warranty
Switch positionRA 3-pole
Ground Resistance0.020 to 19.99 kΩ
Resolution0.001 to 10 Ω
Accuracy±(2% rdg + 3 d)
Voltage Measurement48V AC
Short-circuit current>50mA
Frequency Measurement128Hz
Probe ResistanceMax 100kΩ
Operating error±(5% rdg + 3 d)
Display1999 digit LCD: Display with special symbolst
Operating temperature-10°C to 50°C (14°F to 122°F)
Storage temperature-30°C to 60°C (-22°F to 140°F)
Temperature coefficient±0.1% of reading/°C < 18°C > 28°C
Climatic classC1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH
Warranty2 years manufacturer's warranty
