Fluke 1623-2 Kit Basic Geo Earth Ground Tester Kit, 100kΩ, 48V AC, 128 Hz is a product engineered with precision, delivering exceptional performance
with features like 3 and 4pole FallofPotential earth resistance loop testing, 4pole Soil Resistivity testing and selective earth ground rod testing using 1 clamp.
Maintive brings to you 100% genuine Earth Ground Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1623-2 Kit Basic Geo Earth Ground Tester Kit, 100kΩ, 48V AC, 128 Hz today at the best price only from Maintive.
Features
3- and 4-pole Fall-of-Potential; earth resistance loop testing
4-pole Soil Resistivity testing
Selective earth ground rod testing using 1 clamp
Stakeless earth ground rod testing using 2 clamps
IP56 rated for outdoor use
Rugged carrying case
USB data storage and transfer

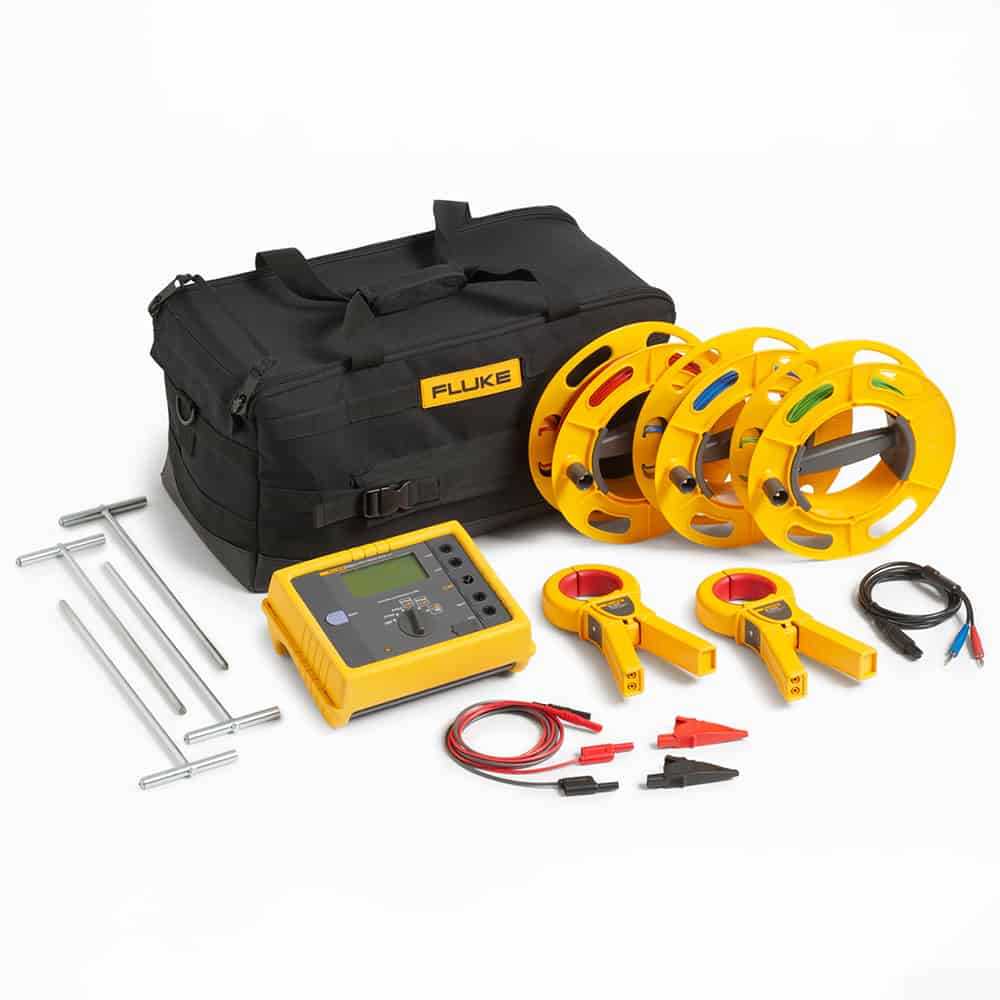

Items Included
GEO Earth Ground Tester
Users Manual
Batteries
Quick Reference Guide
USB Cable
2 Clamps
C1620 Professional Carrying Case
4 Earth Ground Stakes
3 Cable Reels
Specifications
Switch positionRA 3-pole
Ground Resistance0.020 to 19.99 kΩ
Resolution0.001 to 10 Ω
Accuracy±(2% rdg + 3 d)
Voltage Measurement48V AC
Short-circuit current>50mA
Frequency Measurement128Hz
Probe ResistanceMax 100kΩ
Operating error±(5% rdg + 3 d)
Display1999 digit LCD: Display with special symbolst
Operating temperature-10°C to 50°C (14°F to 122°F)
Storage temperature-30°C to 60°C (-22°F to 140°F)
Temperature coefficient±0.1% of reading/°C < 18°C > 28°C
Climatic classC1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH
Dimensions250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
Warranty2 years manufacturer's warranty
Switch positionRA 3-pole
Ground Resistance0.020 to 19.99 kΩ
Resolution0.001 to 10 Ω
Accuracy±(2% rdg + 3 d)
Voltage Measurement48V AC
Short-circuit current>50mA
Frequency Measurement128Hz
Probe ResistanceMax 100kΩ
Operating error±(5% rdg + 3 d)
Display1999 digit LCD: Display with special symbolst
Operating temperature-10°C to 50°C (14°F to 122°F)
Storage temperature-30°C to 60°C (-22°F to 140°F)
Temperature coefficient±0.1% of reading/°C < 18°C > 28°C
Climatic classC1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH
Dimensions250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
Warranty2 years manufacturer's warranty
