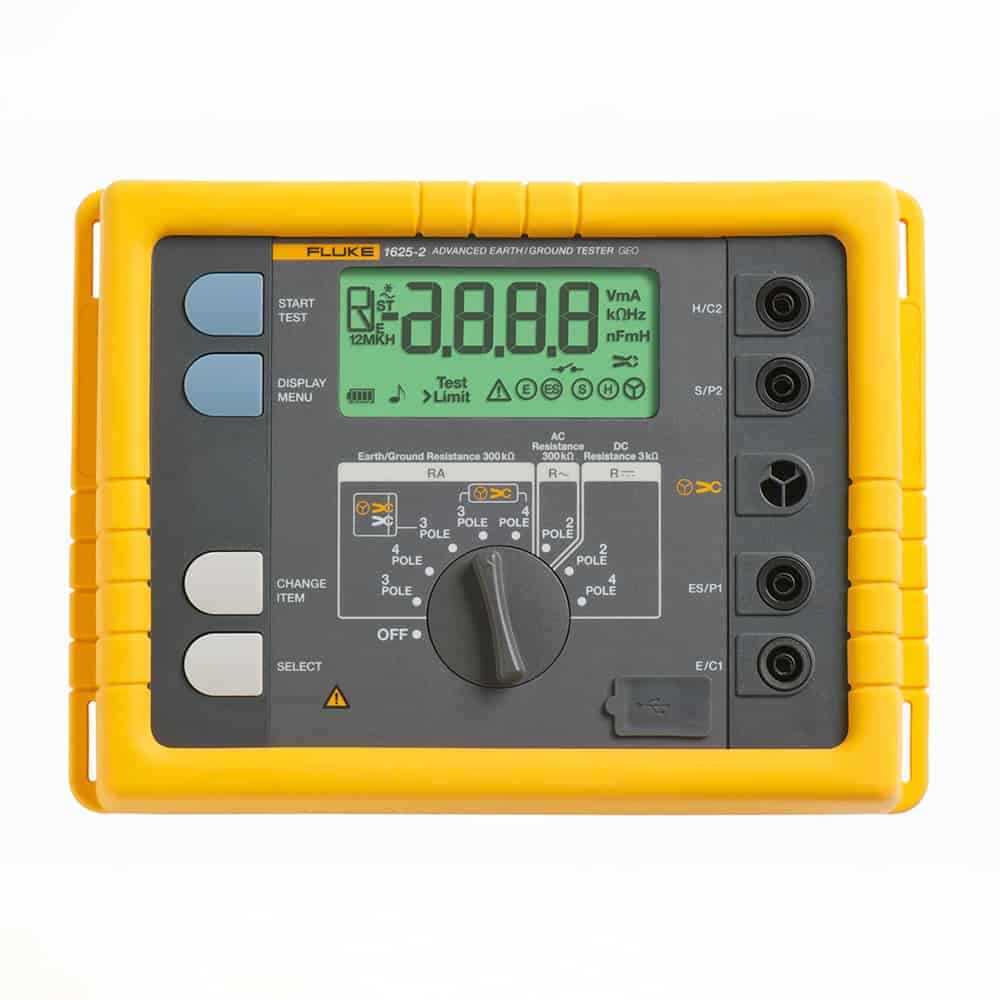

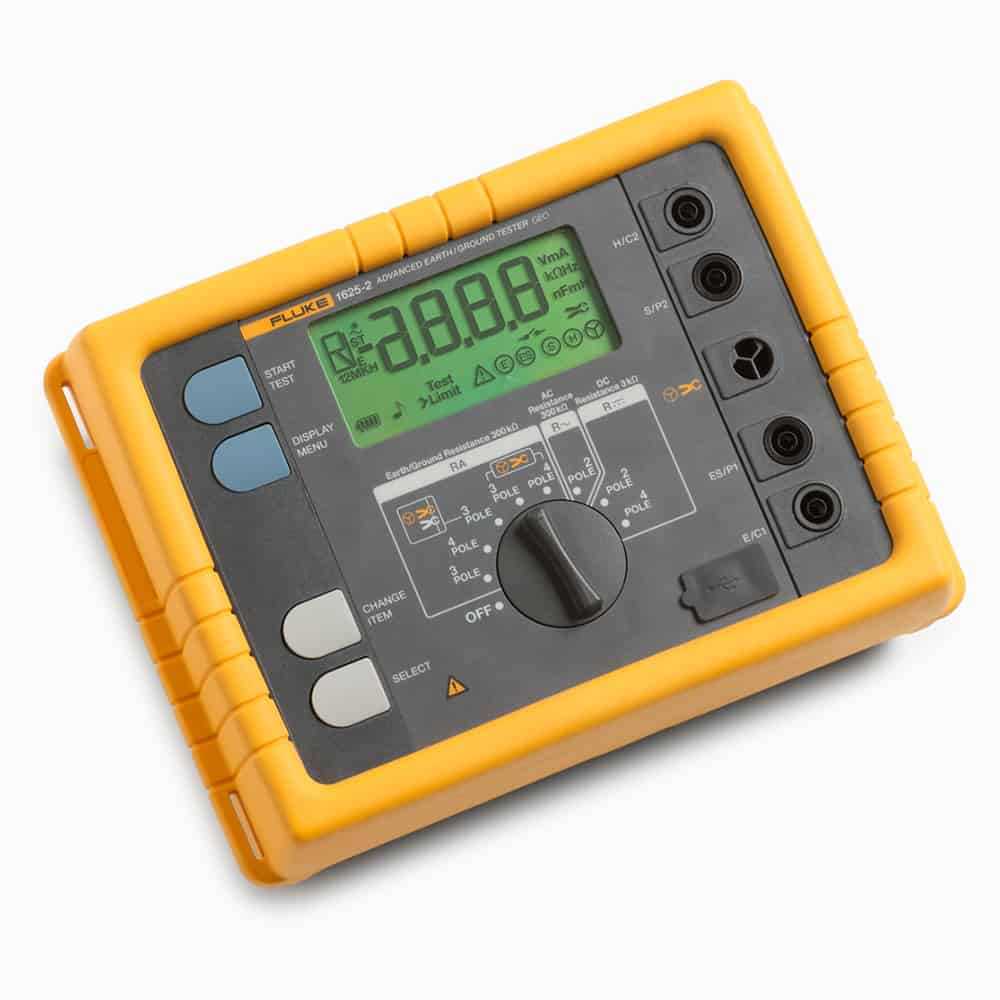

Geo Earth Ground Tester, 300kΩ, 50V, 128Hz

Model # 1625-2
AED 12,285.00Incl. of VAT
This item is eligible for return
Orders over AED 99 ship free in the UAE.
Want to know when it's back in stock?
Secure Transaction
COD

Features

  • 3- and 4-pole Fall-of-Potential; earth resistance loop testing
  • A unique earth ground tester that performs testing with and without stakes
  • Selective earth ground rod testing using 1 clamp
  • Stakeless earth ground rod testing using 2 clamps
  • Features Automatic Frequency Control (AFC) to minimize the effect of interference
  • Provides R* measurement that calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see
  • Includes USB port for data storage and transfer
  • Features IP56 rating for outdoor use
  • Offers adjustable limits for quicker testing

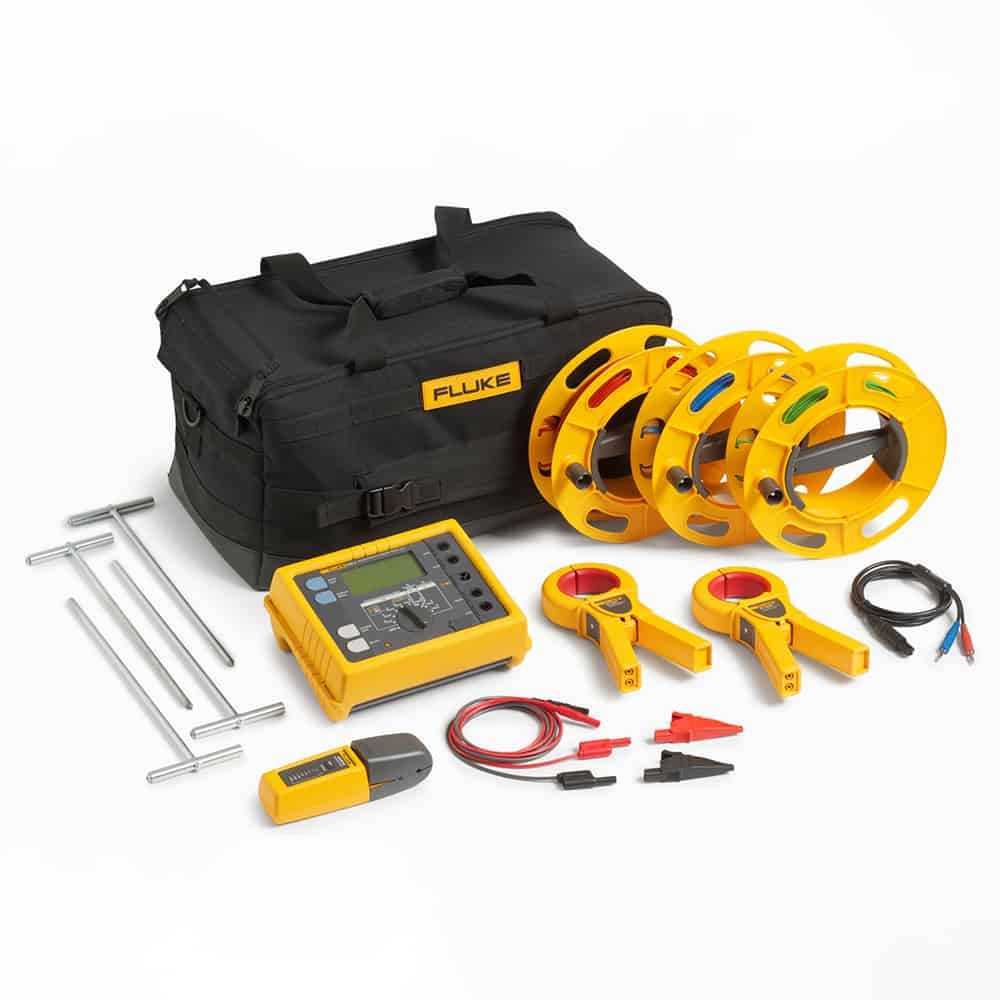

Items Included

  • GEO Earth Ground Tester
  • User's Manual
  • Batteries
  • Quick Reference Guide
  • USB Cable

Specifications

  • Interference Voltage1V to 50V
  • Resolution0.1 V
  • Accuracy±(5% of rdg + 5 digit)
  • Resistance0.020 Ω to 300 kΩ
  • Interference Frequency6Hz - 400Hz
  • Resolution0.1Hz to 1Hz
  • Accuracy±(1% of rdg + 2 digit)
  • Frequency128Hz
  • Noise Rejection120 dB
  • Max. Overload250V
  • Display4 digit (2999 Digit) - 7 segment liquid crystal display, with improved visibility
  • Operating temperature-10°C to 50°C (14°F to 122°F)
  • Storage temperature-30°C to 60°C (-22°F to 140°F)
  • Temperature coefficient±0.1% of reading/°C < 18°C > 28°C
  • OperationCentral rotary switch and function keys
  • Dimensions (W x H x D)250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
  • Case materialPolyester
  • Warranty2 years manufacturer's warranty
