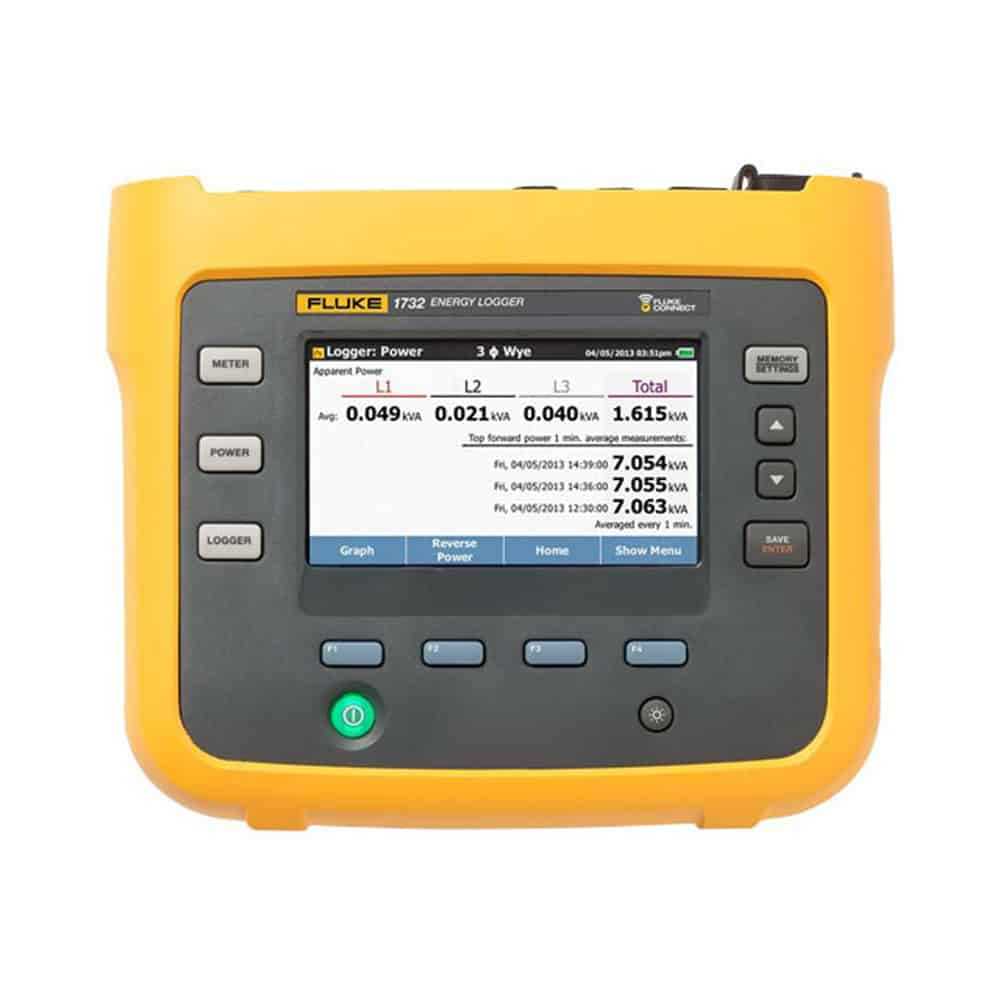

Fluke 1732/EUS Electrical Energy Logger With Current Probes, 3 Phase, 1000V is a product engineered with precision, delivering exceptional performance
with features like key measurements Automatically capture and log voltage current power power factor energy and associated values, convenient instrument powering You can power the instrument directly from the measured circuit instead of mains outlets and highest safety rating in the industry 600 V CAT IV1000 V CAT III rated for use at the service entrance and downstream.
Maintive brings to you 100% genuine Power And Energy Loggers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1732/EUS Electrical Energy Logger With Current Probes, 3 Phase, 1000V today at the best price only from Maintive.
Features
Key measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
Convenient instrument powering: You can power the instrument directly from the measured circuit instead of mains outlets
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
Measure all three phases
Comprehensive logging: more than 20 separate logging sessions can be stored on the instruments
Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
Optimized user interface: capture the right data every time with quick, guided, graphical setup and reduce uncertainty about your connections with the intelligent verification function
Complete "in-the-field" setup through the front panel or Fluke Connect: no need to return to the workshop for download and setup or to take a computer to the electrical panel
Items Included
Energy Logger
Voltage Test Leads 4 x Alligator Clips
3 x Flexible Current Probe
Energy Analyze Plus Software
Line Cords
Carrying Case
Power Supply Color Coding Set
and Documentation on USB Flash Drive
Specifications
Voltage1000 V
Voltage Resolution0.1 V
Frequency Range42.5 to 69 Hz
Frequency Resolution0.01 Hz
Power ConsumptionMaximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Voltage Inputs4 (3 phases and neutral)
Current Inputs3, mode selected automatically for attached sensor
Auxiliary Inputs2
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature −4 to 140°F (-20 to 60°C) With battery−4 to 122°F (-20 to 50°C)
SafetyCAT IV 600 V/CAT III 1000 V
Warranty2 years manufacturer's warranty
Voltage1000 V
Voltage Resolution0.1 V
Frequency Range42.5 to 69 Hz
Frequency Resolution0.01 Hz
Power ConsumptionMaximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Voltage Inputs4 (3 phases and neutral)
Current Inputs3, mode selected automatically for attached sensor
Auxiliary Inputs2
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature −4 to 140°F (-20 to 60°C) With battery−4 to 122°F (-20 to 50°C)
SafetyCAT IV 600 V/CAT III 1000 V
Warranty2 years manufacturer's warranty
