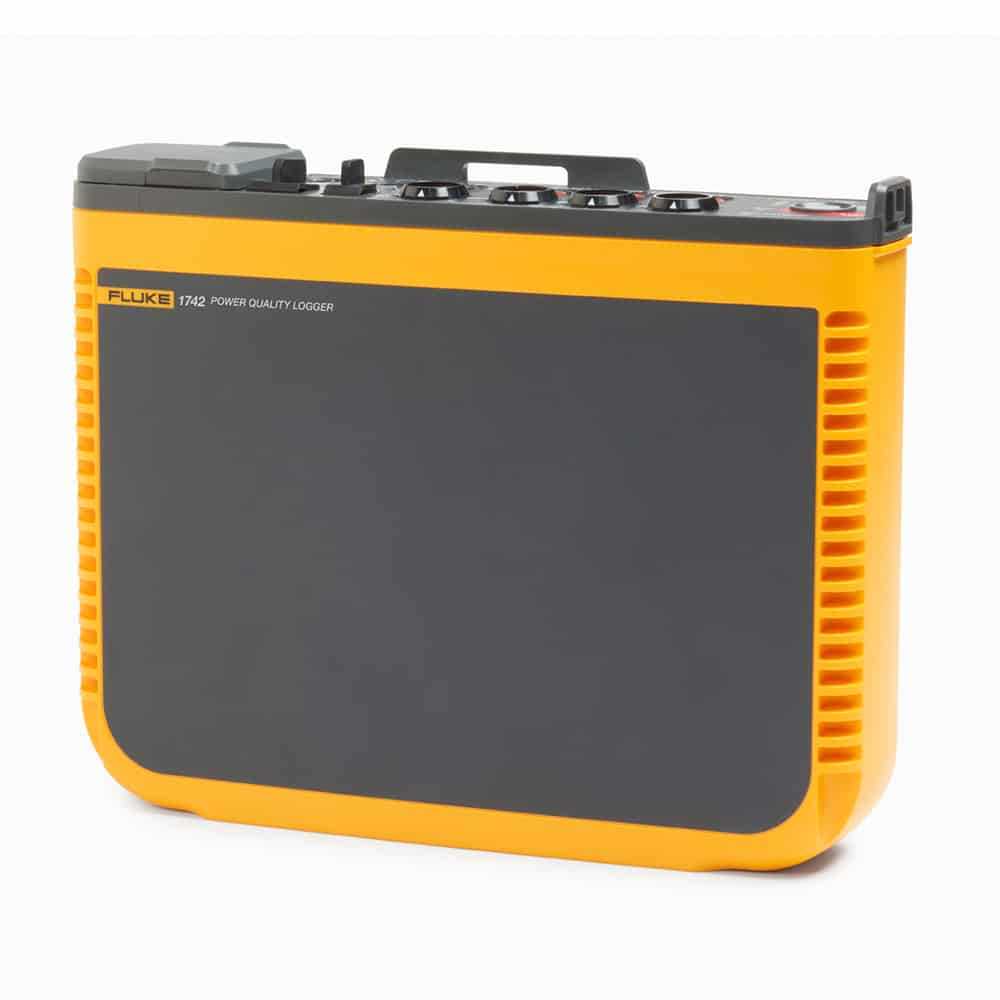

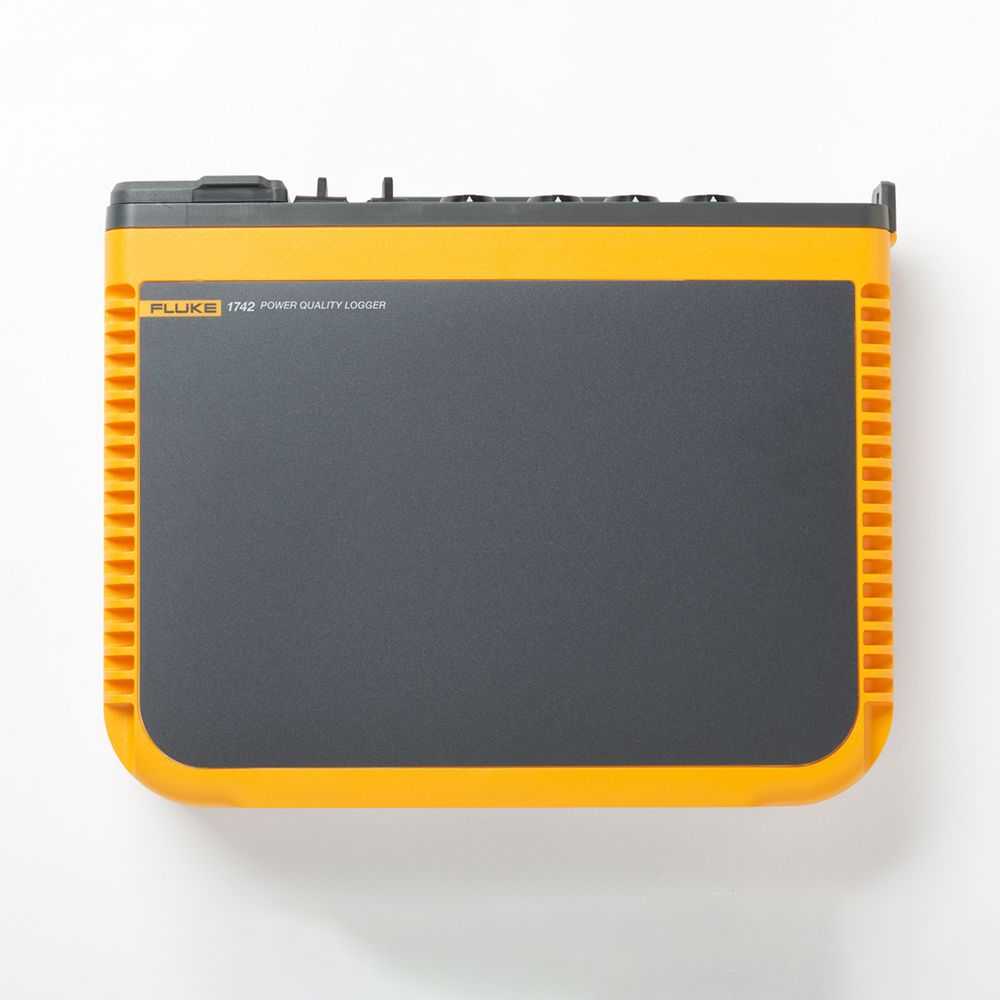

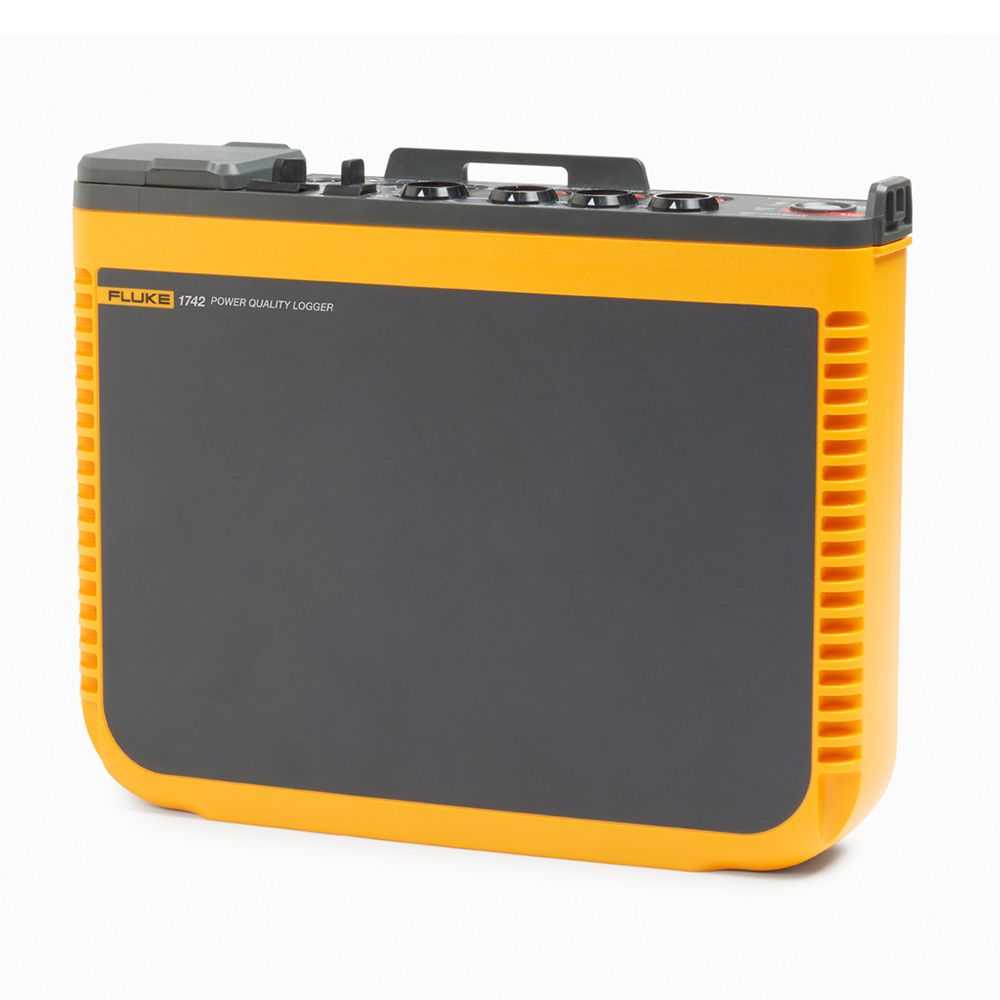

Fluke 1742/15/INTL Power Quality Logger With 60cm 1500A iFlex, Intl is a product engineered with precision, delivering exceptional performance
with features like measures harmonics and interharmonics for voltage and current also includes unbalance flicker and rapid voltage changes, meets the rigorous IEC 61000430 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods' and create standardized reports according to commonly used standards like EN 50160 IEEE 519 GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
Maintive brings to you 100% genuine Power Quality Loggers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1742/15/INTL Power Quality Logger With 60cm 1500A iFlex, Intl today at the best price only from Maintive.
Features
Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'

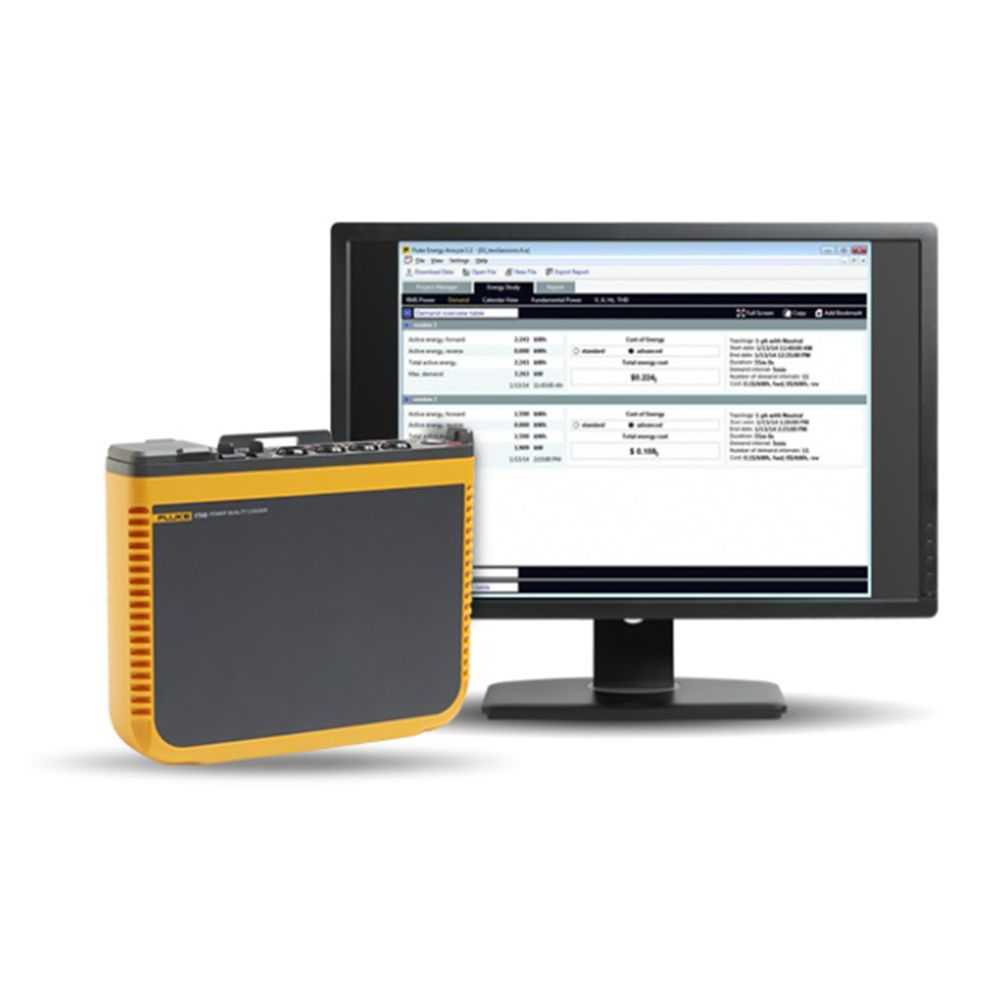

Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord
Items Included
Fluke 1742 Logger
Soft storage bag/case
Voltage test lead (3-phase + N)
Alligator clips (blue) (x2)
Alligator clips (black) (x4)
Set of cable markers
Mains power cable
Mains adapter MA-C8
Set of 2 test leads (stack and non-stackable, blue, 7 in.)
Set of 2 test leads (non-stackable, blue, 79 in.)
USB Cable
i17xx-flex1500IP 24 inch current probes (x4)
WiFi/BLE-to-USB Adapter
Specifications
Operating temperature-25 °C to +50 °C (-13 °F to 122 °F)1
Storage temperature without battery-25 °C to +60 °C (-13 °F to 140 °F)
Storage temperature with battery-20 °C to +50 °C (-4 °F to 122 °F)
Operating altitude2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Storage altitude12,000 m
Dimensions23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
Relative humidity, operating15% to 85% non-condensing
Warranty2 years manufacturer's warranty
Operating temperature-25 °C to +50 °C (-13 °F to 122 °F)1
Storage temperature without battery-25 °C to +60 °C (-13 °F to 140 °F)
Storage temperature with battery-20 °C to +50 °C (-4 °F to 122 °F)
Operating altitude2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Storage altitude12,000 m
Dimensions23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
Relative humidity, operating15% to 85% non-condensing
