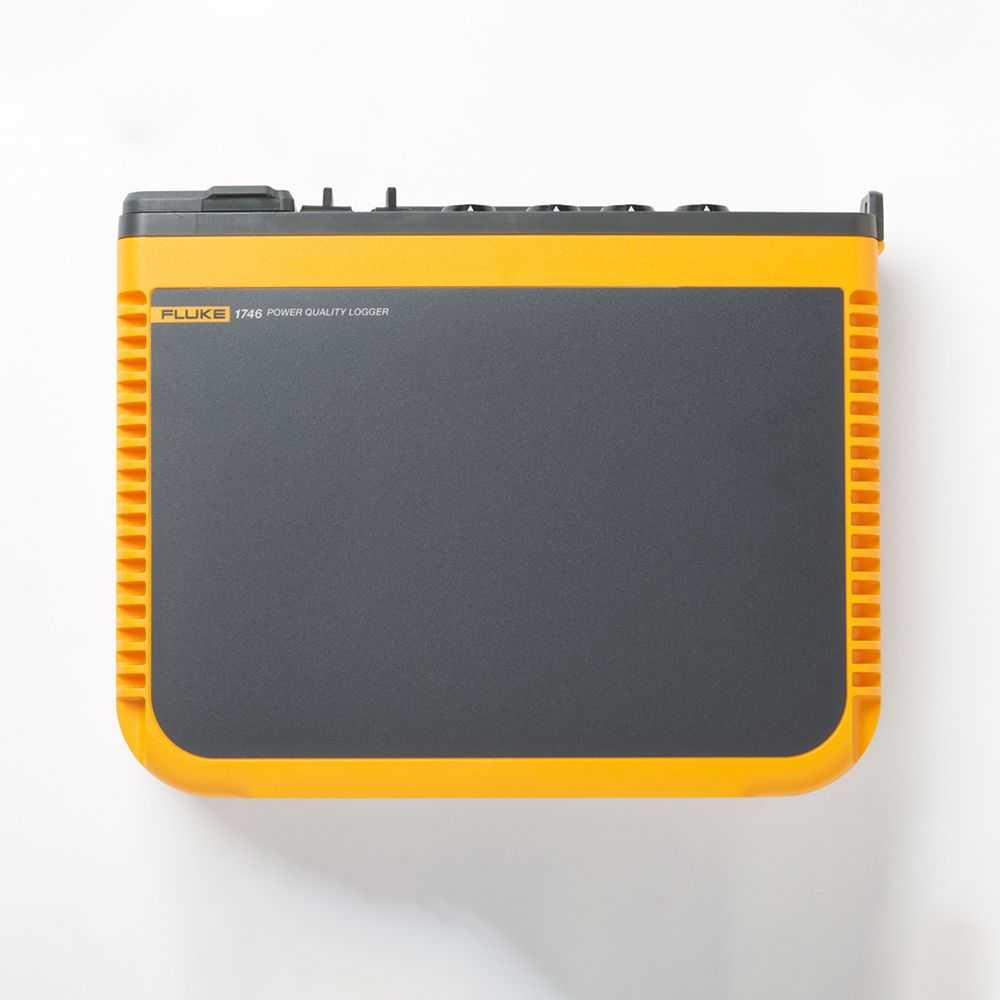

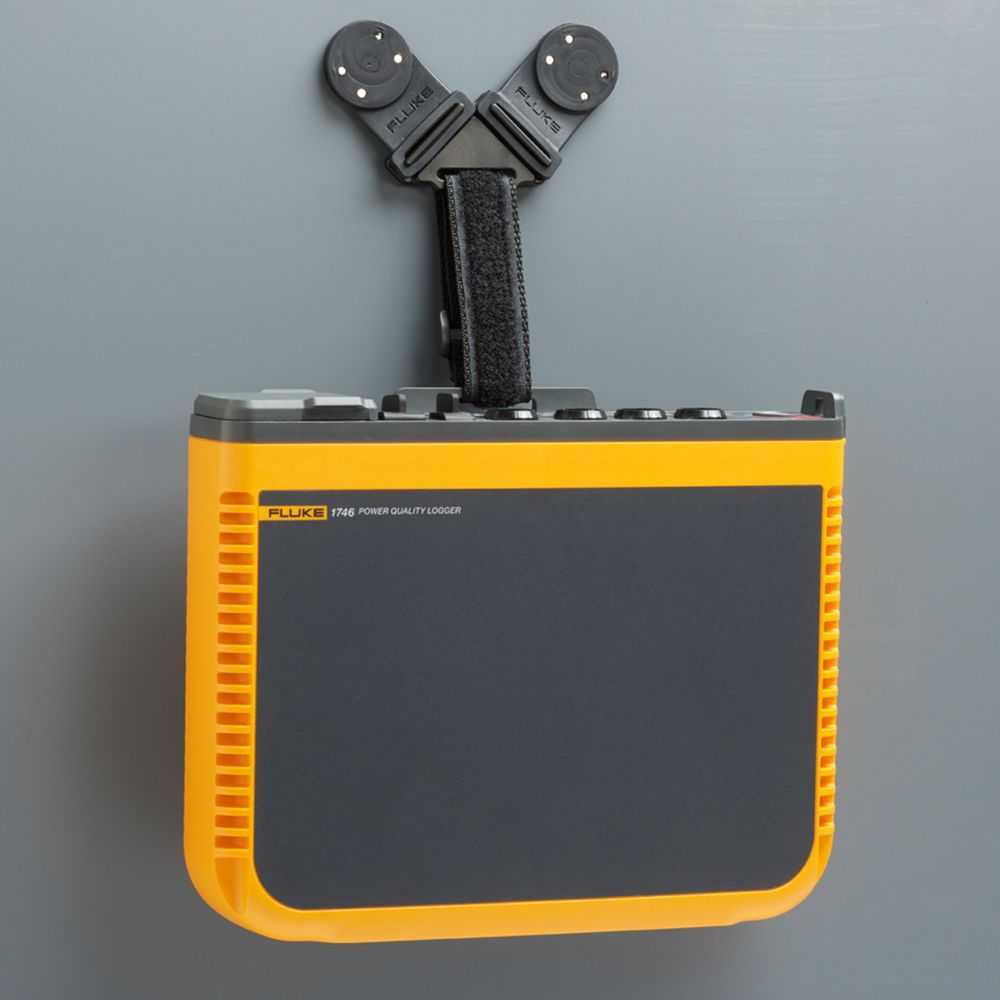

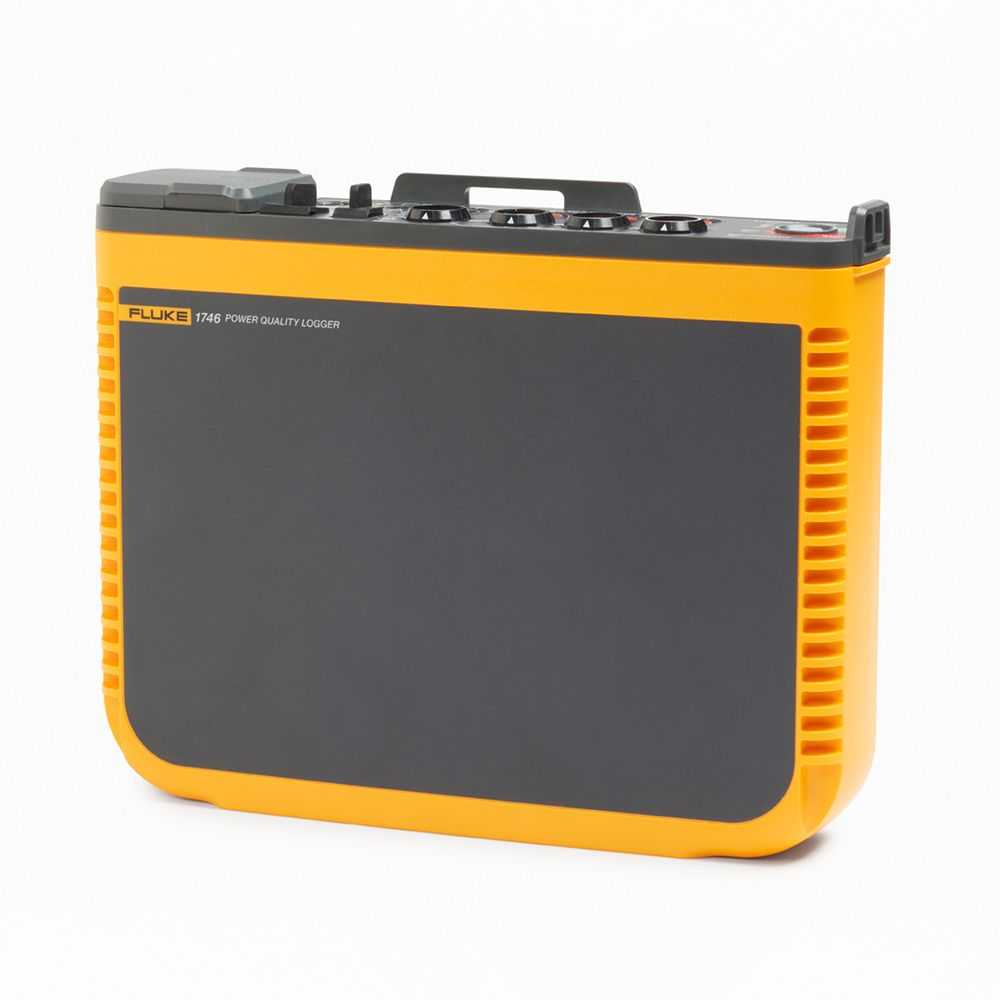

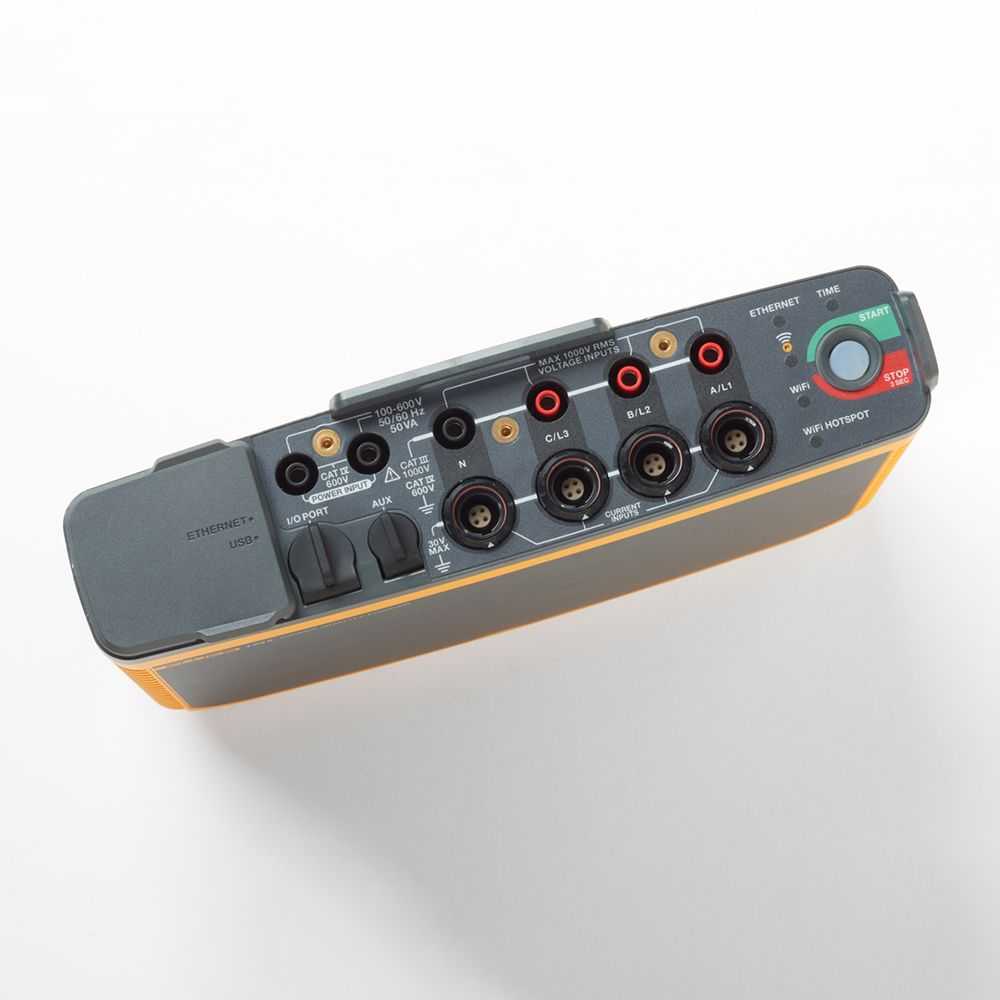

Fluke 1746/30/INTL Power Quality Logger with 3000A iFlex 60 cm, Intl is a product engineered with precision, delivering exceptional performance
with features like measures harmonics and interharmonics for voltage and current also includes unbalance flicker and rapid voltage changes, meets the rigorous IEC 61000430 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods' and create standardized reports according to commonly used standards like EN 50160 IEEE 519 GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
Maintive brings to you 100% genuine Power Quality Loggers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1746/30/INTL Power Quality Logger with 3000A iFlex 60 cm, Intl today at the best price only from Maintive.
Features
Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'
Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord

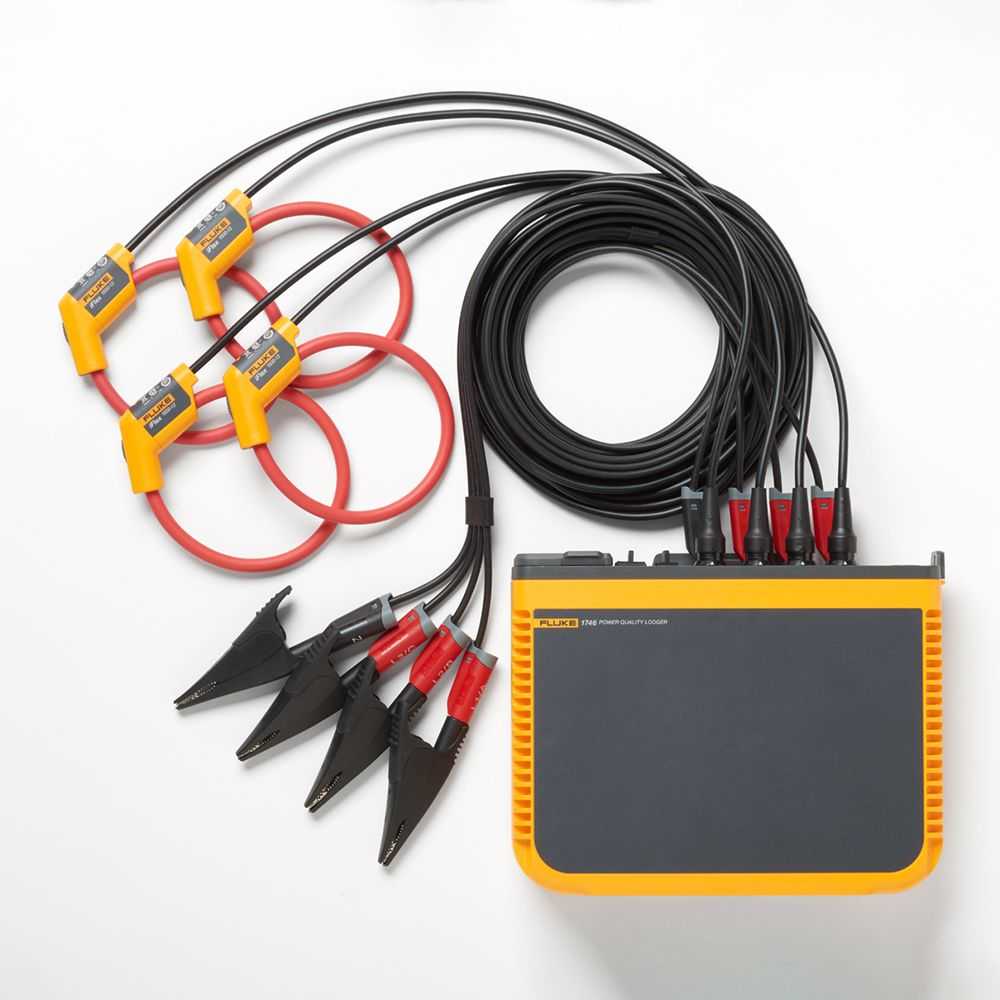

Items Included
Fluke 1746 Logger
Soft storage bag/case
Voltage test lead (3-phase + N)
Alligator clips (blue) (x2)
Alligator clips (black) (x4)
Set of cable markers
Mains power cable
Mains adapter MA-C8
Set of 2 test leads (stack and non-stackable, blue, 7 in.)
Set of 2 test leads (non-stackable, blue, 79 in.)
USB Cable
Magnet probes (x4)
i17xx-flex3000IP 24 inch current probes (x4)
WiFi/BLE-to-USB Adapter
Specifications
Voltage range (Using safety plug)100 V to 500 V
Voltage range (Using standard power cord)100 V to 240 V
Power consumptionMaximum 50 VA
Efficiency≥ 68.2%
Maximum no-load consumption< 0.3 W
Mains power frequency50/60 Hz ±15%
BatteryLi-ion 3.7 V, 9.25 Wh (replaceable)
Resolution16-bit synchronous sampling
Sampling frequency10.24 kHz at 50/60 Hz, synchronized to mains frequency
Warranty2 years manufacturer's warranty
Voltage range (Using safety plug)100 V to 500 V
Voltage range (Using standard power cord)100 V to 240 V
Power consumptionMaximum 50 VA
Efficiency≥ 68.2%
Maximum no-load consumption< 0.3 W
Mains power frequency50/60 Hz ±15%
BatteryLi-ion 3.7 V, 9.25 Wh (replaceable)
Resolution16-bit synchronous sampling
Sampling frequency10.24 kHz at 50/60 Hz, synchronized to mains frequency
