Fluke 1748/30/EUS Three-Phase Power Quality Logger with 60cm 3000A iFlex Current Probes is a product engineered with precision, delivering exceptional performance
with features like measures harmonics and interharmonics for voltage and current also includes unbalance flicker and rapid voltage changes, meets the rigorous IEC 61000430 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods' and create standardized reports according to commonly used standards like EN 50160 IEEE 519 GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
Maintive brings to you 100% genuine Power Quality Loggers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1748/30/EUS Three-Phase Power Quality Logger with 60cm 3000A iFlex Current Probes today at the best price only from Maintive.
Features
Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'
Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord
Includes event waveform capture and RMS event profile, along with date, timestamp and severity information to help pinpoint potential root causes of power quality issues.
Items Included
Fluke 1748 Logger
Soft storage bag/case

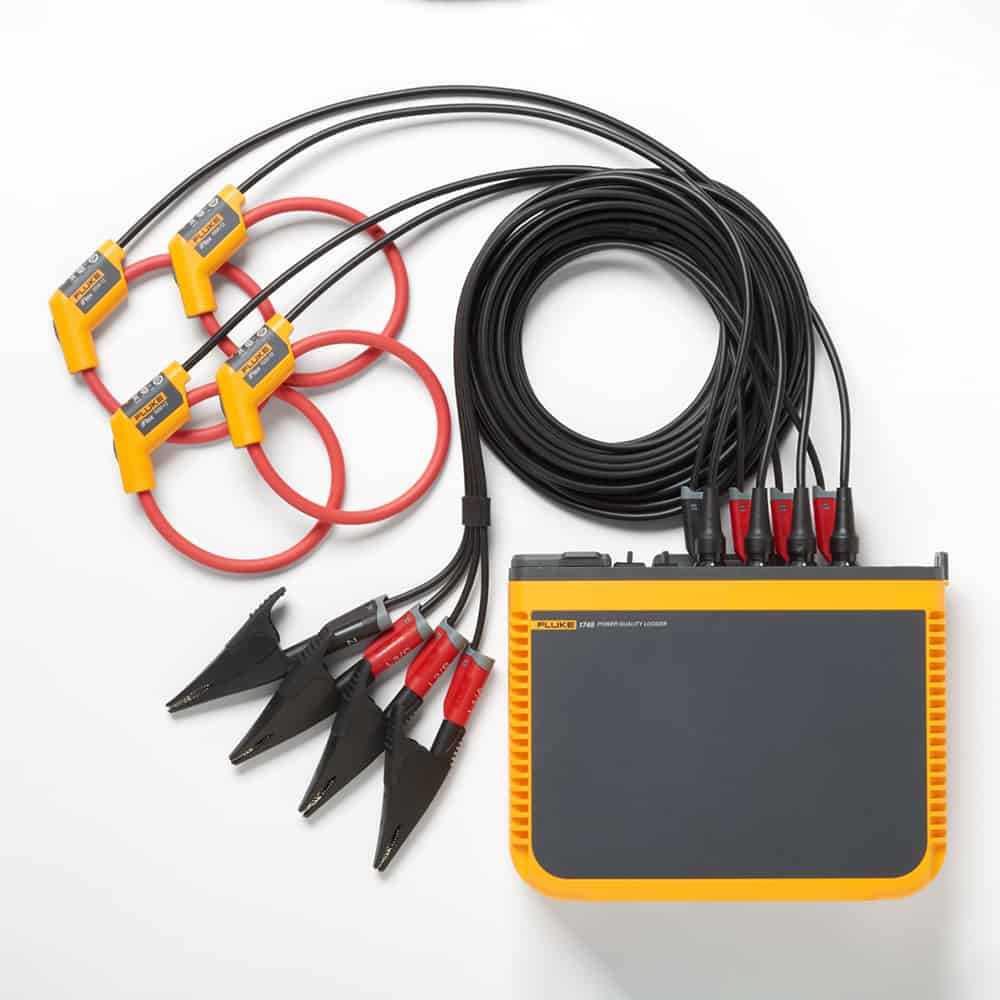

Voltage test lead (3-phase + N)
Alligator clips (blue) (x2)
Alligator clips (black) (x4)
Set of cable markers
Mains power cable
Mains adapter MA-C8
Set of 2 test leads (stack and non-stackable, blue, 7 in.)
Set of 2 test leads (non-stackable, blue, 79 in.)
USB Cable

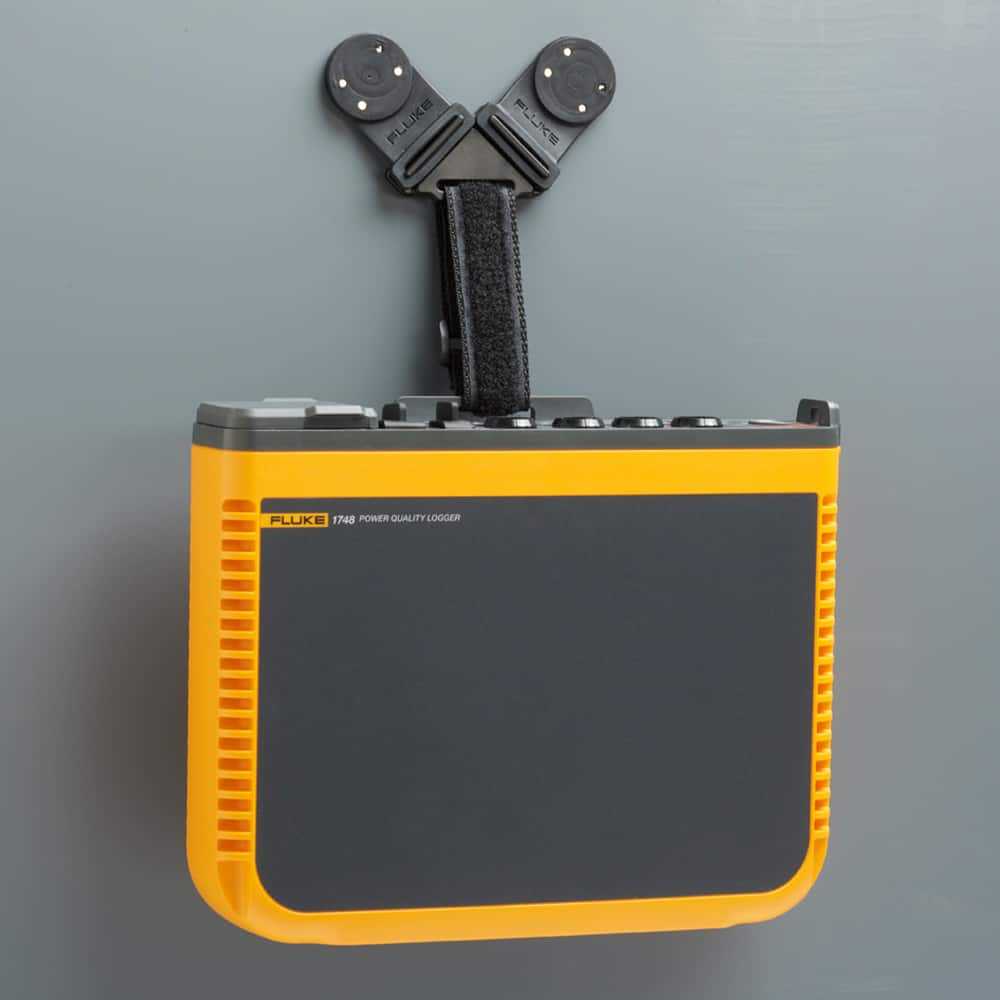

Magnet hanger kit
Magnet Probes (x4)

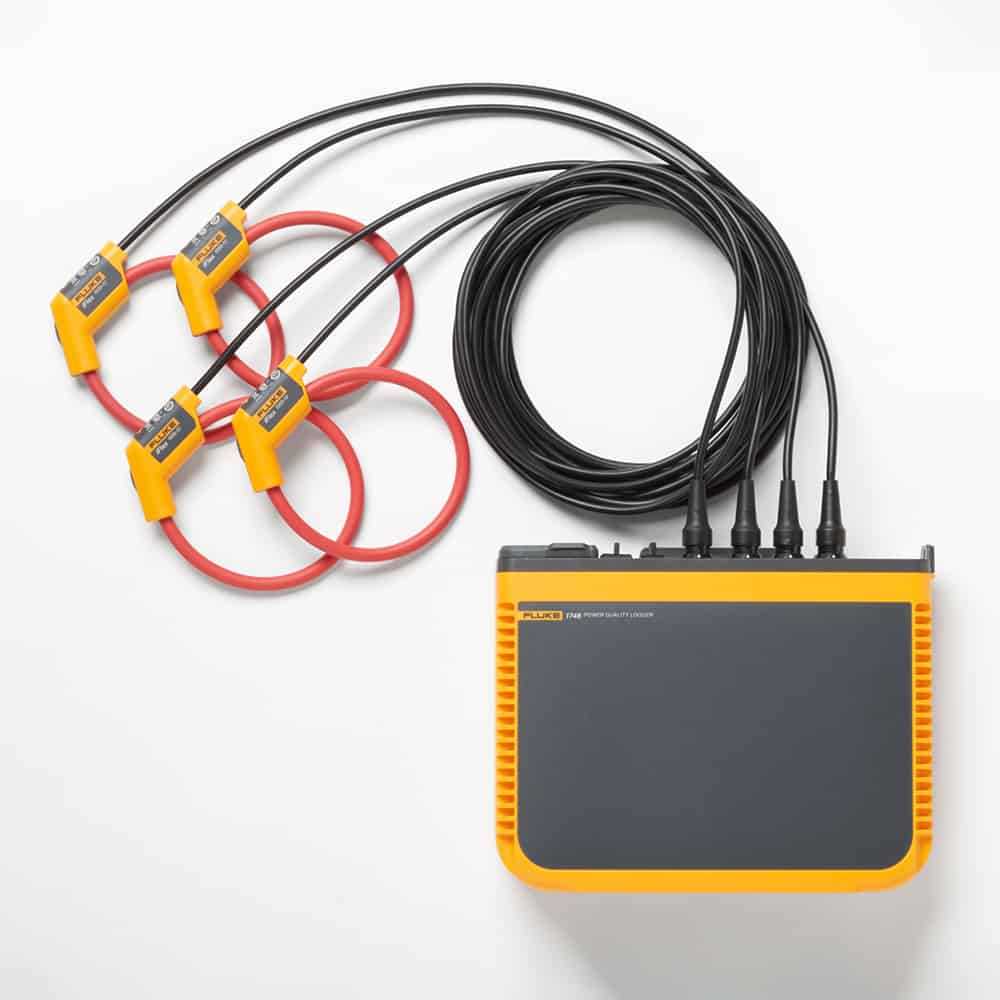

i17xx-flex3000IP 24 inch current probes (x4)
Specifications
Max. Accuracy Voltage Range / Resolution1000V / 0.1V
Max. Accuracy Frequency Range / Resolution42.5 Hz to 69 Hz / 0.01 Hz
Aux Input Range / Resolution± 10 V dc / 0.1 mV
Accuracy Voltage min/max1000V/ 0.1V
Voltage range100 V to 500 V using safety plug input when powering from the measurement circuit
Voltage range100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
Power consumption Maximum50 VA (max. 15 VA when powered using MA-C8 adapter)
Efficiency≥ 68.2 % (in accordance with energy efficiency regulations)
Maximum no-load consumption< 0.3 W only when powered using IEC 60320 input
Mains power frequency50/60 Hz ± 15 %
Battery Li-ion3.7 V, 9.2 Wh, customer-replaceable
On-battery runtimeTypically 4 hours
Charging time< 6 hours
Dimensions23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
Weight Instrument1 kg (2.2 lb)
Warranty2 years manufacturer's warranty
Max. Accuracy Voltage Range / Resolution1000V / 0.1V
Max. Accuracy Frequency Range / Resolution42.5 Hz to 69 Hz / 0.01 Hz
Aux Input Range / Resolution± 10 V dc / 0.1 mV
Accuracy Voltage min/max1000V/ 0.1V
Voltage range100 V to 500 V using safety plug input when powering from the measurement circuit
Voltage range100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
Power consumption Maximum50 VA (max. 15 VA when powered using MA-C8 adapter)
Efficiency≥ 68.2 % (in accordance with energy efficiency regulations)
Maximum no-load consumption< 0.3 W only when powered using IEC 60320 input
Mains power frequency50/60 Hz ± 15 %
Battery Li-ion3.7 V, 9.2 Wh, customer-replaceable
On-battery runtimeTypically 4 hours
Charging time< 6 hours
Dimensions23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
