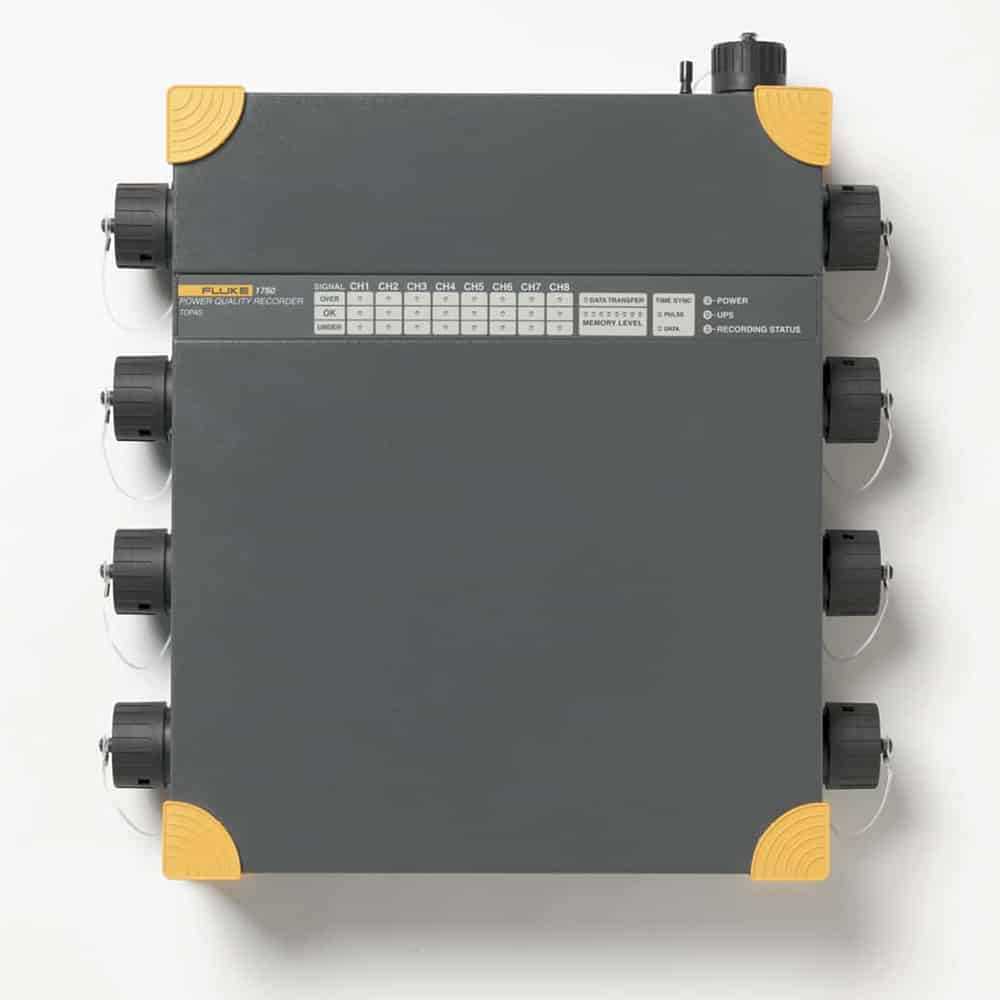

Fluke 1760
Fluke 1760
Fluke 1760

Three-Phase Energy Logger

Model # 1760
AED 86,100.00Incl. of VAT
Fluke Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25

Important Information: Ensure Genuine Products and Warranty Coverage

This item is eligible for return.
Orders over AED 99 ship free in the UAE.
Want to know when it's back in stock?

You may also like...

Product Information

Fluke 1760 Three-Phase Energy Logger is a product engineered with precision, delivering exceptional performance

with features like threephase power quality recorder fully compliant to IEC 61000430 ClassA and consistent with compliance testing, uses GPS time synchronization to correlate data with events or datasets from other instruments with precision and offers flexible and fully configurable thresholds and scale factors to allow users to define detailed criteria for detecting and recording disturbances.
Maintive brings to you 100% genuine Power Quality Loggers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1760 Three-Phase Energy Logger today at the best price only from Maintive.

Features

  • Three-phase power quality recorder fully compliant to IEC 61000-4-30 Class-A and consistent with compliance testing
  • Uses GPS time synchronization to correlate data with events or datasets from other instruments with precision
  • Offers flexible and fully configurable thresholds and scale factors to allow users to define detailed criteria for detecting and recording disturbances
  • Perform high-speed transient analysis and uncover root cause of equipment malfunction for later mitigation and predictive maintenance.
  • The fast transient option, with its 6000 V measurement range, allows capture of very short impulses such as capacitor switching and lightning strikes.
  • Allows complete measurements on dissimilar power systems.
  • Assess baseline power quality to validate compatibility with critical systems before installation and verify electrical system capacity before adding loads.
  • Provides continuous recording of voltage, current, power P, Q, S, power factor, kWh, flicker, unbalance, frequency, voltage and current harmonics to the 50th/Interharmonics, THD, and mains signaling
  • Includes comprehensive software that provides trend diagrams for root cause analysis, statistical summaries, report writing, and real-time data monitoring in the online mode
  • Allows quick plug and play setup with automatic sensor detection. Sensors are instrument powered, eliminating the need for batteries
  • Delivers reliable testing under nearly any conditions with rugged insulated housing and a solid state design that has no rotating components

Items Included

  • Input-channels (4 currents/4 voltages or 8 voltages)
  • Internal Flash-memory 2 GB
  • PQ Analyze software on CD-ROM
  • Ethernet cable for network connection (1)
  • Crosslink Ethernet cable for direct PC connection (1)
  • Mains cable (1)
  • Operational manuals
  • Carrying bag
  • Voltage probes qty 4 (600 V for INTL set 1000 V for US set)
  • Current probes qty 4 (Dual-range flexible current probes 1000 A / 200 A AC)
  • GPS time sync receiver

Specifications

  • Quality systemdeveloped, manufactured as per ISO 9001:2000
  • Operating temp. range0°C to +50°C; 32°F to +122°F
  • Operating temp. range0°C to +50°C; 32°F to +122°F
  • Storage temp. range20°C to +60°C; -4°F to 140°F
  • Reference temperature23°C ±2 K; 74°F ±2 K
  • Climatic classB2 (IEC 654-1), -20°C to +50°C; -4°F to +122°F
  • Environment temperature23°C ±2 K ; 74°F ±2 K
  • Power supply230 V ±10%
  • AC Range83 V to 264 V, 45 to 65 Hz
  • Dimensions (H x W x D)325 x 300 x 65 mm; 2.8 x 11.8 x 2.6 in
  • Warranty2 years manufacturer's warranty
