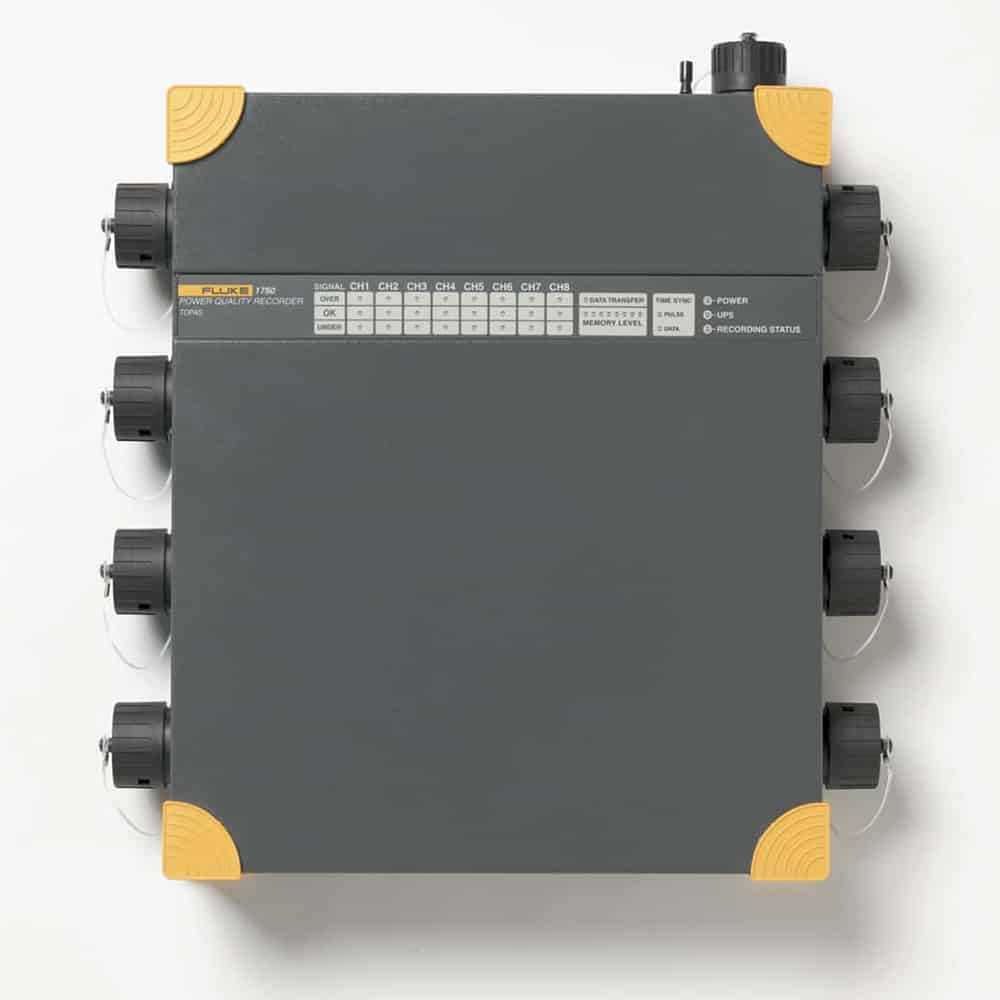

Fluke 1760TR Three-Phase Power Quality Recorder is a product engineered with precision, delivering exceptional performance
with features like conduct tests according to the stringent international IEC 61000430 ClassA standard, correlate data with events or datasets from other instruments with precision and flexible and fully configurable thresholds and scale factors allow user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
Maintive brings to you 100% genuine Power Quality Loggers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1760TR Three-Phase Power Quality Recorder today at the best price only from Maintive.
Features
Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
Correlate data with events or datasets from other instruments with precision
Flexible and fully configurable thresholds and scale factors allow user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
Records the beginning and end of interruptions and outages to help determine the cause
10 MHz, 6000 Vpk waveform capture shows a detailed picture of even the shortest event
2 GB data memory enables detailed, simultaneous recording of numerous power parameters for long periods of time
Included comprehensive software provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
Plug and play allows quick setup with automatic sensor detection
Insulated housing and a solid state design with no rotating components enable reliable testing under nearly any conditions
Items Included
8 input-channels (4 currents/4 voltages or 8 voltages)
Internal Flash-memory 2 GB
PQ Analyze software on CD-ROM
Ethernet cable for network connection (1)
Crosslink Ethernet cable for direct PC connection (1)
Mains cable (1)
Operational manuals
Carrying bag
Fast transient analysis up to 10 MHz
Voltage probes, qty 4 (600 V for INTL set, 1000 V for US set)
Current probes, qty 4 (Dual-range flexible current probes 1000 A / 200 A AC)
GPS time sync receiver
Specifications
Operating temp. range0°C to +50°C; 32°F to +122°F
Working temp. range-20°C to +50°C; -4°F to +122°F
Storage temp. range20°C to +60°C; -4°F to 140°F
Reference temperature23°C ± 2 K; 74°F ± 2 K
Environment temp.23°C ± 2 K; 74°F ± 2 K
Power supply230 V ± 10%
Power frequency50 Hz / 60 Hz
Data memory2 GB Flash memory depending on model
Dimensions (H x W x D)325 x 300 x 65 mm (2.8 x 11.8 x 2.6 in)
Warranty2 years manufacturer's warranty
Operating temp. range0°C to +50°C; 32°F to +122°F
Working temp. range-20°C to +50°C; -4°F to +122°F
Storage temp. range20°C to +60°C; -4°F to 140°F
Reference temperature23°C ± 2 K; 74°F ± 2 K
Environment temp.23°C ± 2 K; 74°F ± 2 K
Power supply230 V ± 10%
Power frequency50 Hz / 60 Hz
Data memory2 GB Flash memory depending on model
Dimensions (H x W x D)325 x 300 x 65 mm (2.8 x 11.8 x 2.6 in)
