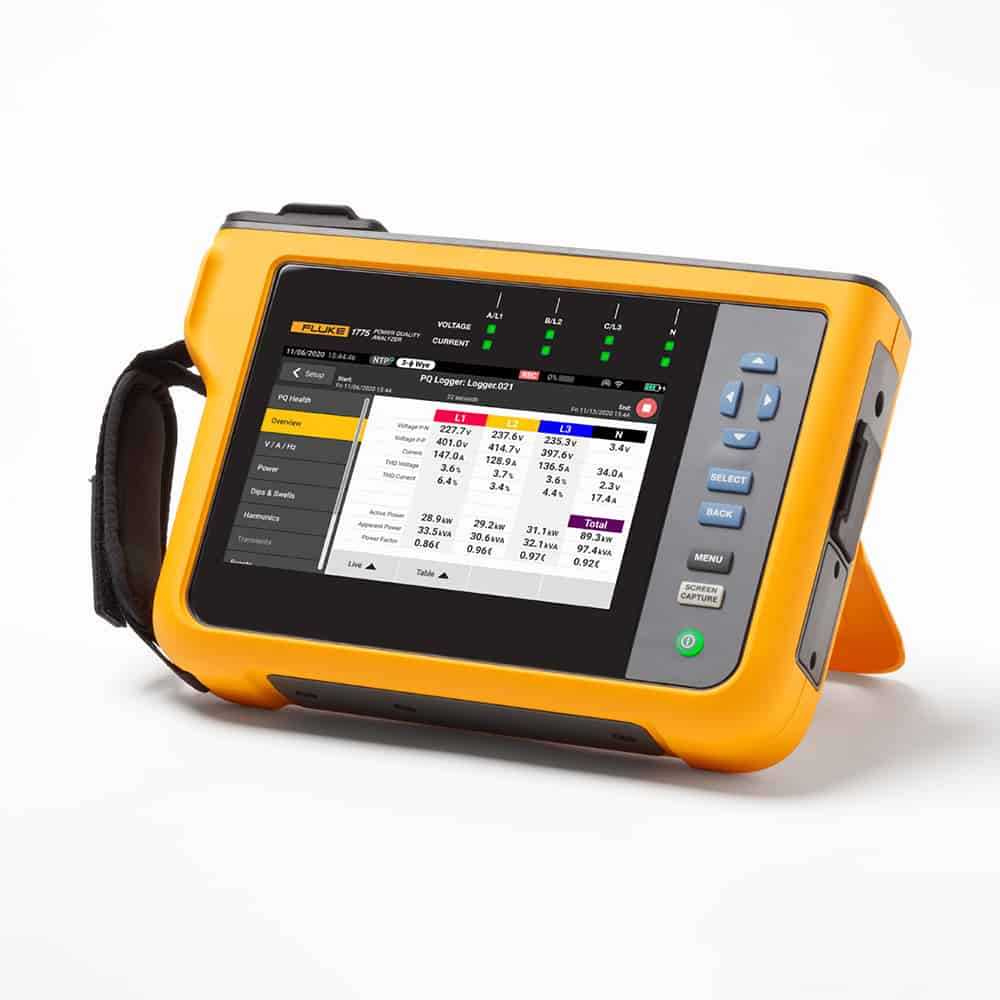

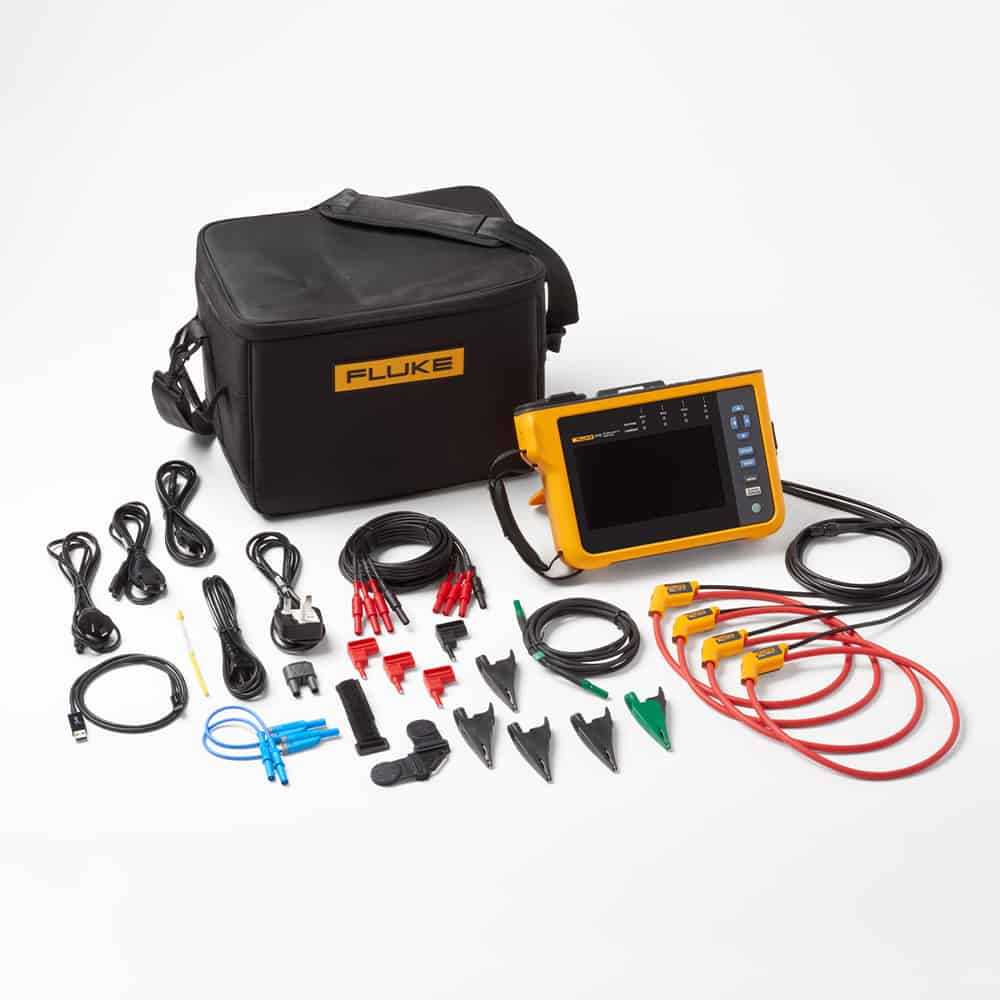

Fluke 1775 3-Phase Power Quality Analyzer, 1MS/s is a product engineered with precision, delivering exceptional performance
with features like automatically measure power and power quality parameters, ataglance power quality health for faster troubleshooting and easily view VAHz power dips swells and harmonics data.
Maintive brings to you 100% genuine Power Quality Analyzers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1775 3-Phase Power Quality Analyzer, 1MS/s today at the best price only from Maintive.
Features
Automatically measure power and power quality parameters

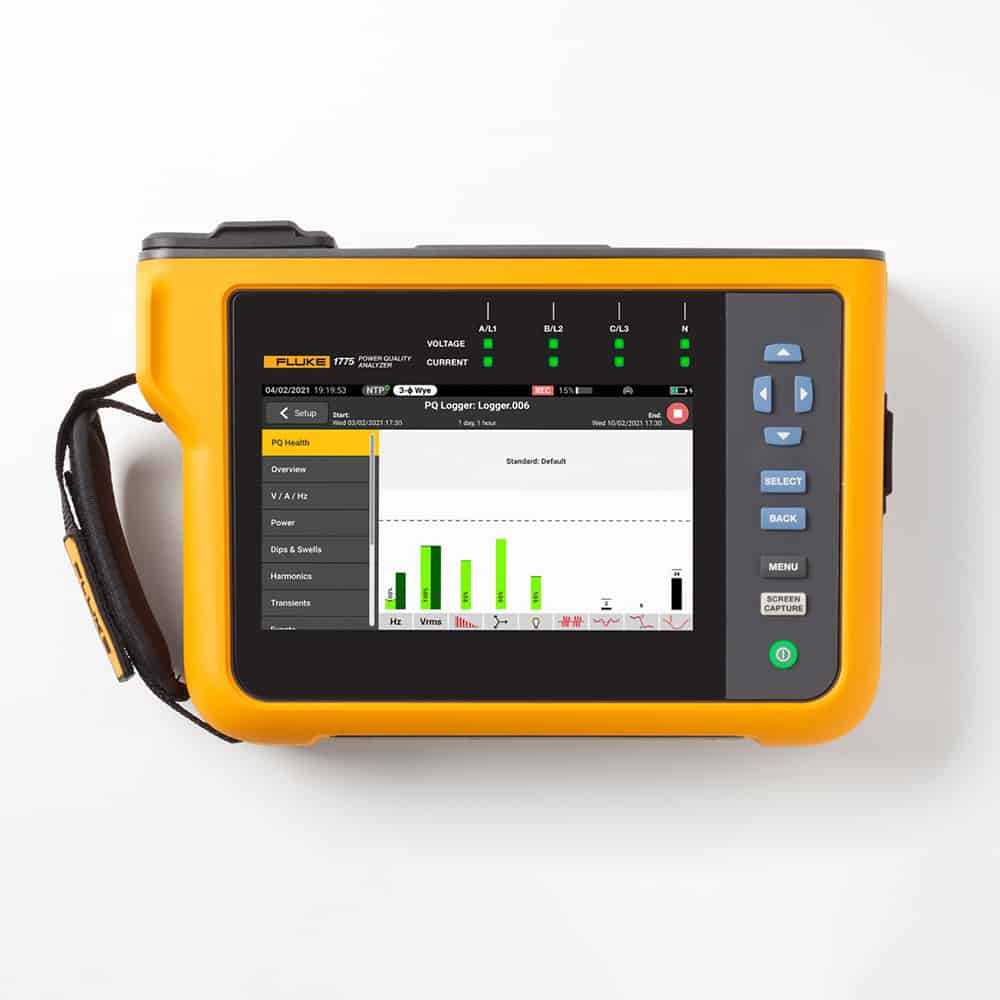

At-a-glance power quality health for faster troubleshooting
Easily view V/A/Hz, power, dips, swells, and harmonics data
Capture high-speed transients up to 8 kV
Power directly from measurement circuit without a line cord
Energy surveys and load testing
Harmonic surveys
Nuisance circuit breaker tripping
Electric utility power quality surveys
Discovery of equipment failures caused by 8kV microsecond transients
Specifications
Number of inputs4 inputs, 3 phases and neutral referenced to PE (5 connectors)
Measurement category1000 V CAT III / 600 V CAT IV
Maximum input voltage1000 V rms / 1000 V dc (1700 Vpk)
Input impedance10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE
BandwidthDC to 30 kHz for PQ measurements, excluding transients
Resolution24-bit synchronous sampling
Sampling frequency80 kS/s at 50/60 Hz
Operating temperature range-10 °C to 50 °C
Storage temperature range-20 °C to 60 °C
IP RatingIEC 60529: IP50
Warranty2 years manufacturer's warranty
