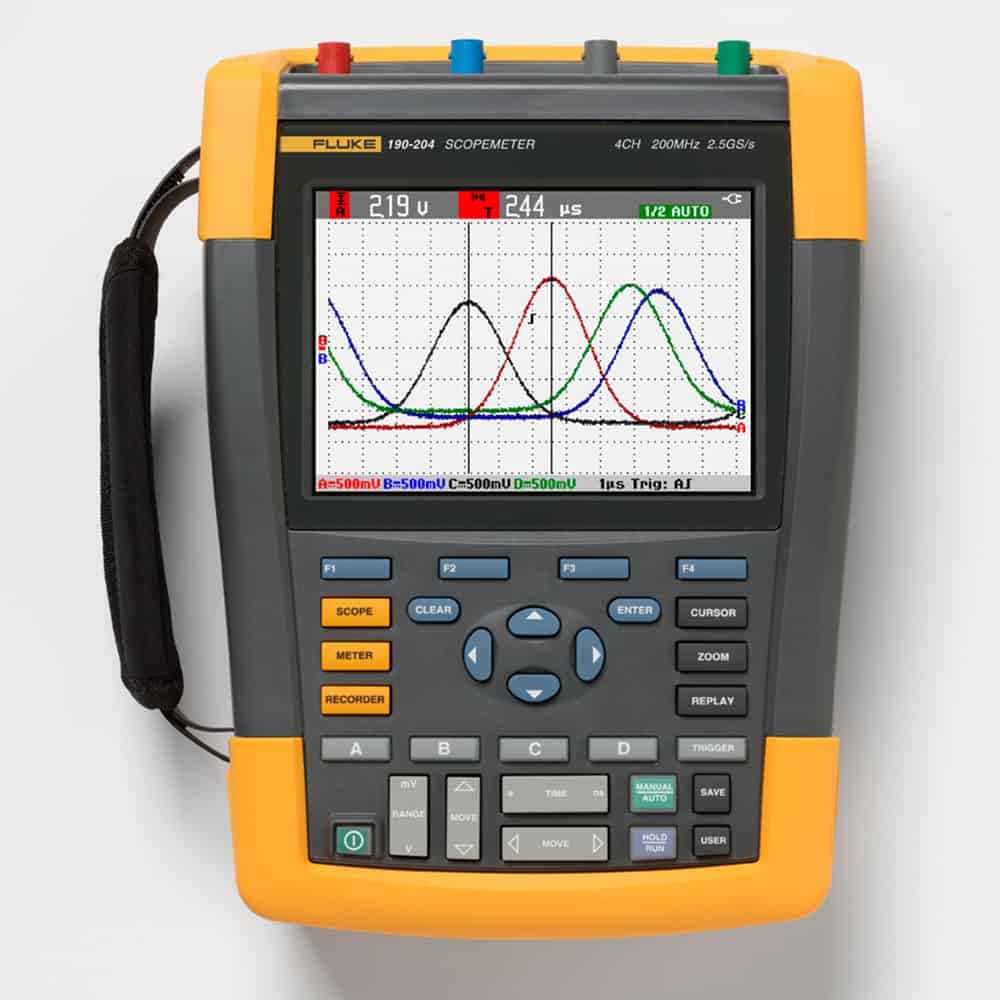

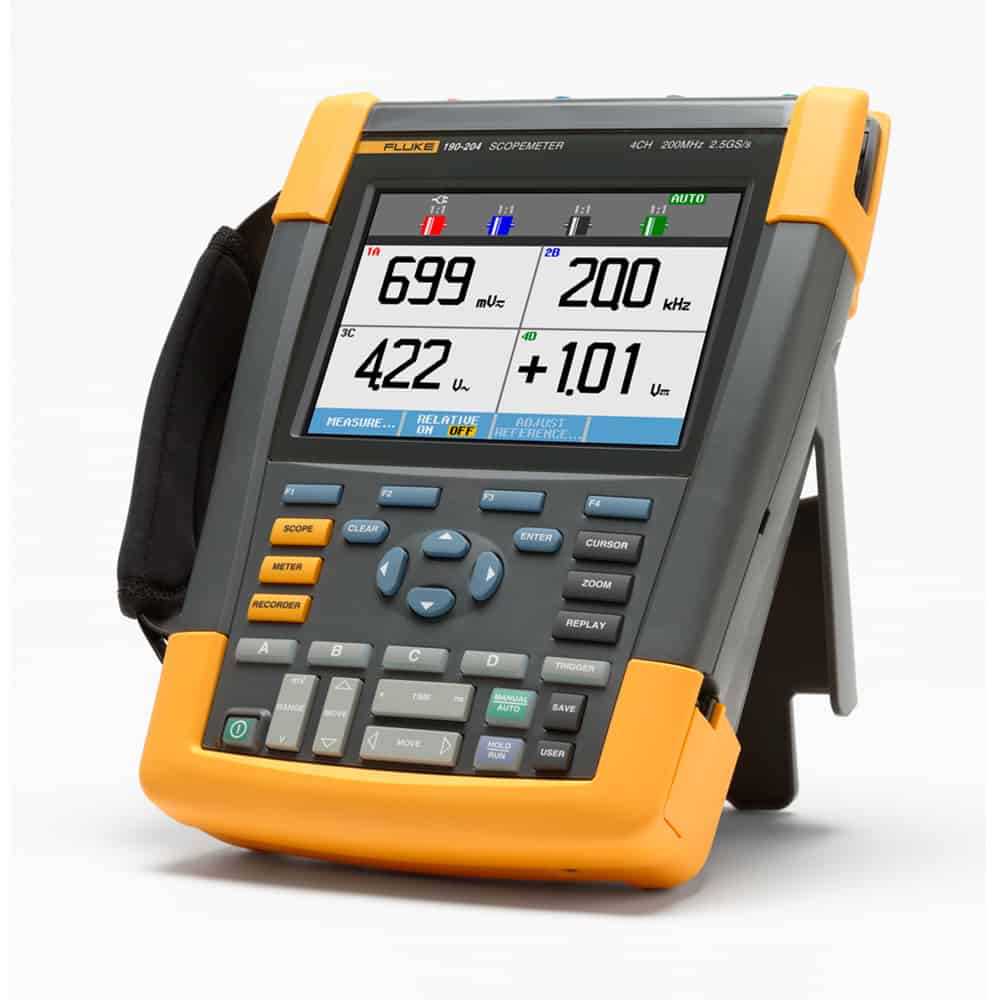

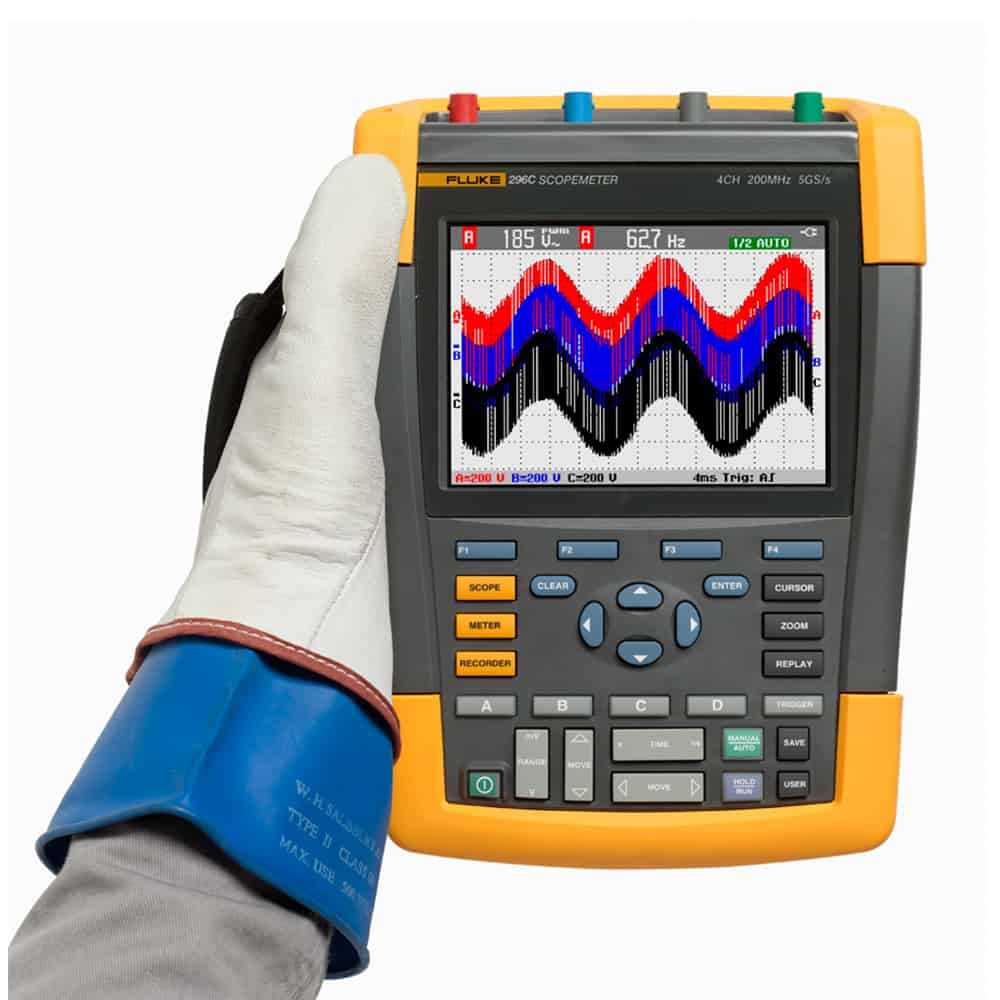

Fluke 190-104/S Scopemeter® Oscilloscope with FlukeView Software, 4 Channel, 100 MHz is a product engineered with precision, delivering exceptional performance
with features like four electrically isolated inputs with SCC290 Kit, cAT III 1000 V CAT IV 600 V safety rated and 100 MHz bandwidth model.
Maintive brings to you 100% genuine Portable Oscilloscopes from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 190-104/S Scopemeter® Oscilloscope with FlukeView Software, 4 Channel, 100 MHz today at the best price only from Maintive.
Features
Four electrically isolated inputs with SCC-290 Kit
CAT III 1000 V / CAT IV 600 V safety rated
100 MHz bandwidth model
1.25 GS/s real time sampling
Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
Dedicated 5000 Count digital multimeter
Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
ScopeRecord roll mode, capture waveform sample data for up to 48 hours
TrendPlot, trend measurement readings for up to 22 days

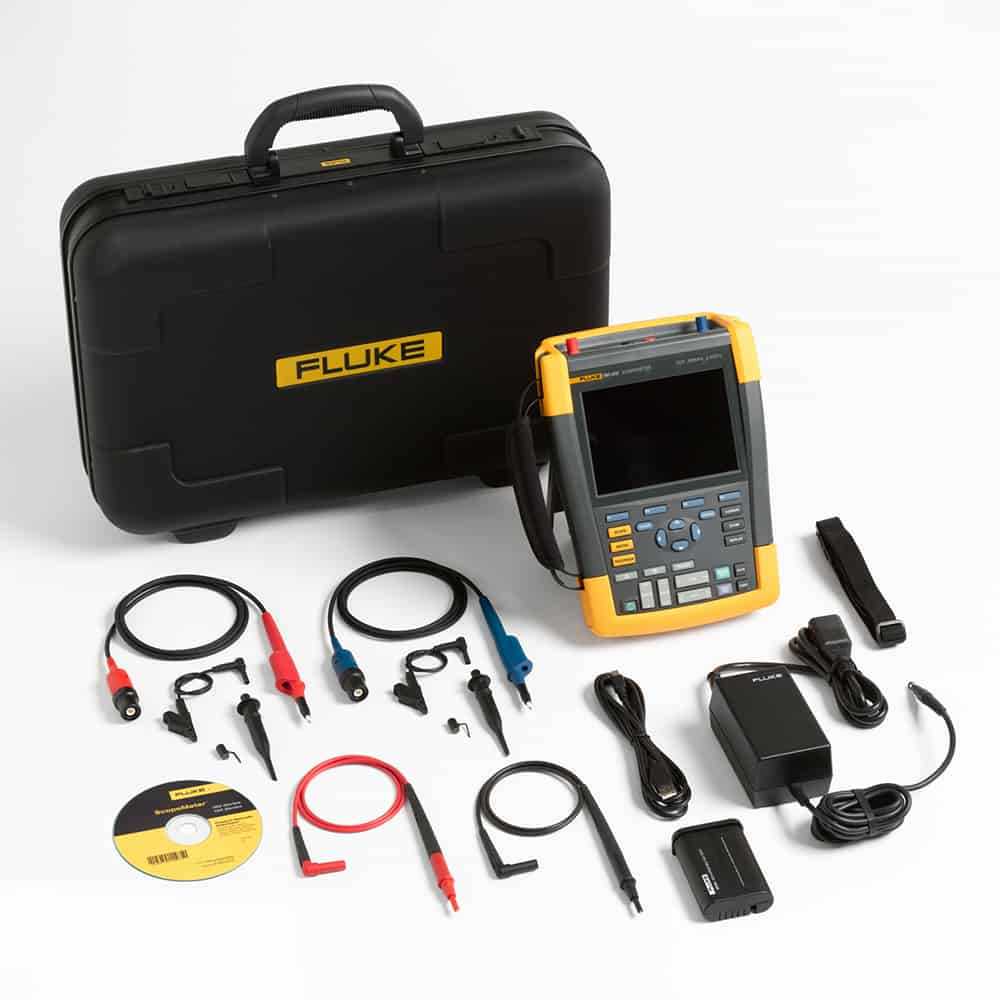

Items Included
Color ScopeMeter 100 MHz 4 channels plus DMM/Ext.input with SCC-290 Kit
Specifications
Bandwidth100 MHz
Number of channels4 channels
Real-time sample rate1.25 GS/s
Input VoltageCAT III 1000 V/CAT IV 600 V rated
Voltage Range500 mV, 5 V, 50 V, 500 V, 1,000 V
CurrentA dc, A ac, A ac+dc using an optional current clamp or shunt; Scaling factors: 0.1 mV/A, 1 mV/A to 100 V/A and 400 mV/A
Operating temperature0 °C to 40 °C Including Batteries
Storage temperature-20 °C to +60 °C
Size270 x 190 x 70 mm
Warranty3 years manufacturer's warranty
Bandwidth100 MHz
Number of channels4 channels
Real-time sample rate1.25 GS/s
Input VoltageCAT III 1000 V/CAT IV 600 V rated
Voltage Range500 mV, 5 V, 50 V, 500 V, 1,000 V
CurrentA dc, A ac, A ac+dc using an optional current clamp or shunt; Scaling factors: 0.1 mV/A, 1 mV/A to 100 V/A and 400 mV/A
Operating temperature0 °C to 40 °C Including Batteries
Storage temperature-20 °C to +60 °C
Size270 x 190 x 70 mm
Warranty3 years manufacturer's warranty
